Air Dancer Product

Overview

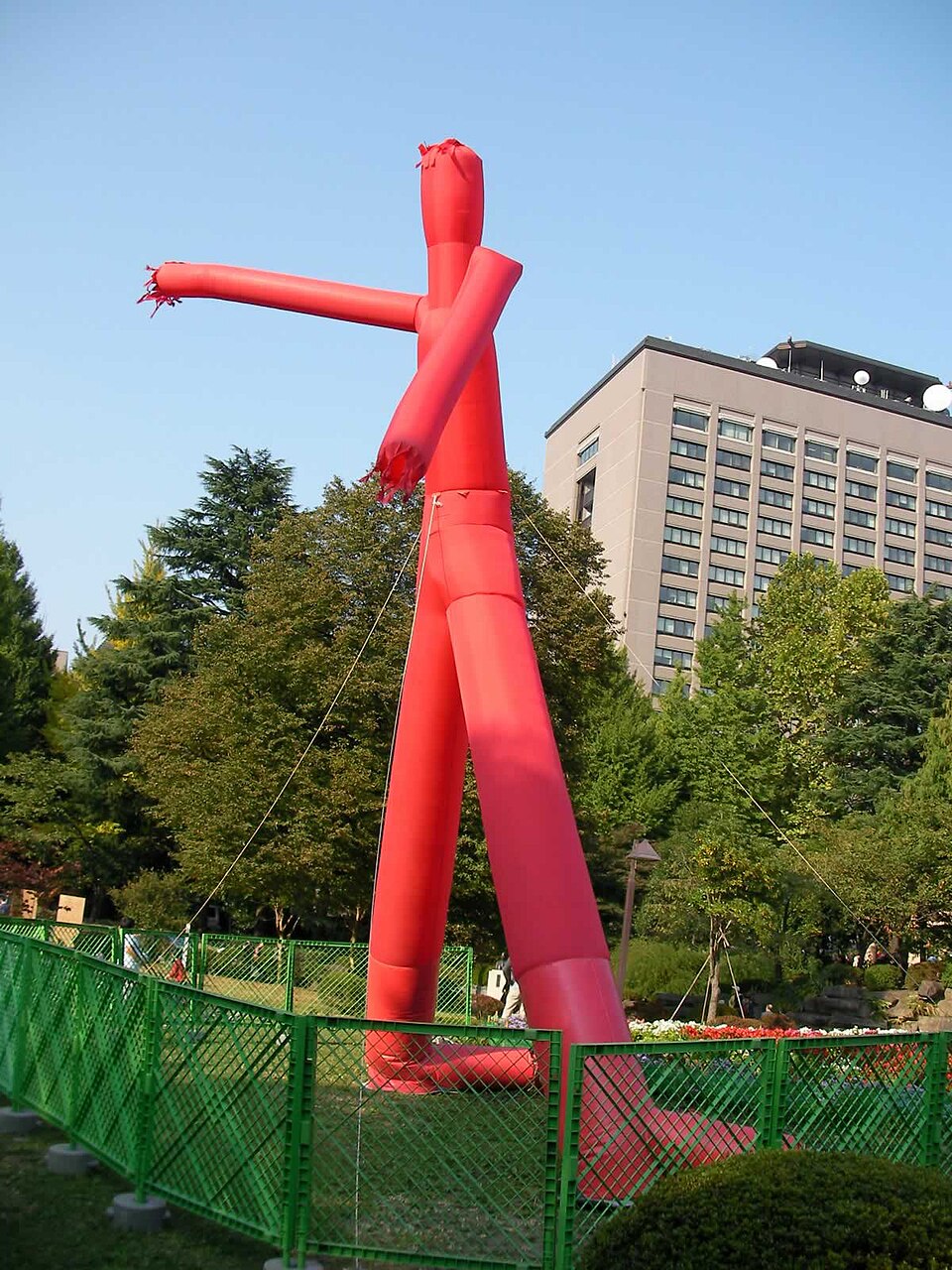

The air dancer is an inflatable advertising figure composed of a continuous nylon ripstop tube animated by oscillating air pressure. A centrifugal blower motor pressurizes the tube base, and internal baffles and inlets create cyclical pressure waves that propagate upward, causing the fabric to undulate and wave. The tube is anchored at its base by rubber feet and stabilized against wind by guy-lines with turnbuckle tensioners. Electric blower control includes soft-start and thermal protection, making the device deployable outdoors at events, retail locations, and car dealerships. The oscillation motion requires no mechanical articulation; it emerges purely from air dynamics and tube geometry, allowing the design to be maintenance-light and capable of extended operation.

How it works

Air from the Blower Base Assembly is routed through the Air Inlet Manifold, which houses the Oscillation Baffle. The baffle geometry creates pressure surges that drive air upward through the Fabric Tube in waves. As pressure builds and then vents through secondary ports, the tube fabric oscillates, creating the illusion of continuous wave motion. The Fabric Tube is engineered from heat-sealed nylon ripstop with Seam Reinforcement at stress points; seams withstand the internal 250–500 Pa cycling indefinitely. Foot Assembly units anchor the tube base, and Guy-Line Kit ropes tie off to ground anchors, resisting lateral wind loads.

The Power Supply Control control box houses a Relay for on/off switching, a Run Capacitor for motor starting, and a Thermal Fuse that cuts power if motor temperature exceeds 130°C. The Blower Motor runs continuously while energized, delivering 0.75–1.1 kW of axial airflow into the manifold. Intake air passes through the Intake Filter, a disposable foam element preventing dust and debris from damaging the fan impeller.

Design considerations

Oscillation frequency is governed by baffle geometry and blower RPM, typically 1–3 Hz for retail applications. Higher pressures (approaching 500 Pa) produce faster, more aggressive waves but increase seam stress and fan power draw. Lower pressures (250 Pa) reduce noise and power consumption but may appear sluggish in high winds. Guy-lines are essential: without them, gusts exceeding 15 mph cause the tube to bow sideways and risk tearing at the base fittings. Anchor points are spaced evenly around the tube perimeter and tensioned equally to prevent asymmetric loading.

Maintenance is minimal: check Intake Filter monthly (replace if clogged), inspect Fabric Tube seams for cracks using a soapy water spray, tighten the Run Capacitor leads annually, and lubricate guy-line Turnbuckle threads if corrosion appears. Motor brushes in the Blower Motor typically last 2000–3000 operating hours before requiring replacement.

Material and thermal

The nylon ripstop fabric is rated for -10°C to +50°C ambient and resists UV degradation for approximately three years of continuous outdoor exposure. Higher temperatures (above 50°C) soften the heat-sealed seams; continuous operation in direct sunlight should be limited in very hot climates. The Motor Housing is aluminum and anodized for corrosion resistance. The Relay and Run Capacitor are rated for 50°C maximum enclosure temperature; the Power Supply box includes ventilation holes.

Field installation

Typical setup requires 2–3 hours. The Fabric Tube is unrolled and laid flat; Foot Assembly brackets are bolted to the base tube fitting. The Blower Base Assembly is positioned adjacent and secured via duct coupling. The Power Supply Control control box is mounted on a nearby post or tripod and wired to mains power. Guy-Line Kit ropes are tied to the anchor brackets and secured to ground stakes, with Turnbuckle tensioning set so the rope supports the tube against swaying but does not restrict oscillation. The motor is energized; oscillation should begin within 10 seconds and maintain steady amplitude.
