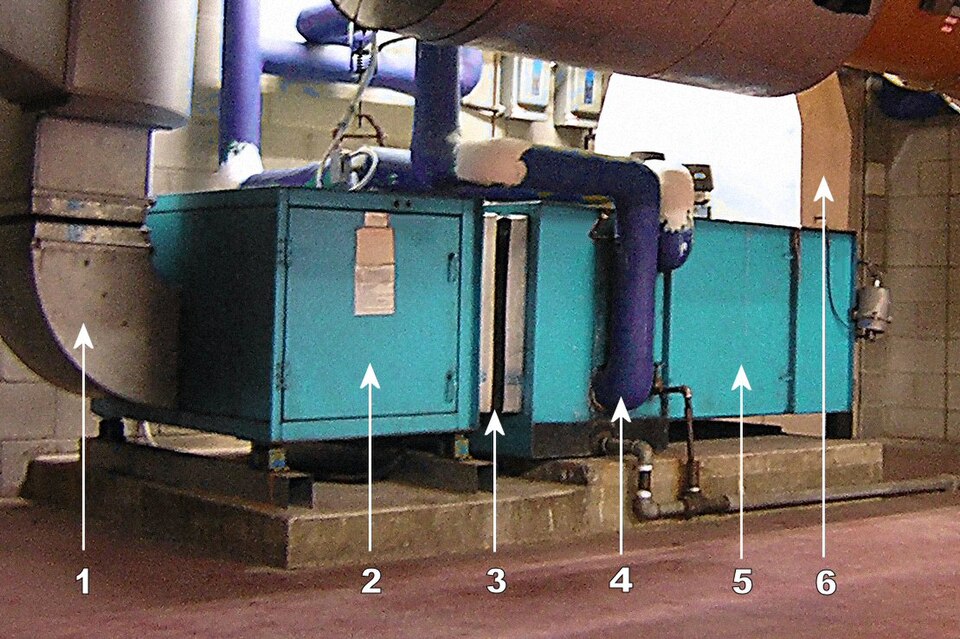

Large Air Handling Unit Product

Overview

Large air handling units (AHUs) form the core of centralized HVAC systems in commercial buildings, hospitals, and industrial facilities. These modular assemblies combine supply and return air movement, conditioning, and distribution into a single integrated package mounted typically in a mechanical room, rooftop, or external equipment yard. The AHU pulls outdoor air and recirculated return air through dampers and filters, passes it across heating or cooling coils, and pressurizes it to the building's ductwork distribution network at capacities ranging from 5,000 to 30,000 CFM and beyond.

The unit operates in a draw-through configuration: outdoor air is pulled in through louvers and dampers, mixed with return air from occupied spaces, filtered through multi-stage media, cooled or heated by coil banks, and then accelerated by a centrifugal supply fan into the main supply duct. Simultaneously, a return air fan pulls air back from spaces and recirculates or exhausts it, completing the cycle. Temperature and humidity sensors feeding a programmable controller automatically sequence fan speeds, damper positions, and coil valve openings to maintain setpoint conditions with minimal energy waste.

How it works

Air intake and mixing: Outdoor air enters through a louver and damper assembly controlled by the economizer logic. An enthalpy sensor continuously compares the outdoor air condition to the return air condition; if outdoor air is less humid or cooler, the economizer opens the outdoor damper and closes the return damper to maximize free cooling or dehumidification. Return air from building spaces flows back through a return damper and mixes with outdoor air in the incoming stream.

Filtration: Pre-filters remove larger particles (dust, pollen, hair), while main stage filters (MERV 8–13) or HEPA stages capture fine particulates down to 0.3 microns. A differential pressure sensor monitors filter loading and triggers alerts when pressure drop exceeds the rated limit, indicating service is needed.

Conditioning: The mixed air stream flows across cooling and heating coil banks in series or parallel. The cooling coil is fed with chilled water from a central plant chiller or an integral DX refrigerant circuit; the heating coil receives hot water or electric heating elements. Both coil circuits are modulated via three-way isolation and balancing valves controlled by the PLC based on supply air temperature feedback.

Supply fan: A centrifugal blower with backward-curved impeller creates the pressure rise needed to overcome ductwork resistance and deliver air to the building. Motor speed is modulated (via soft-start or VFD) to match demand and minimize fan power consumption. Dampers in the supply path offer additional volume control.

Return fan: A second smaller centrifugal fan pulls air out of the building back to the AHU, maintaining space pressure balance. Shut-off dampers in the return path prevent backflow.

Control logic: A PLC monitors supply temperature (via RTD or thermistor), humidity (via capacitive sensor), and duct static pressure. On a falling supply temperature setpoint below target, the heating valve opens; if supply temperature rises above setpoint, the cooling valve opens. Damper positions are adjusted to balance outdoor/return air fractions and optimize economizer savings. Fan speeds ramp smoothly to maintain setpoint static pressure, reducing hunting and energy waste.

Subsystems

Supply Fan Assembly drives all distribution airflow and is the largest consumer of electrical energy in most AHU installations. Filter Section Assembly protects downstream coils and building occupants from particulates and must be regularly inspected and changed. Coil Bank Assembly provides the thermal energy transfer and is sized to match the building cooling and heating load. Damper System enable fine-grained air distribution and mixing to avoid stratification. Economizer Assembly continuously optimizes outdoor air fraction to reduce coil load during mild or dry weather.

Common failures

Bearing wear in the supply fan impeller shaft typically manifests as increasing vibration and a grinding noise, requiring bearing and seal replacement. Coil fouling from sediment, biological growth, or corrosion reduces heat transfer and must be chemical or mechanical cleaned. Damper blades can stick due to rust or debris accumulation, reducing response to control signals. Filter media tears or seals fail, allowing bypass and reduced indoor air quality.

Installation and maintenance

AHUs are typically delivered as factory-assembled modules and bolted into mechanical rooms or outdoor pads. Field work involves connecting ductwork, piping (chilled water and condensate), electrical power, and control wiring. Annual preventive maintenance includes filter change, coil inspection and cleaning, bearing lubrication, and damper and valve function checks. The unit should be commissioned with ductwork blower-door testing to verify no air leakage and fan curve performance.
