Overview

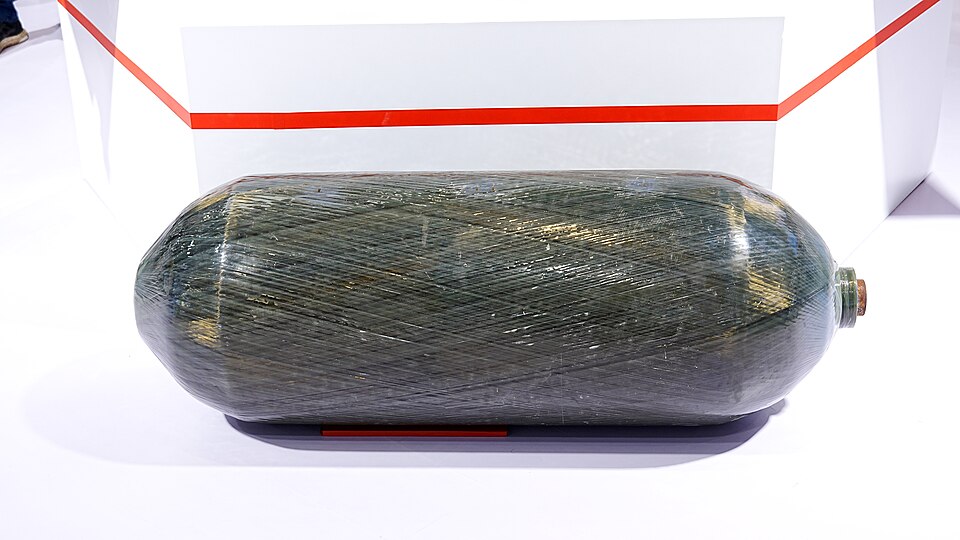

An air receiver tank is a cylindrical pressure vessel that stores compressed air and stabilizes system pressure. The compressor pumps air into the tank; as pressure rises, the Safety Relief Valve maintains a cap at about 10–11 bar. Between compressor cycles, the tank supplies production air to pipelines, pneumatic tools, and machinery. Without a receiver, every sudden demand spike would cause the compressor to hunt (cycling on/off rapidly), wasting energy. The tank provides a buffer of pressurized air that smooths demand, allows the compressor to run longer cycles, and reduces energy consumption by 15–30%.

How it works

The Inlet Port Assembly receives air from the compressor. Air enters the top of the tank, pushing against the air already inside. The pressure rises until it reaches the setpoint of the Safety Relief Valve, typically 10 bar. At this point, the valve's Relief Poppet, balanced by the Relief Spring, begins to crack open, venting excess pressure to atmosphere. The system is now "at pressure," and the compressor unloads (switches to no-load mode or shuts off, depending on design).

As production equipment draws air from the Outlet Port Assembly, pressure slowly drops. The outlet includes a Outlet Dip Tube, a long tube extending down from the top connection to the bottom-most point of the tank. This tube draws dry air from the top of the tank; moisture—having condensed on the Tank Shell interior—settles at the bottom where it cannot be sucked into the outlet. The Internal Baffle further improves settling by slowing the air velocity inside the tank.

When pressure falls to the compressor's cut-in setpoint (typically 7–8 bar), the compressor starts again, re-filling the tank to 10 bar. This on/off cycling may occur several times per hour depending on demand.

Moisture management

Compressed air is hot when it exits the compressor. Inside the cool tank, it cools and water vapor condenses into liquid. The Drain Cock—a ball valve on the bottom—must be opened daily (or weekly) to drain accumulated water. Some modern plants use automatic Drain Solenoids that open periodically (solenoid timer-controlled), purging water without manual intervention. If water is not regularly drained, it will eventually be sucked into the production system, corroding pneumatic tools and clogging valve orifices.

A downstream FRL unit (filter-regulator-lubricator) provides additional insurance, removing any residual droplets.

Design and certification

The Tank Shell is welded (not bolted) for maximum reliability. The Top Head and Bottom Head are dished (slightly concave outward), which distributes pressure stress more evenly than flat heads and reduces the required wall thickness.

Pressure vessels are designed to ASME Section VIII Division 1 or equivalent. A 10 bar rated tank is hydrostatically tested to 15 bar (1.5× working pressure) at the factory. A nameplate on the tank lists the working pressure, test pressure, capacity, and manufacturing date. Periodic inspection (typically every 2–5 years depending on jurisdiction) is required to verify corrosion, weld integrity, and valve function.

Sizing

Tank size is chosen based on average compressed air demand and acceptable pressure swing. A small plant with occasional pneumatic tool use might use a 50 L tank; a large assembly line with continuous cylinder operation might use 500+ L. A common rule of thumb: reserve 3–5 seconds of production demand in the tank. This provides enough buffer to absorb a sudden spike in demand without causing the compressor to struggle or pressure to sag below the minimum required by pneumatic equipment.

Larger tanks also provide better cooling (air residence time is longer, so more water condenses) and smoother pressure.
