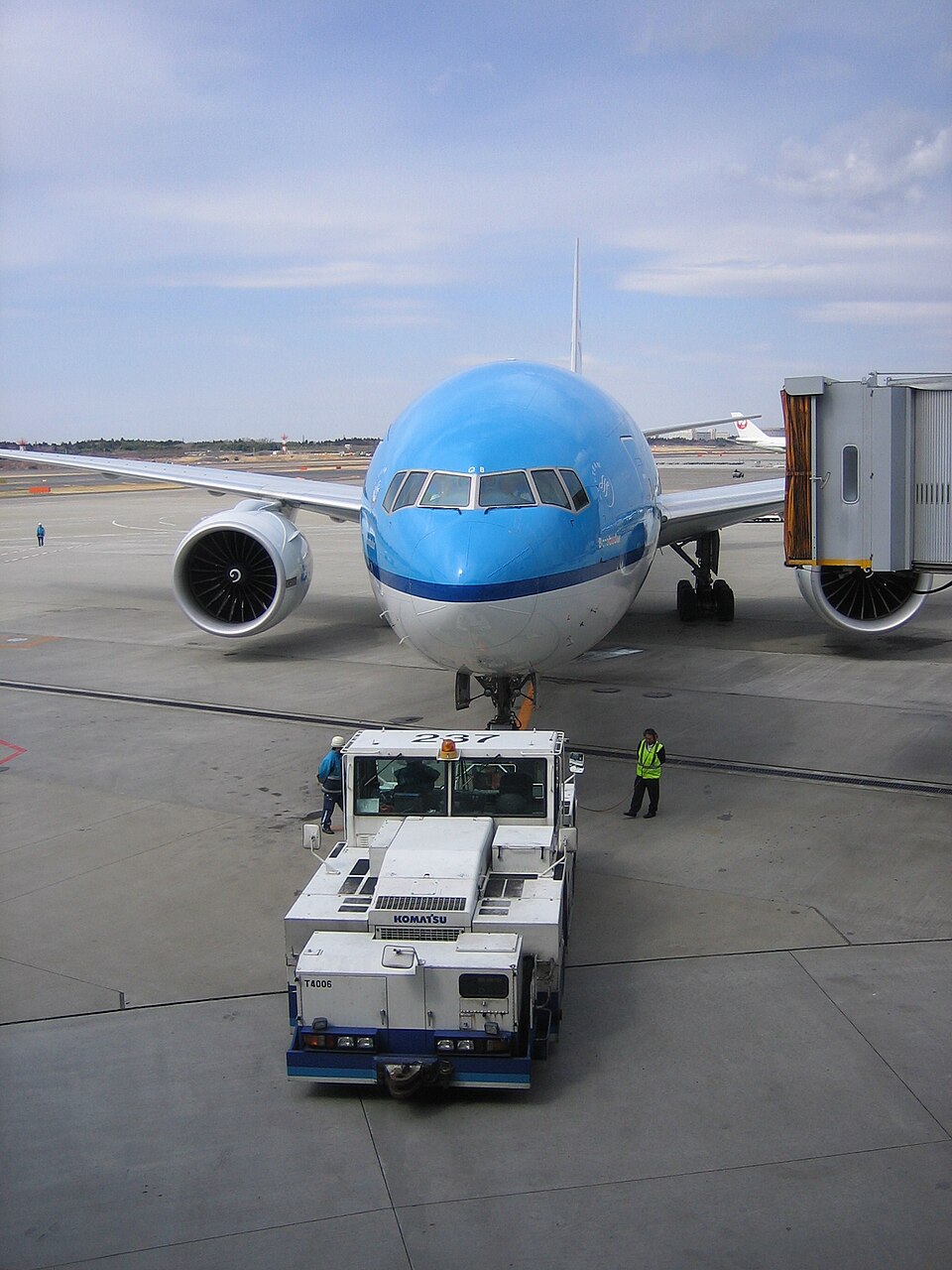

Conventional Tow Tractor Product

Overview

A conventional aircraft tow tractor (or tug) couples to the aircraft nose linkage via a towbar, exerting a pull force to move parked aircraft into position for pushback, taxi, or repositioning on the apron. Unlike pushback tugs (which push), conventional tractors always pull aircraft backward or forward.

Conventional tractors are mechanically simpler than pushback tugs: they employ mechanical transmissions (not hydrostatic), towbars (not hydraulic cradles), and lower-speed operation (5–15 km/h on apron vs. 1–3 km/h pushback). This simplicity reduces cost (40–50% cheaper than pushback) and maintenance, making them dominant at secondary airports and regional carriers.

Chassis & Ballasting

The Chassis & Powertrain is a heavy-duty 6×4 or 6×6 truck with turbocharged diesel engine (200–300 kW). The tractor achieves towing capacity (150–250 ton pull) primarily through ballasting (adding weight) and friction.

Traction principle:

• Towing force (pull) = coefficient of friction × normal load × g.
• Concrete apron coefficient: μ ≈ 0.6–0.8 (dry).
• Example: 100 ton tractor weight × 0.7 friction × 9.81 m/s² = 691 kN ≈ 70 ton max pull.
• With 50 ton ballast: 150 ton total weight × 0.7 = 1030 kN ≈ 105 ton pull.

The Ballast System (lead or cast iron ingots, distributed low in frame) shifts 70–80% of GVWR to rear axles, maximizing rear-wheel contact force (where engine power is transmitted). Insufficient ballast results in wheel slip (tractor spins wheels, cannot overcome aircraft inertia); excessive ballast reduces braking efficiency and fuel economy.

Ballast weight distribution:

• Front axle: 20–30% (needed for steering control, preventing shimmy).
• Rear axles: 70–80% (power transmission, traction).

Towbar Coupling System

The Towbar Coupling is a simple mechanical interface: a V-shaped or hook jaw (welded steel, grade 8.8) accepts the aircraft nose linkage (typically a 2.5–3 inch diameter casting protruding from aircraft nose strut).

Coupling procedure:

1. Operator positions tractor nose under aircraft nose gear linkage (requires ground personnel guidance, spotter role).
2. Aligns jaw, slowly creeps forward until linkage sits in jaw V-groove.
3. Manually inserts steel lock pin (cotter pin or locking pin) through holes in jaw + linkage.
4. Confirms Coupling Sensor (position switch) indicating engagement.

Decoupling:

1. Operator backs tractor slowly (reverse gear), creating slack in hitch.
2. Removes lock pin manually (if mechanical), or solenoid actuates pin removal (if automated).
3. Continues backing, separating tractor from aircraft linkage.

Safety concern: If lock pin is not fully seated or damaged, aircraft can separate from tractor during towing (catastrophic, risk of aircraft collision, injury to ground personnel). Modern tractors use redundant safety:

• Safety Cable (10 mm steel cable, 2000 kg breaking strength) is always attached from tractor frame to aircraft frame, providing secondary restraint if primary pin fails.

Transmission & Creep Control

Unlike pushback tugs (hydrostatic transmission enabling infinitely variable 0.1 m/s creep), conventional tractors use mechanical gearboxes with gear reduction ratios enabling low-speed control.

Example transmission:

• Engine: 2500 rpm at full throttle, 250 kW output.
• Gearbox first gear ratio: 10:1 reduction (engine 2500 rpm → wheels 250 rpm).
• Wheel diameter: 1 m circumference = 3.14 m.
• Wheel speed: 250 rpm × 3.14 m = 785 m/min ≈ 47 km/h (too fast for apron).
• Solution: Operators use partial throttle (1000 rpm) or creep reduction (additional low-range transfer case, 4:1–6:1 ratio).
• Creep speed at 1000 rpm, 10:1 transmission × 4:1 transfer = 40:1 total ratio: 1000 rpm ÷ 40 = 25 rpm wheels = 0.2 m/s creep speed (ideal).

Power loss in mechanical transmission (15–20% vs. hydrostatic 30–40%):

• Mechanical: Efficient power transfer but limited speed range (5–25 km/h).
• Hydrostatic: Inefficient but smooth control across infinite speed range.

Steering & Maneuverability

The Steering System couples an engine-driven hydraulic pump to Steering Cylinder (double-acting, articulating front axle up to 40° from centerline).

Apron positioning:

• Aircraft in gate: Slight nose-in corrections (±5° steering) can be done by rocking nose with forward/reverse.
• Aircraft repositioning for tight gate: Full articulation (40°) allows crab movement, positioning aircraft sideways into confined spaces.

Tight maneuvering limitations:

• Conventional tractors: Turning radius 12–15 m at creep speeds (less tight than pushback tugs, 6–8 m).
• Reason: Towbar is rigid attachment; cannot achieve the independent front/rear steering of articulated pushback tugs.

Braking & Deceleration

The Braking System (dual-circuit air brake) enables smooth deceleration from 15 km/h to stop in 2–3 seconds (1–2 m/s²), gentle enough to prevent aircraft cargo shift.

Brake hierarchy:

1. Service brake: Proportional foot valve modulating air pressure to wheel cylinders (1–5 bar) for normal deceleration.
2. Parking brake: Spring-applied, air-released mechanism holding tractor static on apron slope (inclines up to 3–5% common on some aprons).
3. Emergency brake: If air pressure drops (leak or compressor failure), spring-applied brakes engage automatically, stopping tractor.

Modern tractors include load-moment indicator (LMI) warning operator if aircraft load distribution is unbalanced (one side heavier), risking rollover on banked taxiways.

Operational Patterns

Typical Boeing 737 towing sequence (5 minutes):

1. Approach & position (1 min): Pilot parks, aircraft engines shut down. Tractor positions upwind of aircraft nose.

2. Coupling (1 min):

   • Ground spotter guides tractor operator via radio.
   • Tractor creeps forward, jaw aligns with nose linkage.
   • Operator waits for spotter confirmation of engagement.
   • Manually inserts lock pin (or solenoid actuates).

3. Towing (2 min):

   • Operator engages low-range, applies slow throttle (creep 0.3–0.5 m/s).
   • Maneuvers aircraft into desired position (e.g., from holding point to gate, 100–200 m distance).
   • Maintains eye contact with spotter, stops on signal.

4. Decoupling (1 min):

   • Operator backs tractor slowly, removing tension.
   • Removes lock pin (manual or solenoid).
   • Backs clear, separates from aircraft.

Widebody (A380) (7–10 minutes, multiple tugs):

• A380 nose gear is heavier; requires 2–3 tractors (one primary, one–two secondary stabilizing lines) for safe coupled towing.
• Longer coupling/decoupling cycle (personnel must walk further, more complexity).

Maintenance & Fleet

Component	Service Interval	Cost
Engine Oil	250 h	$200–400
Transmission Oil	1000 h	$400–600
Air Filter	500 h	$100–150
Brake Pads	2000 km	$800–1200
Hitch Inspection	500 h	$300–500 (wear measurement)
Major Overhaul	10,000 h / 10 years	$40,000–60,000

Lifespan: Conventional tractors operate 12–20 years (8000–15,000 service hours) due to simplicity of mechanical drive vs. complex hydrostatic systems. Apron corrosion (salt spray at coastal airports) and brake wear are primary limiting factors.

Pushback vs. Conventional Tractor Comparison

Factor	Pushback Tug	Conventional Tractor
Coupling Type	Hydraulic nose cradle	Towbar hitch
Speed Range	0.1–3 km/h (infinite creep)	0.3–40 km/h (discrete gears)
Turning Radius	6–8 m (articulated steering)	12–15 m (towbar rigid)
Fuel Economy	35–45 L/hour	25–35 L/hour
Capital Cost	$800k–1.2M	$400k–600k
Maintenance Cost	$8k–12k/year	$5k–8k/year
Nose Gear Stress	Lower (cradle lift)	Higher (towbar pull)
Operator Training	Complex (proportional controls)	Simple (mechanical steering)
Best Use Case	Gate pushback, tight maneuvers	Towing between aprons, road towing

Modern operations typically employ mixed fleets: pushback tugs for frequent gate servicing, conventional tractors for long-distance apron towing and cargo repositioning.
