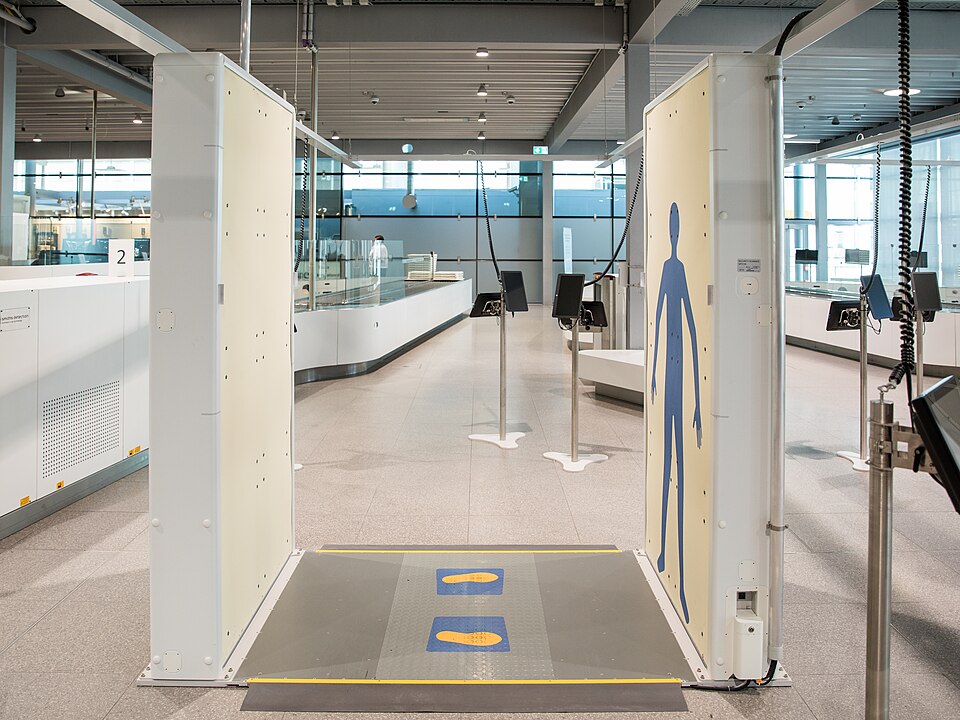

Millimeter-Wave Body Scanner Product

Overview

Millimeter-wave body scanners detect concealed metallic and non-metallic threats (weapons, explosives) concealed under passenger clothing using passive or active millimeter-wave radar. The 77–79 GHz band was chosen because it is:

• Regulated for security imaging (not medical or communication use).
• Penetrates clothing without hazardous ionization (non-ionizing radiation, unlike X-rays).
• Reflects from skin and metals effectively; high contrast images result.
• Available globally for ISM (industrial, scientific, medical) use without licensing.

Deployed at airport security checkpoints, the scanner creates a 3D surface image of the passenger body. Threat detection algorithms (both automated and operator-reviewed) identify suspiciously dense bulges or metallic anomalies inconsistent with normal body geometry or legitimate passenger belongings.

Advantages over metal detectors:

• No metal-on-metal false alarms (belt buckles, glasses, watches).
• Detects non-metallic explosives (PETN, RDX) if shielded with metallic foil.
• Full-body coverage in one scan; no need for individual limb scanning.

Challenges:

• Privacy concerns: images show body silhouette and anatomical detail.
• Non-metallic explosives (pure plastic or organic composition) are harder to detect.
• Environmental: clothing folds and wrinkles can create artifacts mimicking threat profiles.

Millimeter-Wave Imaging Physics

Synthetic Aperture Radar (SAR) Principles

The scanner operates as a synthetic aperture radar (SAR): as the passenger walks through the scanner booth, the rotating [[airport-body-scanner-rotating-carousel|carousel]] carrying the transmit and receive antennas revolves around the body. Multiple antenna positions and return times build up a 3D image.

Key parameters:

• Wavelength at 77 GHz: λ = c/f = 3×10⁸ m/s / 77×10⁹ Hz = 3.9 mm
• Resolution: Typically 5–10 mm in the plane perpendicular to the antenna, finer than traditional metal detectors but coarser than X-ray imaging.
• Penetration depth in clothing: ~5–10 mm before attenuation becomes significant. Thus, items concealed directly on skin (under shirt) are visible; items in double-layer pockets are partially obscured.

Target Detection Signatures

Different threat items produce distinct radar returns:

1. Metallic firearms (pistols, revolvers):

   • Reflection coefficient: ~0.9 (highly reflective).
   • Geometric signature: Cylindrical barrel, trigger guard protrusion.
   • Amplitude: Bright, high-contrast against skin (contrast ratio >100:1).

2. Explosives (plastic-wrapped PETN or RDX):

   • Reflection coefficient: ~0.2–0.4 (moderate).
   • Signature: Rectangular or amorphous shape, denser than expected tissue density.
   • Amplitude: Medium contrast; often requires operator visual inspection for confirmation.

3. Metallic foil-wrapped items:

   • Reflection coefficient: ~0.95 (extremely reflective).
   • Signature: Bright, reflective boundary; interior is shadowed (backscatter blocked).
   • Amplitude: Extremely high contrast; easy to detect if surface-mounted.

The threat detection algorithm scores each pixel region based on:

• Contrast: Deviation from expected skin/clothing reflectance.
• Shape: Geometric consistency with known threat signatures.
• Location: Anatomically suspicious (e.g., bulge on torso or limb, but not at ankle for prosthetics).
• Symmetry: Natural body features tend to be symmetric; suspicious items are often asymmetric.

System Architecture

Antenna Arrays & Rotation

The [[airport-body-scanner-antenna-array|phased-array antenna]] consists of 32 microwave antenna elements arranged in a linear or planar grid, operating in the 77–79 GHz band. The array is mounted on a rotating [[airport-body-scanner-rotating-carousel|carousel]] that completes one full rotation (360°) as a passenger walks through the scanner booth.

As the carousel rotates, the [[airport-body-scanner-position-encoder|angular position encoder]] tracks rotation angle. At discrete angular intervals (e.g., every 5°), the [[airport-body-scanner-rf-transceiver|RF transceiver]] transmits a brief pulse and records the reflected backscatter. A software-based SAR algorithm stitches all 72 received radar images (360° / 5° = 72 images) into a single 3D surface reconstruction of the passenger's body.

Rotation rate: Typically 1 second per full rotation; total scan time for a passenger ~3 seconds.

Image Processing Pipeline

1. Raw data acquisition: 72 individual radar returns, each containing 32 receiver antenna signals sampled at 1 GHz over ~100 µs pulse repetition interval.
2. Range compression: Pulse compression (matched filtering) converts time-domain radar returns to range-domain (distance from antenna).
3. Synthetic aperture focusing: SAR algorithm coherently combines all 72 angular viewpoints, focusing image and synthesizing finer aperture.
4. 3D surface reconstruction: Range and angular data are converted to 3D Cartesian coordinates (x, y, z body surface).
5. Threat detection inference: CNN classifier trained on >10,000 annotated body scans identifies threat regions; assigns confidence scores (0–100%) to each flagged region.

Operator Console & Display

The [[airport-body-scanner-operator-console|operator console]] presents the anonymized 3D body silhouette (no facial features or identifying marks) with threat regions highlighted in red. The operator sees:

• Silhouette view: 3D rotatable body model, threats color-coded by severity.
• Magnified threat detail: Zoom views of flagged regions showing the radar contrast and geometric anomaly.
• Confidence score: AI model's confidence that a flagged region is a true threat (95% = likely threat; 60% = ambiguous).
• Passenger dwell time: Timer showing how long the passenger has been in the scanner (safety feature: scans >10 seconds trigger operator review for RF exposure).

Operational Workflow

Passenger Screening

1. Boarding queue management: Passengers are directed to scanner booth entrance in single-file queue.
2. Pre-scan check: Officer confirms passenger has removed excessive metal items (belt, watch, heavy jewelry) to reduce false alarms.
3. Scan initiation: Passenger enters scanner booth; door closes. Safety interlocks verify no external persons within 1 meter before RF activation.
4. Active scanning: Carousel rotates at constant speed; RF pulses fire at each angular increment; 3D image is built in real-time.
5. Scan completion: After 360° rotation (~3 seconds), passenger exits; image is transmitted to operator console.

Threat Assessment

6. Automated threat detection: CNN runs on full 3D body model; flags regions of interest with confidence scores.
7. Operator review:
   • High confidence (>90%): Immediate secondary search or alert to security.
   • Moderate confidence (70–90%): Operator zoom and visual inspection; cross-references with passenger profile (known prosthetic?, carrying utility belt?).
   • Low confidence (<70%): Often dismissed as artifact (clothing fold, tatoo).
8. Clearance or escalation:
   • Clear: Green light; passenger proceeds to next checkpoint.
   • Ambiguous: Operator may request passenger remove suspicious item for inspection or re-scan.
   • Threat detected: Officer notified; passenger redirected for pat-down or detailed search.

Typical operator assessment time: 2–5 seconds per scan. Throughput: 180–300 passengers/hour.

Safety & RF Exposure

Radiation Safety

The 77–79 GHz frequency is non-ionizing (photon energy ~3.2 meV, insufficient to ionize atoms). Exposure limits are set on absorbed power density (watts per square meter):

• FCC occupational limit: 5 mW/cm² for >6 minutes exposure
• General public limit: 1 mW/cm² continuous exposure

During a 3-second body scan, the [[airport-body-scanner-rf-transceiver|RF power output]] is 24 dBm (+250 mW) transmitted from a 32-element array. At 1 meter distance, power density is <0.5 mW/cm², well below occupational limits and safe for repeated daily exposure.

Safety Interlocks

• Door interlock: RF transmitter automatically disables if booth door is open (prevents accidental exposure to operators servicing equipment).
• Motion sensor: Passive infrared sensor inside booth detects if person re-enters during active scanning.
• E-stop button: Large red mushroom button cuts all power and RF transmission within 100 ms.

Maintenance & Calibration

Weekly

• Verify booth door latch and sensor functionality.
• Check carousel rotation smoothness (listen for unusual grinding or friction).
• Inspect RF transmission during a test scan (no passengers).

Monthly

• Full system scan with calibration phantom (radar-transparent mannequin with reference metallic objects).
• Antenna gain and phase measurement (using network analyzer); verify array performance.
• Threat detection algorithm confidence validation using reference threat images.

Annually

• Replace [[airport-body-scanner-carousel-motor|carousel bearing]] grease and check for play (motor bearings are wear items at 1 rpm continuous rotation).
• Recalibrate RF transceiver (VCO frequency, power amplifier gain).
• Update threat detection CNN model with new patterns observed in field operation.
• Full software security audit (threat detection models can be adversarially attacked with carefully designed clothing patterns).

Standards & Regulatory

• FCC 47 CFR 1.307: RF exposure limits for occupational and general population.
• IEC 61010-1: Safety requirements for electrical equipment used in measurement, control, and laboratory.
• ASTM E178: Standard practice for dealing with outlying observations.
• TSA Security Directive SD-1546: Requirements for advanced imaging technology (body scanners) at U.S. airports.

Performance Metrics

• Scan time: 2–4 seconds per passenger.
• Passenger throughput: 180–300 per hour.
• Detection sensitivity: 95%+ for metallic threats; 85%+ for non-metallic.
• False positive rate: <5% with operator review.
• System uptime: 99.5% target (mean time between failures >5000 hours).
• MTTR (mean time to repair): <2 hours for most common failures.

Economics

A single-lane body scanner installation (booth, electronics, operator console, installation) costs $250,000–400,000. Operating costs (staffing, maintenance, electricity) run ~$50,000/year. Assuming 10-year system life and 1M+ passengers scanned annually, cost per passenger scanned is $0.30–0.50. For high-security airports screening >10M passengers/year, automated systems quickly justify the capital investment through improved throughput and security effectiveness.
