Release Aid Product

Overview

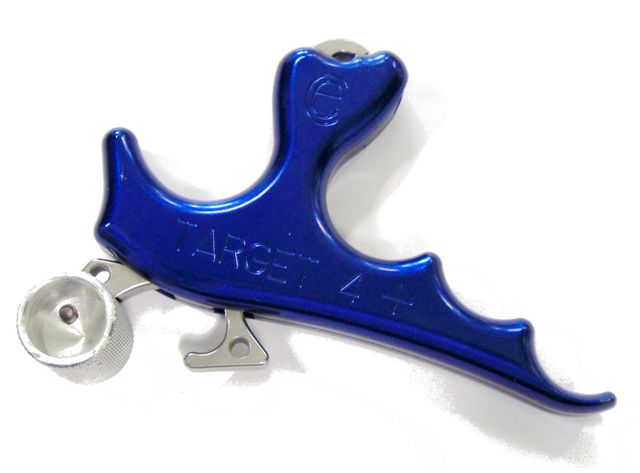

An archery release aid is a mechanical device that mechanically grips the bowstring nocking loop and releases it cleanly at the archer's command. Unlike traditional finger release (pulling the string with three fingers, thumb, or four-finger pinch), a mechanical release decouples the archer's hand motion from string departure, enabling consistent, reproducible shots.

A compound bow archer using a release aid achieves grouping 30–50% tighter than a recurve archer using fingers, primarily because the release eliminates erratic finger motion during the critical string-departure moment. At full draw (approximately 40 pounds of force), any finger twitch translates to arrow deflection; a mechanical trigger eliminates this variable.

Release aids are used in compound bow hunting and 3D sport archery, where precision is essential. Recurve shooters rarely use them (contrary to Olympic rules, and recurve tradition favors finger release), though some target recurve competitors use mechanical releases for consistency.

Jaw Mechanism Design

The Jaw Calipers is the critical component. Two main designs exist:

Caliper Design (Most Common)

Two opposing jaws (upper and lower) grip the string nocking loop vertically:

Mechanism:

• Upper Jaw: Rotates downward around the Jaw Pivot Axis.
• Lower Jaw: Fixed position (or rotates upward in some designs).
• Jaw Return Spring: Maintains closure pressure (5–15 pounds adjustable).

String contact:

• Nocking loop diameter: ~3–4 mm (fits between jaws).
• Jaw contact surface: 0.25–0.5 inches wide (6–12 mm), distributed across nock.
• Contact pressure: (holding force 10 lbs) / (contact area 0.3 sq in) ≈ 33 psi average, safe for string.

Release sequence:

1. At rest, jaws are closed, gripping the string tightly.
2. Archer draws bow, loading energy into limbs (string is held immobilized by the release).
3. Archer aims, stabilizes (string tension maintained by release).
4. Archer squeezes trigger.
5. Sear Locking Pin disengages; upper jaw opens in <1 millisecond.
6. String is released, accelerating the arrow.

Advantages:

• Clean release (jaw opens before string recoils; no finger creep or closure variation).
• Consistent (release mechanism is mechanical, not human muscle-dependent).
• Reproducible (each shot is identical, enabling tight grouping).

Hinge Design (Alternative)

A single jaw rotating around the Jaw Pivot Axis in opposite direction to caliper:

Mechanism:

• Jaw hinges open outward (similar to opening a door).
• Single trigger motion opens the jaw, releasing the string.

Advantages:

• Simpler mechanism (fewer parts).
• Lower cost ($40–80).
• Lighter weight.

Disadvantages:

• Less consistent (hinge speed varies with trigger pull rate).
• More moving mass (jaw inertia affects string departure).
• Older design; few modern models use this.

Most modern releases (90%+) use the caliper design due to superior consistency.

Trigger Mechanisms

The Trigger Assembly converts finger pressure into jaw-opening motion. Types include:

Index-Finger Release (Most Popular)

Design:

• Trigger lever extends rearward from release housing.
• Archer's index finger rests on the lever.
• Squeezing the lever (pressing toward palm) actuates the sear.

Advantages:

• Natural finger position (index finger is strongest for pulling).
• Good control and feedback.
• Standard in hunting and 3D sport.

Trigger weight (Trigger Sensitivity Screw):

• Adjustable 1–5 pounds (typically 2–3 pounds for hunting, 1–2 pounds for precision).
• Too light: Accidental discharge risk (bumping release triggers shot).
• Too heavy: Muscular fatigue, creep during hold.

Thumb Release (Alternative)

Design:

• Trigger is positioned near the top of the release.
• Archer's thumb (or index finger in some designs) presses the trigger upward.

Advantages:

• Distributes load differently (different muscle groups).
• Preferred by some archers with arthritis or hand injuries.
• Inherently ambidextrous (works for left and right-hand draws).

Disadvantage:

• Less intuitive for first-time users (thumb motion is less familiar).

Back-Tension Release (Advanced)

Design:

• Trigger is very light or non-existent.
• Release actuates when archer applies rearward pressure (back-tension) during the draw cycle.
• Requires specific technique: archer increases back tension, and at a pre-set threshold, the release fires.

Advantages:

• Eliminates surprise (archer does not "pull" the trigger; release fires predictably when form is correct).
• Encourages consistent shooting form.
• Used by Olympic and precision-shooting competitors.

Disadvantage:

• Steep learning curve (2–4 weeks to master).
• Requires excellent shooting form (poor form = inconsistent firing threshold).

Holding Pressure & Nock Contact

The Jaw Calipers grips the nocking loop with adjustable pressure controlled by the Jaw Tension Screw:

Physics of string holding:

• Nocking loop diameter: 3–4 mm.
• Jaw holding force at full draw: 60 lbs (average) × 2 jaws = 120 lbs total tension.
• Contact pressure: 120 lbs / (contact area 0.3 sq in) = 400 psi local contact stress.

This is far higher than the string's tensile breaking stress (~1,500 psi for Dacron), so the string is held securely without risk of slippage.

Jaw bearing surface (Jaw Bearing Surface):

• Material: Ultra-high-molecular-weight polyethylene (UHMWPE), brass, or stainless steel.
• Friction coefficient: 0.05–0.1 (very low, minimizing string damage).
• Hardness: Sufficient to resist string indentation; soft surfaces (rubber) wear quickly.

Without proper bearing material, the string would be crushed or frayed, causing nock damage and requiring frequent nocking loop replacement.

Release Consistency & Repeatability

The primary advantage of a mechanical release is consistency. A human archer releasing with fingers has variability:

Finger release variability (traditional recurve):

• Release time relative to aim: ±50 milliseconds (archer releases at slightly different points in the draw cycle).
• Finger pressure: Varies ±0.5 lbs (some releases tense, some relax).
• Finger configuration: Index finger position shifts ±3 mm (affects string departure angle).
• Result: 4–6 inch scatter at 20 yards (typical for intermediate archer).

Mechanical release consistency:

• Release time: ±2 milliseconds (mechanical trigger is deterministic).
• Jaw opening: Identical across shots (no muscle variation).
• String departure: Perfectly repeatable (jaws open along the same axis).
• Result: 2–3 inch scatter at 20 yards (typical for intermediate archer with release).

Impact on archery discipline: Release aids effectively "hide" shooter errors, allowing less-skilled archers to shoot consistently. This democratizes archery (easier for beginners) but also rewards shooters with better form (advanced archers still out-shoot beginners with releases).

Wrist Strap Safety

The Wrist Strap Assembly is a critical safety feature:

Purpose:

• Keeps the release attached to the archer's hand during the shot.
• Prevents accidental dropping of the release (loss of equipment, safety hazard if release drops on foot).
• Acts as a tether if the trigger is pulled unintentionally (release is secured, preventing loss of control).

Design:

• Strap Fabric: Nylon or neoprene webbing, 1–2 inches wide, distributing pressure across the wrist.
• Closure System: Velcro (easiest to adjust, quick on/off) or buckle (more durable, less likely to loosen).
• Strap Attachment Ring: Reinforced stitching or riveted loop connecting strap to release housing.

Proper fit:

• Strap should be snug but not restrictive (able to fit one finger under strap).
• During draw, the release hangs naturally in hand without twisting.
• After release, the strap prevents the release from swinging or falling.

Many novice archers under-tighten their strap, resulting in release rotation during the shot, which introduces release creep (jaw opening slightly before desired trigger point).

Adjustment & Tuning

Jaw tension (Jaw Tension Screw):

• Adjusted by rotating the screw (typically ±8–10 clicks full range).
• Tighter = higher holding pressure.
• Too tight: Excessive jaw pressure can damage nocking loop or require extra finger force to manipulate release.
• Too loose: Release may slip or open prematurely under draw tension.

Trigger sensitivity (Trigger Sensitivity Screw):

• Adjusts how hard the archer must squeeze to actuate the release.
• Range typically 1–5 pounds pull weight.
• Hunting: 2–3 pounds (enough pressure to avoid accidental release, not so heavy as to fatigue).
• Competition: 1–2 pounds (allows finer control, lighter touch).

Tuning process:

1. Set jaw tension to minimum tight (just sufficient to hold string).
2. Set trigger weight to 2–3 pounds (standard starting point).
3. Shoot 10 arrows at 20 yards, observe grouping.
4. If trigger weight feels heavy, reduce by 1 click; repeat.
5. Continue until grouping tightens and trigger breaks smoothly.
6. Once tuned, note the adjustment position (mark with tape); repeat before each season.

Professional archers re-tune their release before every tournament (adjustments drift due to vibration and wear).

Field Use & Hunting

In hunting, the release aid enables clean, effective shots:

Scenario (compound bow deer hunt):

1. Bow is drawn and held at full draw (release jaws gripping string; compound bow's let-off reduces holding fatigue to 10–15 lbs vs. full draw weight 60+ lbs).
2. Release is ready on archer's wrist, jaws closed and holding the string.
3. Deer approaches to 25 yards.
4. Archer aims reticle (or pin sight) on vital zone.
5. Taking a breath, archer squeezes the trigger smoothly.
6. Sear disengages, upper jaw opens, string departs in <1 millisecond.
7. Arrow launches at 300+ ft/s (compound bow velocity), impacting vital zone at 25 yards with 60+ joules kinetic energy.

With a mechanical release, the archer's hand motion is decoupled from string departure, enabling shots to be taken even if the archer is shaking from adrenaline or cold. Without a release, hand tremor introduces significant grouping scatter, potentially causing a miss or a non-fatal wound.

Comparison to Finger Release

Aspect	Finger Release	Mechanical Release
Learning Curve	Steep (2–3 months to basic competence)	Shallow (1–2 weeks)
Grouping Potential	4–6 inches at 20 yards (intermediate)	2–3 inches at 20 yards (intermediate)
Consistency	Muscle-dependent, variable	Mechanical, repeatable
Cost	Free (hands only)	$50–500
Complexity	Simple technique	More equipment to maintain
Shooting Discipline	Recurve Olympic standard	Compound hunting/sport standard
Hand Comfort	Risk of hand/finger strain	No hand impact (cleaner release)

Finger release remains standard in Olympic recurve archery (rules require it). Compound archery strongly prefers mechanical releases due to the precision advantage.

Maintenance & Durability

Mechanical releases are durable but require care:

Regular maintenance:

• Clean jaw surfaces monthly (dirt reduces friction, causing slippage).
• Inspect wrist strap for wear (velcro degrades; replace adhesive backing if needed).
• Check jaw bearing surface for scoring or pitting (indicates wear; replace bushing if excessive).
• Lubricate pivot pin annually with light machine oil or silicone spray.

Lifespan:

• Jaw bearing: 5,000–10,000 shots before noticeable wear (typical 2–3 years for active archer).
• Trigger mechanism: 10,000+ shots (rarely wears unless abused).
• Wrist strap: 2–5 years depending on use and care.
• Housing: Lifetime (aluminum is durable; cracks are rare).

Wear signs:

• Release feels loose or sloppy (bearing wear, bushing replacement needed, ~$20–50).
• Trigger becomes unpredictable (sear wear, mechanism replacement needed, ~$100–200).
• Wrist strap tears or velcro no longer adheres (replacement strap, ~$20–40).

Repair vs. replacement:

• Budget release ($50–100): Wear at ~$50/year; replacement is more economical than repair.
• Premium release ($300–500): Repair parts available, long-term value justifies component replacement.

Competition vs. Hunting Releases

Hunting release requirements:

• Durability: Must survive weather, impact, rough handling.
• Reliability: Trigger must be 100% consistent in rain, cold, wind.
• Comfort: Must reduce shooter fatigue during long waits.
• Cost: $50–150 (hunting budgets are modest).

Competition release requirements:

• Precision: Trigger weight <1 pound, jaw tension perfectly repeatable.
• Adjustability: Fine-tuning screws for micro-adjustments.
• Repeatability: Identical performance across 100+ shots in a tournament.
• Cost: $300–500+ (competitors invest in precision equipment).

Premium competition releases use:

• Stainless steel jaws (superior bearing life).
• Fine-pitch adjustment screws (0.1 pound increments).
• Jewel-bearing pivot pins (near-zero friction).
• Dial indicators on adjustment screws (precision reference marks).

Mid-range hunters use simpler releases with good trigger feel and reliable durability, accepting less adjustability.

Selection & Fit

Choosing a release:

1. Trigger type: Index, thumb, or back-tension. Index is most common; try all three before deciding.
2. Hand size: Releases come in small, medium, large. Grip should feel natural; too large or small compromises control.
3. Draw length compatibility: Ensure release jaws open sufficiently for your nocking loop diameter (most are universal, but verify).
4. Budget: $50–150 for hunting, $300+ for competition.

First-time setup:

• Have the release fitted by a pro (bow shop). Correct wrist strap adjustment and initial tension settings are critical.
• Shoot 50 arrows to get accustomed to trigger feel before hunting.
• Fine-tune trigger weight and jaw tension based on grouping feedback.

A poorly-fitted or improperly-tuned release is more erratic than finger release; proper setup is essential.
