Overview

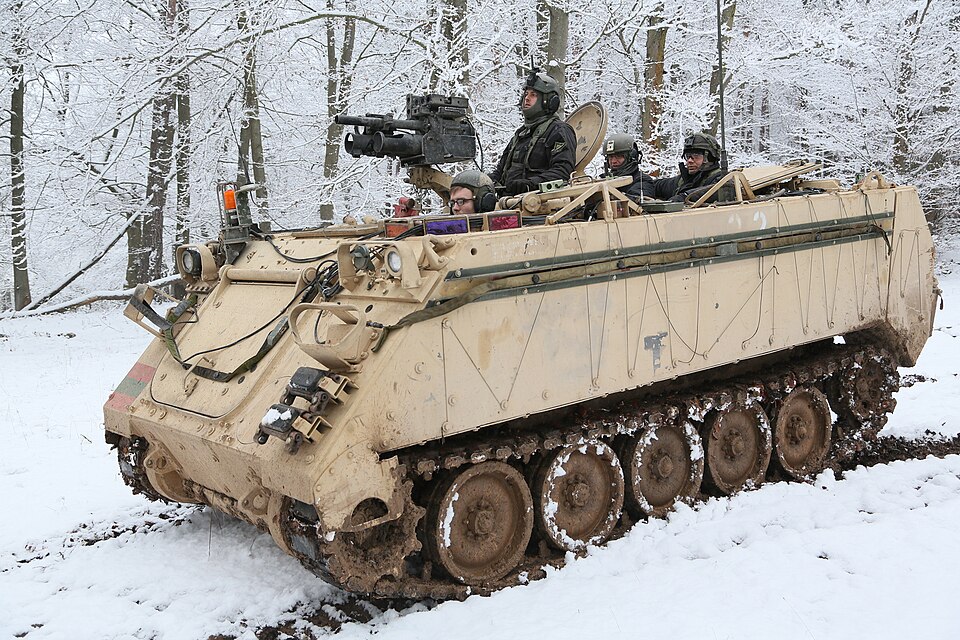

An armored personnel carrier (APC) is a protected vehicle whose job is to move an infantry section across a battlefield and deliver it intact. Unlike an infantry fighting vehicle, it is not built to fight alongside its dismounts; armament is typically limited to a machine gun, and the design budget goes into protection, mobility, and internal volume. This article describes a modern 8×8 wheeled APC of the class that includes the Patria AMV, Boxer, Piranha V, and Stryker — vehicles in the 25–30 t range carrying two crew and eight dismounts.

The vehicle is organized around the Hull Structure, a welded monocoque of high-hardness armor steel that is simultaneously the chassis, the protective envelope, and the mounting structure for every other subsystem. There is no separate frame: suspension stations, the Powerpack, and the Armor Package all bolt directly to the hull.

Hull and protection

The Hull Weldment is fabricated from CNC-cut armor steel plates, usually 8–12 mm thick, welded into a tub whose lower surfaces are angled to shed blast. Crew access is through the hydraulic Rear Ramp, three Roof Hatch positions, and the Driver Hatch; situational awareness under armor comes from eight laminated Vision Blocks and the driver's Driver Periscope cluster.

The bare hull provides STANAG 4569 Level 2 protection (7.62×39 mm API). The Armor Package raises this to Level 4: twenty-four Appliqué Armor Module modules — ceramic strike faces on composite backings, each light enough for two soldiers to handle — bolt onto threaded bosses welded to the hull. Inside, an aramid Spall Liner covers the walls and roof to catch fragments spalled off the steel by impacts that do not fully penetrate. Under the floor, the shaped Belly Plate and the standoff created by the hull's ground clearance defeat mine and IED blast to Level 4a/4b (10 kg charge under wheel or belly). The Blast-Attenuating Troop Seats complete the blast chain: each hangs from the wall or roof rather than the floor and strokes through an energy absorber, decoupling the occupant from floor acceleration.

Mobility

Power comes from the Turbo-Diesel Engine, a 12.8 L turbo-diesel of about 530 hp, flanged directly to the Automatic Transmission as a single Powerpack module. The powerpack lifts out through the roof on quick-release mounts and can be exchanged in the field in under an hour; a replacement pack is test-run on a stand before installation. Intake air passes through the two-stage Engine Air Filtration unit, and heat is rejected through a stacked Radiator group fed by an engine-driven Coolant Pump.

The Drivetrain is a permanent 8×8 layout. The Transfer Case splits torque to front and rear axle groups, Driveshafts carry it to four lockable Axle Differentials, and planetary Hub Final Drive units in each hub provide the last gear reduction — which keeps shaft torque low and lifts the driveline clear of obstacles.

The Suspension & Wheels gives each wheel an independent double-wishbone station: forged Suspension Control Arms locate the hub through roughly 400 mm of travel, sprung and damped by a gas-over-oil Hydropneumatic Strut. The Central Tire Inflation System lets the driver drop tire pressure from 7 bar (road) to about 1.5 bar (sand) on the move, and Run-Flat Inserts inside each Wheel Assembly carry the vehicle 30–50 km after a tire is shot out. Steering acts on the front two axles, giving a turning circle of about 17 m despite the 8 m hull.

Crew systems

The driver sits front-left on a Seat Assembly with the Driver Controls — power steering, pedal cluster, electronic gear selector — and an LCD Panel showing drivetrain status, CTIS state, and navigation from the Military GPS Receiver. The commander sits behind or beside the driver with a second display and the Communications Suite: two 50 W frequency-hopping VHF Tactical Radios on tilt-down Antenna Mounts, distributed to every crew position through the Crew Intercom over a shielded Wire Bundle.

Survivability systems run continuously. The NBC Protection System holds the crew compartment at positive pressure through HEPA and activated-carbon filtration; the Fire Suppression System system floods the crew or engine bay within about 250 ms of optical flame detection. Four 12 V Battery units support silent watch with the engine off, an Recovery Winch provides 8 t of self-recovery line pull, and amphibious variants carry an Bilge Pump for swimming.

Variants

The same hull supports a family of roles — ambulance, command post, mortar carrier, recovery — by exchanging the rear compartment fit while keeping the powerpack, drivetrain, and protection common, which is the main logistical argument for the modular 8×8 layout over tracked designs in medium-weight brigades.
