Asphalt Batch Plant Product

Overview

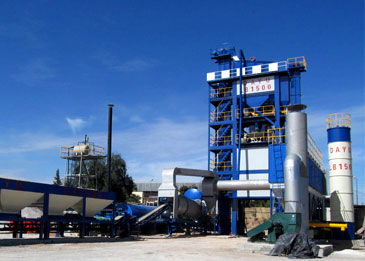

A batch asphalt plant is a semi-continuous facility that produces hot-mix asphalt (HMA) in discrete batches of 4–8 tons. Unlike drum plants, batch plants physically separate drying and mixing: cold aggregate is heated in a rotating drum, then hot material is screened and classified into size fractions, accumulated in multiple weigh hoppers, and finally blended with bitumen in a pugmill mixer. Batch plants excel at producing specialty mixes, accommodating frequent recipe changes, and achieving close control over binder content. They are prevalent in medium-volume operations and regional asphalt producers.

How it works

Operators input a mix design recipe into the plant PLC. Cold aggregate from multiple bins is metered by vibrating feeders onto weigh scales, accumulating the target weight for one batch. The scaled aggregate is discharged into the rotating dryer drum, where it is heated to 160–170°C and dried via a fuel burner mounted at the inlet. Hot aggregate exits the drum into a multi-deck vibrating screen tower, which classifies material into size fractions (e.g., 3/4", 3/8", pan fines). Each size falls into its own insulated weigh hopper below the screens, where load cells verify that the correct weight of each fraction is present.

Once all three size fractions are weighed and confirmed, pneumatic gates release them simultaneously into the pugmill mixer. Hot bitumen (80–120°C) is sprayed through an injection nozzle during the mixing period, which lasts 40–60 seconds. Twin counter-rotating shafts with paddles blend the aggregate and binder uniformly. The finished asphalt is discharged from the mixer onto an inclined conveyor belt that carries it to a truck or temporary storage. The next batch cycle then begins.

Components and subsystems

Cold Feed System

Multiple hoppers hold aggregates of different sizes (coarse, intermediate, fines) and mineral filler. Each bin is fitted with a vibrating feeder controlled by the PLC. Material passes through individual weigh scales before entering the dryer. This "cold-end" weighing ensures accuracy and provides flexibility: operators can adjust proportions mid-shift without stopping the plant.

Dryer Drum

Similar to a drum plant's dryer, but smaller (1.5–2.5 m diameter, 4–6 m long) and lower-capacity (handling one batch at a time). A fuel burner heats the drum to the target temperature. Material spends 5–10 minutes in the drum, being lifted and dropped by internal flights, achieving thorough drying and uniform heating. Exit temperature is monitored continuously.

Hot Screen Tower

A vertical stack of 2–4 vibrating screen decks sits directly below the dryer discharge. Each deck has different opening sizes (e.g., 3/4", 3/8", pan). Material cascades downward, with each size fraction falling into its own hopper. Undersize material and fines collect in a pan hopper at the bottom. The screen vibration is 1800–3600 rpm, powered by a separate electric motor. Screening is fast—complete in a few seconds—so there is minimal heat loss.

Weigh Hoppers Assembly

Three or four insulated hoppers, one for each aggregate size fraction (coarse, intermediate, fines), hang below the screen tower. Each hopper is mounted on load cells that provide real-time weight feedback to the PLC. The hoppers are insulated to slow heat loss during the wait for all fractions to accumulate. Once the PLC confirms that all hoppers have reached their target weights, it signals the pneumatic gates to open.

Pugmill Mixer

A simple yet robust twin-shaft mixer (often the Oshkosh or Barber-Greene design). The mixer drum has 4–8 ton capacity and is heated with jacket steam or electric heaters. Two counter-rotating shafts at 30–50 rpm are fitted with welded paddle blades. When all weighed aggregate fractions are discharged into the mixer, it runs in "continue" mode (gates remain open) while hot bitumen is sprayed via a proportional solenoid injection nozzle. The paddles lift and fold the mix, ensuring even bitumen distribution in 40–60 seconds. A tilt-out discharge door releases the finished asphalt into the conveyor.

Discharge Conveyor

An inclined belt conveyor (typically 6–8% slope, 25–40 m long) carries hot asphalt from mixer discharge to truck or temporary silo. The conveyor is slower-running (0.5–1.0 m/s) than many industrial conveyors to minimize segregation. A scraper blade cleans the return side of the belt.

Baghouse Filter

A pulse-jet baghouse or similar dust collector captures emissions from the dryer and screen areas. Polyester filter bags are standard; a solenoid timer periodically reverses airflow to dislodge dust. Collected material is either recycled into the mix or discarded.

Control System

The control system is the brain of the operation. The PLC runs one or more pre-programmed recipes, each specifying target weights for each aggregate fraction, bitumen dosage, and mixing time. The operator selects a recipe on the HMI and presses "Start." The PLC sequences feeders, monitors scale weights, opens/closes gates, measures mix temperature, and logs all data. Modern systems support wireless recipe upload and can interface with truck-mounted RFID readers for material traceability.

Engineering considerations

Recipe precision: Batch plants achieve ±0.5% weigh accuracy, critical for exact binder content (typically 4–7% of aggregate weight). This precision is superior to many drum plants and is essential for specialty mixes (porous, permeable) and recycled asphalt pavement (RAP) blends.

Thermal losses: Unlike continuous drum plants, batch plants must re-heat material during idle time (between batches). Insulating hoppers and minimizing dwell time reduces fuel consumption. Typical fuel use is 50–70 liters of diesel equivalent per ton.

Mix flexibility: Batch plants adapt quickly to recipe changes. In a single shift, an operator can produce a dense-graded mix (NMAS 19 mm), a stone-matrix asphalt (SMA), and a porous asphalt—each with a unique recipe—by simply selecting a new recipe from the HMI.

Maintenance: Twin-shaft mixers are mechanically simple and require minimal downtime. The main wear items are mixer paddles (typically every 2–3 years), bearing seals, and motor bearings.

Scaling: Batch plants don't scale as efficiently as drum plants. A 120 t/h batch plant requires larger drives and thicker-walled components than a 60 t/h plant. High-volume producers (>200 t/h) almost always prefer drum plants.

Comparison to drum plants

Batch plants sacrifice throughput for flexibility and precision. A 150 t/h batch plant requires continuous loading and sequencing to reach that rate, whereas a 150 t/h drum plant is inherently continuous. However, batch plants excel when asphalt producers must accommodate multiple mix designs, frequent recipe changes, or stringent binder content control. Many modern batch plants are also equipped with RAP (recycled asphalt pavement) systems, allowing 15–25% RAP integration while maintaining close mix design tolerances.
