Asphalt Drum Mix Plant Product

Overview

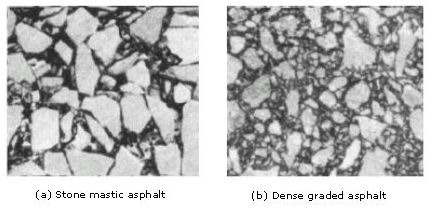

An asphalt drum mix plant is a continuous-process facility that produces hot-mix asphalt (HMA) by heating and drying cold aggregate, then blending it with bitumen binder in a rotating drum. Unlike batch plants, drum plants use a single large rotating drum as both dryer and mixer, offering higher throughput (120–180 t/h) and greater flexibility for varying mix designs. The plant is widely used for highway construction, airport runways, and parking lot paving.

How it works

Aggregate from multiple cold feed bins is metered by vibrating feeders and fed into the rotating drying drum. The drum is internally heated via a fuel burner (natural gas or diesel) mounted at the inlet, achieving temperatures of 160–170°C. As material travels the length of the drum, it is continuously lifted and cascaded by internal flight blades, ensuring intimate contact with hot air and providing surface area for moisture evaporation. Concurrently, hot bitumen (80–120°C) is sprayed from a nozzle into the drum exit zone, coating the dry heated aggregate in a single continuous action.

The mixed asphalt exits the drum and is conveyed via a drag conveyor to an insulated storage silo. The silo maintains temperature through immersion heaters and thin-walled insulation, allowing trucks to be loaded at any time. A baghouse dust collection system captures fines and prevents atmospheric emissions.

Components and subsystems

Cold Feed System

Multiple aggregate bins (typically three: coarse 20–25 mm, intermediate 10–15 mm, fine 2–5 mm) plus a filler bin for mineral powder. Each bin is equipped with a vibrating feeder that is independently controlled by the plant PLC. Weighing scales beneath the feeders measure material in real-time, allowing the operator to adjust feed rates to achieve the target binder content (typically 4–7% by weight of aggregate). The cold feed system is critical for accurate mix proportioning and batch stability.

Drying and Mixing Drum

The heart of the plant. The main drum is a large welded steel cylinder 2–3 m in diameter and 6–8 m long, supported by two large tapered roller bearings that can withstand sustained 160°C operation. A drive motor (50–75 kW) with integral gearbox rotates the drum at 12–18 rpm. Internal lift flights welded to the drum shell periodically lift and drop the material, multiplying the surface area exposed to hot air and dramatically accelerating drying and mixing. Temperature is monitored continuously by an infrared pyrometer or thermocouple at the drum outlet.

Burner System

A fuel burner mounted at the drum inlet supplies the heat. Most plants use a dual-fuel burner capable of operating on natural gas (preferred) or #2 diesel. Burner capacity is typically 2–4 MW, heating the aggregate from ambient to 160–170°C. The burner includes an atomizing head, ignition pilot, combustion chamber (lined with refractory), air fan, and fuel pump. Airflow and fuel flow are modulated by solenoid valves controlled by the PLC, maintaining drum temperature within ±5°C of the setpoint.

Baghouse Filter

A cyclone or pulse-jet baghouse collects fine dust before exhaust to atmosphere, meeting EPA Tier 4 and similar global emissions standards. The baghouse typically contains 40–60 polyester filter bags (100–200 micron). A solenoid-controlled pulse valve reverses airflow every 30–60 seconds, dislodging dust from the bags. Collected dust is gravity-discharged into a hopper; material is either sold as filler or sent to landfill, depending on quality and regulations.

Drag Conveyor

A chain-flight drag conveyor moves the hot asphalt from drum discharge to the silo. The conveyor is a simple steel trough with welded flights attached to a roller chain. A motor (15–25 kW) with speed reducer drives the chain. The conveyor must handle material at 160°C and is typically run at slow speed (0.5–1.0 m/s) to avoid segregation of aggregate sizes. Idler rollers support the chain and absorb the weight of the asphalt and flights.

Storage Silo

An insulated vertical tank (400–600 ton capacity) stores finished asphalt while maintaining temperature. The silo is a welded steel cylinder, typically 8–10 m diameter and 12–15 m tall, with a conical bottom and pneumatic slide gate for discharge. Insulation (fiberglass or foam) wraps the exterior to minimize heat loss. An immersion heater (10–20 kW electric or steam) warms the asphalt when production ceases, keeping it workable for hours. A radar level gauge continuously monitors silo inventory.

Control System

A programmable logic controller (PLC) with a color HMI touchscreen oversees the entire plant. The operator sets target mix temperature, bitumen content, and production rate. The PLC adjusts drum speed, burner fuel flow, feeder vibration frequencies, and conveyor speed in real-time based on feedback from temperature probes, load cells, and pressure sensors. Modern systems also log data for mix traceability and regulatory compliance.

Engineering considerations

Mixing homogeneity: The rotating drum with internal flights provides excellent mixing compared to static blending. However, segregation of coarse and fine aggregate can occur if conveyor speed is too high. Most operators run conveyors at <1 m/s to minimize material degradation.

Temperature control: Drum temperature must be high enough to fully dry aggregate and melt bitumen evenly. Too low, and moisture remains; too high, and bitumen oxidizes, reducing pavement durability. Modern plants use infrared thermometers to measure aggregate temperature at drum outlet, independent of burner temperature.

Emissions: Drum plants generate dust from the hot aggregate and vapor from hot bitumen. A baghouse and good ventilation are essential. Many plants now add a thermal oxidizer (afterburner) to destroy volatile organic compounds (VOCs), further improving air quality.

Fuel efficiency: A well-tuned burner and good drum insulation can reduce fuel consumption to 35–45 liters of diesel equivalent per ton of HMA, though older plants may consume 50–70 L/t. Larger plants (>200 t/h) are more efficient than smaller ones.

Downtime: Drum plants are robust and run 90–95% of operating hours in mature facilities. The main wear items are drum bearings (typically replaced every 3–5 years), burner heads (1–2 years), and filter bags (6–12 months).

Historical context

Drum plants were pioneered in the 1950s and became dominant in North America by the 1980s, largely displacing batch plants in high-volume applications. Their continuous nature and compact footprint are advantages for highways and large infrastructure projects. However, batch plants retain a niche for specialty mixes (porous asphalt, recycled asphalt pavement) and lower-volume regional plants.
