Slide Stainer Product

Overview

An automated slide stainer is a programmable batching system that processes 20–50 microscope slides through sequential staining and rinsing steps without manual intervention. A motorized carousel holds glass slides in individual slots and rotates to position each slide at the active reagent station. A servo-driven transport arm moves the carousel left/right across a row of 6–8 temperature-controlled baths containing hematoxylin, acid alcohol, bluing reagent, ethanol, and xylene in the standard H&E (hematoxylin & eosin) protocol. After the final xylene rinse, slides pass through a drying station (warm air + infrared lamps) before manual coverslip application. A PLC with touchscreen HMI coordinates carousel rotation, arm timing, bath immersion dwell times, and drying cycles, replacing labor-intensive manual dipping and reducing reagent waste by up to 80%. Automated stainers are essential in high-volume histopathology labs and clinical diagnostic centers.

Operational Workflow

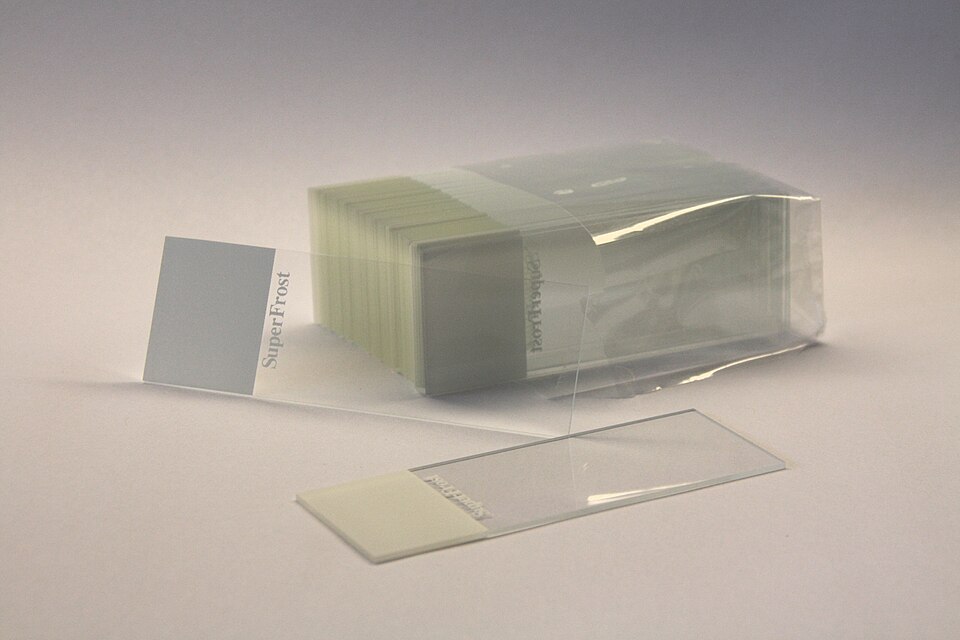

Batch Loading: The operator loads 20–50 histological glass slides (each bearing 1–4 tissue sections mounted and fixed) into spring-loaded grip slots on the carousel. Slides are positioned vertically.

Protocol Programming: The operator selects a stored staining protocol (H&E, PAS, special stains, immunohistochemistry) or creates a custom recipe via the touchscreen HMI. Protocol parameters include:

• Reagent station sequence (e.g., hematoxylin → rinse → acid alcohol → bluing → ethanol → xylene)
• Dwell time at each station (typical 30 sec to 2 min)
• Temperature for heated baths (e.g., 36°C for hematoxylin)
• Drying time and temperature

Automated Cycle: The PLC coordinates the following steps in a loop:

1. Carousel Rotation (stepper motor): Advances to next station position (~10 sec).
2. Arm Positioning (servo-linear actuator): Moves carousel left or right, aligning slide with reagent bath (~15 sec).
3. Immersion Dwell (timer relay): Holds slide in reagent for specified duration.
4. Repeat for each bath in sequence.
5. Final Drying (infrared lamps + blower): Removes residual xylene and ethanol, preparing for coverslip adhesion.

Total Cycle: ~45–90 seconds per slide for a standard H&E protocol; batch of 40 slides completed in ~30–60 minutes.

Carousel and Positioning System

Stepper-Driven Carousel: A NEMA 17 stepper motor (0.4 Nm, 200 steps/rev) meshes with a 40-tooth drive gear, rotating a 240-tooth internal ring gear attached to the carousel. This provides a 6:1 reduction, advancing the carousel by one slide slot per 50 stepper steps (~0.6 seconds per step). The carousel is supported on sealed ball bearings for smooth, zero-backlash indexing over thousands of cycles.

Linear Transport Arm: A DC servo motor (100 W, 48 V) drives a precision ballscrew with 2 mm pitch and 300 mm travel, moving the carousel linearly to align with each bath station. An integrated encoder (1000 PPR) provides closed-loop feedback to the servo amplifier, maintaining ±5 mm positional repeatability. This tolerance accommodates bath tank spacing variations.

Slide Gripper: A pneumatic or servo-solenoid gripper actuator securely holds the slide edges during arm motion, preventing drop or misalignment. Soft rubber pads prevent glass breakage.

Reagent Bath Stations

Six to eight modular stainless-steel cuvettes (250 mL each) are mounted in a fixed aluminum frame. Each bath is independently controlled:

• Hematoxylin bath: 36°C, 1 min dwell (acidic dye staining nuclei dark blue/purple)
• Rinse bath (DI water): 20°C, 30 sec (removing excess dye)
• Acid alcohol: 20°C, 10 sec (differentiating hematoxylin, removing excess from cytoplasm)
• Bluing reagent: 20°C, 30 sec (alkalizing hematoxylin to stable blue color)
• 70% Ethanol: 20°C, 30 sec (dehydration step)
• Absolute Ethanol: 20°C, 1 min (complete dehydration)
• Xylene: 20°C, 1 min (clearing agent, making tissue transparent)

Automated drain valves (solenoid-actuated pinch valves) allow rapid changeout of spent reagents every 100–200 slides or per protocol. Bath filtration (100 μm mesh) extends reagent life by 30%.

Temperature Control

Three heated baths (hematoxylin, alcohol, xylene) are independently controlled by immersed cartridge heaters (200 W each) and thermistor feedback to on-off relay circuits. Temperature setpoints are programmed per protocol; typical values are 36–40°C for hematoxylin (accelerating staining kinetics) and 20°C for rinsing/clearing (preventing excessive solvent volatilization).

Drying System

The drying station consists of:

• Infrared heating lamps (2 × 200 W quartz-halogen elements) warming slide surface to 40–60°C
• Tangential blower (24 VDC, 10 m³/min) directing warm, dry air across slide face
• Drying timer relay (1–10 minute range) controlling dwell duration
• Temperature sensor (RTD) modulating lamp intensity via PID relay

Drying time is typically 2–5 minutes, removing residual xylene and ethanol to prepare slides for coverslip adhesive.

Control Architecture

PLC Core: A compact programmable logic controller (8 digital inputs, 12 relay outputs, 24 VDC) manages all timing, sequencing, and interlocks.

HMI Touchscreen: A 3.5 inch 480 × 320 resistive display allows protocol creation, reagent library browsing, cycle monitoring, and diagnostic alarms (bath temperature out-of-range, slide jam, etc.).

Motor Drivers: Dedicated stepper driver (NEMA 17) and servo amplifier (48 V) receive PLC command pulses and encoder feedback for synchronized motion.

Safety Interlocks: Emergency stop button cuts 24 VDC supply; carousel stalls if arm collision is detected via encoder stall current. Over-temperature cutout (65°C) prevents reagent degradation.

Reagent Economics and Maintenance

Reagent Consumption: An automated stainer uses ~30 mL per slide (compared to ~80 mL per manual dip), reducing operating cost by 60–70% over 1000 slides/month. Longer reagent life (100–300 slides) due to reduced oxidation and contamination.

Preventive Maintenance:

• Weekly: Drain trays, check blower filters, visually inspect bath clarity.
• Monthly: Change bath filters, recalibrate thermistors.
• Quarterly: Replace gripper pads, inspect ballscrew lubrication.

Troubleshooting: Common issues are gripper slip (worn pads), bath cross-contamination (failing drain valve), and servo position drift (encoder alignment).

Staining Protocol Variations

• H&E (Hematoxylin & Eosin): Routine histology, 45 sec/slide
• PAS (Periodic Acid-Schiff): Carbohydrate and glycogen visualization, 90 sec/slide
• Masson Trichrome: Collagen and fibrin differentiation, 120 sec/slide
• Immunohistochemistry: Antibody + enzyme-substrate, 5–10 min/slide
• Special stains: Gram, Gram-Twort, Giemsa, Perl's (iron), Jones (methenamine), etc.

All protocols are user-programmable; the stainer's main limitation is reagent number and bath temperature uniformity.

Related Components

The automated stainer feeds into:

• Coverslip applicator: Automated mounting of coverslips with xylene-based medium
• Slide scanner: Whole-slide image digital pathology (Leica, Aperio, Zeiss)
• Manual coverslipping station: For labs without full automation
• Reagent waste disposal: Xylene and ethanol chemical recycling or incineration
