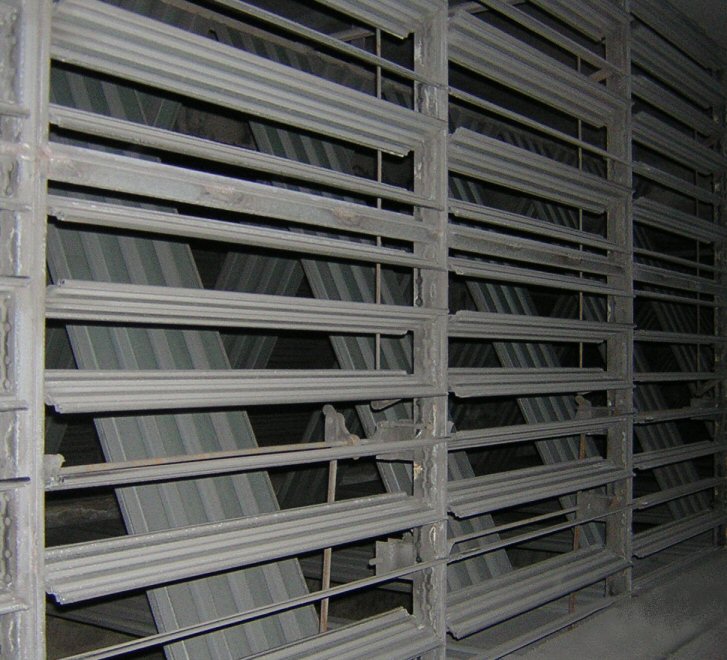

Automatic Flue Damper Product

Overview

An automatic flue damper is a motorized valve installed in the chimney flue pipe (or breached vent) between a heating appliance and the chimney. Its purpose is to prevent natural convection heat loss up the chimney when the heating system is idle. When a heating system (furnace, boiler, wood stove) cycles off at the end of a burn, the hot chimney continues to draw room air upward through the appliance and out the flue, carrying away sensible heat that could be retained in the home. An automatic damper senses when the appliance is active (either via ignition signal from the heating system or via flame-temperature sensing) and opens the damper blade to permit normal draft during combustion. When combustion stops, the damper blade closes, blocking the flue and stopping the heat loss.

An automatic damper is particularly valuable in older homes with natural-draft heating systems and in areas where heating costs are high. Retrofit installation is relatively straightforward—the damper Flue Collar Mount is bolted onto the flue pipe, the motor and linkage are attached, and electrical connections are made to the heating system's control circuit. In new construction, some high-efficiency boilers and furnaces include integral dampers.

The Damper Blade Assembly is a lightweight steel disc (~1/4 inch) that rotates ~90 degrees to transition from fully closed to fully open. A Safety Interlock Switch prevents the heating system from attempting to ignite if the damper fails in the closed position—a critical safety interloc because attempting combustion in a sealed flue risks explosive pressure buildup.

How it works

During heating mode: When the Actuator Motor Assembly is de-energized, the Damper Blade Assembly rests against a stopper in the closed position. The flue is sealed, and no convective heat escapes.

When a heating demand arrives (room thermostat below setpoint, or programmable controller sending signal), the heating system's ignition control energizes a relay that simultaneously:

1. Energizes the Actuator Motor Assembly, which begins rotating via the Gear Reducer.
2. Sends a signal to attempt ignition (spark electrode or hot-surface igniter).

The Gear Reducer slowly rotates the motor shaft, and the Drive Linkage Assembly (a mechanical drive rod and crank arm) pushes the Damper Blade Assembly toward the open position. This rotation occurs over ~30–60 seconds, allowing time for flue temperature to rise and combustion to establish. A Flame-Out Detection Switch mounted on the damper collar detects when the blade reaches the fully open position; this switch then closes a circuit that permits the heating system to begin ignition sequence.

As combustion begins and flames burn, hot gases ascend the chimney, and the Bimetal Sensor (a sensor clamped to the flue pipe) detects rising temperature. This confirms that the heating system is firing successfully.

During idle mode: When the heating system cycles off (room temperature reaches thermostat setpoint, or program timer ends), the ignition signal stops. The Actuator Motor Assembly is de-energized. A spring or mechanical detent in the Drive Linkage Assembly causes the Damper Blade Assembly to slowly return toward the closed position. This closing occurs gradually (not abruptly), which is important—a sudden closure can create a temporary pressure spike in the flue that might reverse draft and spill combustion gases into the home if the heating system is still hot.

As flue temperature drops below the combustion temperature threshold (~50–80°C, depending on sensor calibration), the Bimetal Sensor contracts and triggers the Snap-Action Switch, confirming that combustion has ceased. This temperature drop is a safety confirmation that the damper should be fully closed.

Safety interlocks: If the damper motor or linkage fails and the blade remains stuck in the fully closed position, the heating system attempts ignition, but gases cannot escape up the flue. Pressure builds rapidly inside the heat exchanger and flue pipe. A safety Interlock Switch mounted on the damper collar is mechanically linked to the blade position; it remains open (deactivated) until the blade reaches the fully open position. If the blade stalls or fails to open, the interlock switch prevents the heating system from energizing the ignition control, protecting against dangerous pressure buildup and potential furnace damage.

Conversely, if the damper blade fails in the fully open position (motor jams), convective losses resume, reducing efficiency but not creating a safety hazard. Most systems detect this via the Flame-Out Detection Switch failing to signal "damper open," which can trigger an error code or alarm.

Installation and control

The Flue Collar Mount is mounted on the flue pipe 12–24 inches above the heating appliance. The pipe is typically cut (in retrofit) or installed with a threaded collar, and the damper unit is bolted with stainless-steel hardware (rust-proof, as the location is damp and corrosive).

Electrical wiring connects the Actuator Motor Assembly to a control relay or circuit board, usually integrated into the heating system's main control. For older systems without integrated damper control, an aftermarket relay module can be added, triggered by the furnace ignition control signal or a separate thermostat.

Manual override: A manual lever or knob allows the homeowner to manually operate the damper blade in case of motor failure, enabling continued operation of the heating system (at reduced efficiency, with convective losses) until repair.

Maintenance and reliability

Annual inspection includes:

1. Checking the Damper Blade Assembly and Flue Collar Mount for soot and ash accumulation, which can prevent smooth blade rotation. A small brush or soft cloth cleans light deposits; heavy buildup may require professional flue cleaning.
2. Verifying that the Interlock Switch is mechanically positioned correctly and that electrical contacts are clean.
3. Listening to the Actuator Motor Assembly during operation; any grinding or squealing indicates bearing wear or gearbox misalignment.

The Gear Reducer is a wear item; brushes in the AC motor typically last 10–15 years before needing replacement. The automatic-flue-damper-torque-limiting-clutch is designed to slip if the damper blade encounters excessive resistance (e.g., soot blockage), protecting the gearbox from stall damage.

The Bimetal Sensor sensor can drift over time—recalibration is sometimes needed if the unit fails to respond to flame temperature properly. Professional service is recommended if the damper does not fully open or close within the expected ~45-second cycle time.

Efficiency gains and ROI

A typical retrofit automatic damper costs $300–800 installed. In a home with a ~10 kW heating load burning 1,500 hours/year (moderate climate), nighttime setback losses (damper open but furnace idle) waste ~5–10% of annual heating energy. At $10/million BTU (typical heating oil or gas cost in the northern US), this represents $200–500/year in preventable losses. A damper typically pays for itself in 1–3 years through reduced standby losses, especially in older drafty homes with significant convective loss when idle.

In new construction, integral dampers in high-efficiency boilers/furnaces are standard and cost-effective from the outset.
