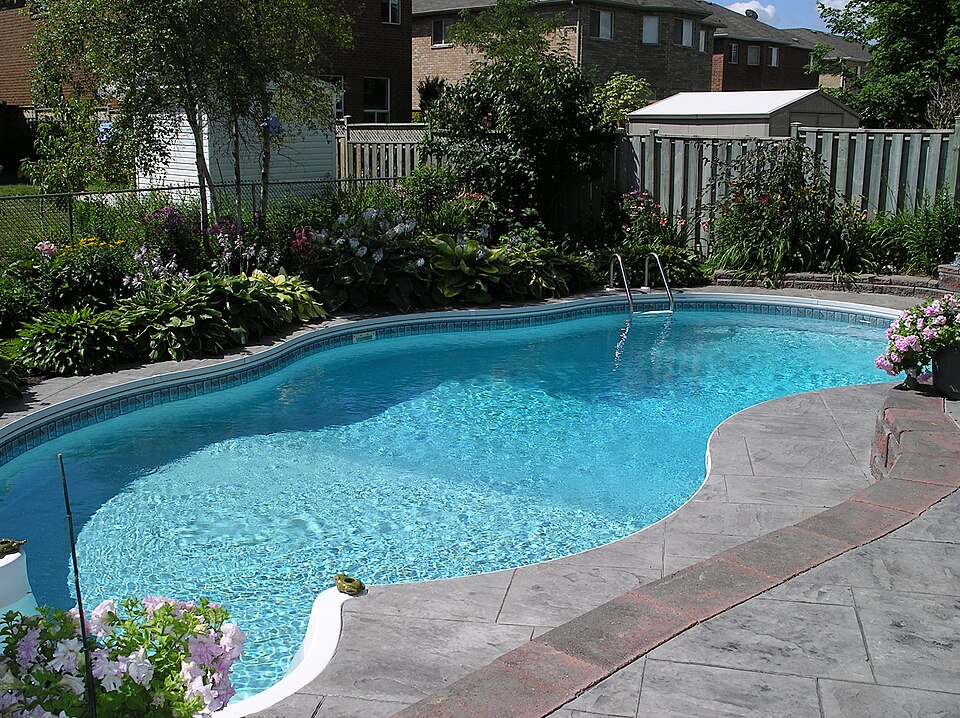

Automatic Pool Cover Product

Overview

An automatic pool cover is a motorized retractable sheet system that rolls pool water surface off and on via a driven reel mechanism, providing multiple benefits: reduces evaporation (10–30% annual loss prevention), limits thermal loss overnight (40–60% reduction), prevents debris entry, and improves safety by preventing accidental falls when retracted.

Unlike simple manual tarps or mesh covers, automatic systems use a Drive Motor & Gearbox (0.75–2 HP) and Gear Reduction Box to wind the heavy cover fabric (500+ kg when saturated) smoothly onto a Reel Barrel Spool, eliminating hand labor.

Fabric & Material

The Cover Fabric Material is typically 500–1000 µm reinforced vinyl (PVC) or polycarbonate, custom-cut to pool dimensions with a 1 m overlap on all sides. The material is UV-stabilized (outdoor lifespan 5–10 years) and colored dark blue or black (reduces light penetration, inhibiting algae growth).

Vinyl vs. Polycarbonate:

• Vinyl: Heavier (1.2 kg/m²), more durable to puncture, easier to patch, typical cost $20–30/m².
• Polycarbonate: Lighter (0.8 kg/m²), clearer (allows light through for daytime inspection), more brittle, cost $40–50/m².

The Edge Binding Tape (PVC tape) seals all perimeter edges, preventing water wicking. The Reinforcement Mesh (polyester grid embedded in vinyl) increases tear strength. Anchor Webbing at the pool edge allow anchoring with stakes during high winds.

Seam construction: Panels are overlapped or thermally welded during manufacturing. Multi-panel layouts (e.g., 20×40 ft pool) use 3–4 fabric strips joined end-to-end with double-weld seams for maximum strength.

Drive System

The Drive Motor & Gearbox (0.75–2 HP, 240V AC) is a single-phase induction motor with Electronic Soft Starter electronic soft starter reducing inrush current and mechanical shock. The motor drives a Gear Reduction Box (50:1 to 100:1 worm or helical gearbox) that slows motor shaft speed from 3450 RPM to 30–60 RPM at the Reel Barrel Spool, enabling controlled winding torque.

Motor duty cycle:

• Intermittent use: Motor runs 5–10 minutes per day (open/close cycle), allowing cooling between cycles.
• Thermal protection: Built-in thermistor or thermal switch cuts power if motor case exceeds 80 °C.

The Drive Shaft (stainless steel) connects gear reducer to reel, transmitting torque. Ball bearing support (pool-pump-reel-bearings) at the reel ends prevents shaft deflection under the 200–400 kg wet-cover load.

A Mechanical Brake Assembly (spring or friction type) prevents the reel from freewheel when motor is de-energized, holding the cover position safely.

Track Guidance

The Track Guidance System are anodized aluminum or stainless steel profiles (typically 2–3 inches tall × 1 inch wide) mounted on the pool deck edge and coping. The tracks guide Guide Roller Wheel attached to the cover's leading edge, keeping the fabric aligned during opening/closing.

Track mounting is critical: misalignment causes the cover to bind or bunch, jamming the drive motor. Typical layout:

• Two parallel tracks, one on each long side of the pool (20–40 ft length).
• Tracks secured to deck every 2–3 m with Track Mounting Bracket.
• Track End Stop (adjustable rubber bumpers) at the far end of each track prevent over-travel.

Water management during closure: As the cover moves across the pool, rainwater pooled on the surface is pushed toward the reel. The reel's top edge is typically raised 1 m above water level, keeping water off the dry side. Excess water drains via edge gutters into the pool or separate sump.

Control & Safety

The Control Unit & Interface is a wall-mounted or portable control box with:

• Push-button interface: "Open" and "Close" momentary buttons controlling motor direction.
• Key switch (Key-Lock Safety Switch): Safety feature disabling operation unless key is inserted and turned. Key is removable, preventing unattended operation.
• Limit switches (End-of-Travel Limit Switch): Mechanically actuated switches triggered at full-open and full-closed positions, cutting motor power and preventing over-travel damage.
• Manual override: Optional Manual Override Rope & Pulley (rope + pulley) enables hand-crank manual operation if motor fails.

Safety interlocks (firmware or hardwired relays):

• Motor cannot run if limit switch is already at travel endpoint (prevents jamming).
• If Drive Motor & Gearbox current spikes above normal (obstacle in path), overload relay cuts power after 3–5 seconds.
• Key lock is non-bypassable—without key, all motor commands are disabled.

Installation & Structural Support

Installation requires:

1. Deck preparation: Rout cable channels for electrical runs. Drill/anchor bolt mounting points for track brackets every 2–3 m.
2. Track installation: Mount aluminum tracks parallel and level along pool perimeter. Use laser level to verify alignment (critical for smooth operation).
3. Reel mounting: Install reel + motor assembly on heavy-duty brackets (Reel Support Bracket), typically at one pool end, elevated 1 m above deck. Reel weight (150–250 kg) requires substantial structural support—often bolted to concrete pad or building column.
4. Electrical: Run 240V power line from pool breaker to control box, then to motor. Soft starter is typically integrated into motor housing or mounted in control box.
5. Plumbing (water management): Install drain pipes/gutters directing pooled water to sump or municipal drain.

Total installation: 2–3 days, requiring crane or heavy lifting for reel assembly (typical weight 200–300 kg).

Maintenance & Operation

Before use:

• Inspect cover fabric for tears, especially at anchor points and welds.
• Check track for debris (leaves, dirt), sweep clean.
• Test limit switches: manually push the cover until you hear mechanical click (limit actuated), then power motor—it should stop automatically.
• Verify key switch locks and key removes cleanly.

Opening/Closing cycle:

1. Insert key, turn to "open" position.
2. Press "open" button. Motor runs, winding cover onto reel. Wait 5–10 minutes until automatic limit switch cuts power (or manually release button).
3. Reverse process: key to "close," press "close" button, cover unrolls across pool.

Weekly:

• Visually inspect fabric edge and track for debris accumulation.
• Listen for unusual motor noise (grinding, squealing = service needed).

Monthly:

• Clean track thoroughly with brush and compressed air.
• Inspect guide rollers for worn bearings (replace if dragging or binding).
• Test limit switches (power manual cycle, verify motor stops at endpoints).

Annually:

• Inspect motor bearings, listen for roughness (replace if noisy).
• Check soft starter (replace if cover opening/closing becomes jerky or slow).
• Apply light machine oil to track and roller bearings.
• Deep-clean cover fabric: rinse with fresh water, scrub with soft brush (remove algae if dark cover accumulated film).

Cover Lifespan: 5–10 years vinyl (depending on sun exposure and maintenance). Polycarbonate lasts 8–12 years but is more prone to brittleness in extreme cold.

Variations & Advanced Features

Motorized Multipost System: For very large pools (Olympic 50×25 m), covers are supported by internal motorized posts that raise/lower the fabric, preventing sagging under water weight.

Inflatable Covers: Alternative to rolling reel—bubble-pack plastic inflates via small air pump, rising to float on water surface. Lower cost ($1000–2000), but less durable (5-year lifespan), requires pump maintenance.

Smart/WiFi Controls: Optional add-on enabling smartphone app control (open/close cover from anywhere), logging open/close history, scheduling automatic closure at sunset.

Saltwater-Resistant Hardware: In coastal or high-salt areas, upgrade stainless steel components to 316-grade (marine-grade) for extended life.

Warranty: Typical 5-year motor/mechanical, 1–2 year fabric (wear item). Limit switches and bearings are consumables, replaced as needed.

Comparison: Automatic vs. Manual

Factor	Automatic	Manual
Initial Cost	$4000–8000	$500–1500
Daily Labor	<1 min (button press)	15–30 min (draining, storing)
Evaporation Reduction	40–60%	30–50%
Thermal Loss	40–60%	30–50%
Safety (child/pet)	High (prevents falls)	Medium (cover is removable)
Durability	5–10 years (motor service)	3–5 years (manual stress)
ROI (payback)	8–12 years (energy savings)	2–3 years (initial cost)

Most residential pools favor automatic systems if long-term ownership is planned; manual covers suit seasonal or temporary installations.
