AV Receiver Product
Sourcing — likely vendors
Real suppliers (🇮🇳 🇸🇬 🇨🇳); price, MOQ & lead time are estimates| Vendor | HQ | Specialty | Est. unit price | MOQ | Lead time |
|---|---|---|---|---|---|
| 🇨🇳Foxconn foxconn.com ↗ | Shenzhen, CN | Electronics contract mfg | $1,600 | 1,000 pcs | 6–10 wks |
| flex.com ↗ | Singapore | Electronics contract mfg | $1,500 | 1,000 pcs | 6–10 wks |
| dixoninfo.com ↗ | Noida, IN | Electronics contract mfg | $1,500 | 1,000 pcs | 6–10 wks |
| bydelectronic.com ↗ | Shenzhen, CN | Electronics contract mfg | $1,500 | 1,000 pcs | 6–10 wks |
| venture.com.sg ↗ | Singapore | Electronics contract mfg | $1,500 | 1,000 pcs | 6–10 wks |

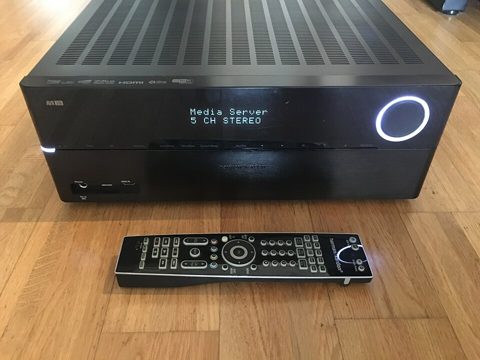

A 9.2-channel home-theater AV receiver with discrete Class-AB power amplification, HDMI 2.1 switching and video processing, audio DSP/room correction, wireless networking, FM/AM tuner, and a front display with setup metering. A full specification article for this item is being written. Meanwhile its bill of materials and connections are below.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labour product / assembly shared across products atomic part related product
Tap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
13 top-level lines · 76 rows shown · 1,097 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Chassis Assembly 4 parts | av-receiver-chassis | 1× | 1 | 10 | assembly |
| 1.1 | Sheet Metal Panel | sheet-panel | 4× | 4 | — | part |
| 1.2 | Aluminium Front Fascia | av-receiver-front-fascia | 1× | 1 | — | part |
| 1.3 | Isolation Foot | av-receiver-foot | 4× | 4 | — | part |
| 1.4 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 2 | Power Section 4 parts | av-receiver-power-section | 1× | 1 | 136 | assembly |
| 2.1 | Toroidal Transformer | av-receiver-toroidal-transformer | 1× | 1 | — | part |
| 2.2 | Main Power Board 5 parts | av-receiver-main-power-board | 1× | 1 | 133 | assembly |
| 2.2.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 2.2.2 | Bridge Rectifier | av-receiver-bridge-rectifier | 2× | 2 | — | part |
| 2.2.3 | Bulk Filter Capacitor | av-receiver-filter-cap | 4× | 4 | — | part |
| 2.2.4 | SMD Passive (R/C/L) | smd-passives | 120× | 120 | — | part |
| 2.2.5 | Connector | connector | 6× | 6 | — | part |
| 2.3 | Power Supply | power-supply | 1× | 1 | — | part |
| 2.4 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 3 | Amplifier Section 3 parts | av-receiver-amplifier-section | 1× | 1 | 417 | assembly |
| 3.1 | Power Amp Channel 4 parts | av-receiver-amp-channel | 9× | 9 | 46 | assembly |
| 3.1.1 | Bare PCB | pcb-bare | 1× | 9 | — | part |
| 3.1.2 | Output Transistor | av-receiver-output-transistor | 4× | 36 | — | part |
| 3.1.3 | Driver / Bias Stage | av-receiver-driver-bias | 1× | 9 | — | part |
| 3.1.4 | SMD Passive (R/C/L) | smd-passives | 40× | 360 | — | part |
| 3.2 | Amplifier Heatsink | av-receiver-heatsink | 2× | 2 | — | part |
| 3.3 | Wire Bundle | wire-bundle | 1× | 1 | — | part |
| 4 | Preamp / DSP Board 8 parts | av-receiver-preamp-dsp-board | 1× | 1 | 228 | assembly |
| 4.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 4.2 | Compute SoC Module | soc-module | 1× | 1 | — | part |
| 4.3 | Audio DAC | av-receiver-dac | 4× | 4 | — | part |
| 4.4 | Audio ADC | av-receiver-adc | 1× | 1 | — | part |
| 4.5 | Microcontroller | mcu | 1× | 1 | — | part |
| 4.6 | Analog Audio IC | av-receiver-analog-ic | 12× | 12 | — | part |
| 4.7 | SMD Passive (R/C/L) | smd-passives | 200× | 200 | — | part |
| 4.8 | Connector | connector | 8× | 8 | — | part |
| 5 | HDMI Board 6 parts | av-receiver-hdmi-board | 1× | 1 | 105 | assembly |
| 5.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 5.2 | HDMI Jack | av-receiver-hdmi-jack | 9× | 9 | — | part |
| 5.3 | HDMI Switch/Scaler IC | av-receiver-hdmi-switch-ic | 1× | 1 | — | part |
| 5.4 | Video Processor IC | av-receiver-video-processor | 1× | 1 | — | part |
| 5.5 | SMD Passive (R/C/L) | smd-passives | 90× | 90 | — | part |
| 5.6 | Connector | connector | 3× | 3 | — | part |
| 6 | Network Board 6 parts | av-receiver-network-board | 1× | 1 | 47 | assembly |
| 6.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 6.2 | WiFi/BT Module | av-receiver-wifi-bt-module | 1× | 1 | — | part |
| 6.3 | Ethernet Jack | av-receiver-ethernet-jack | 1× | 1 | — | part |
| 6.4 | Antenna | av-receiver-antenna | 2× | 2 | — | part |
| 6.5 | SMD Passive (R/C/L) | smd-passives | 40× | 40 | — | part |
| 6.6 | Connector | connector | 2× | 2 | — | part |
| 7 | FM/AM Tuner 3 parts | av-receiver-tuner-module | 1× | 1 | 32 | assembly |
| 7.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 7.2 | Tuner IC | av-receiver-tuner-ic | 1× | 1 | — | part |
| 7.3 | SMD Passive (R/C/L) | smd-passives | 30× | 30 | — | part |

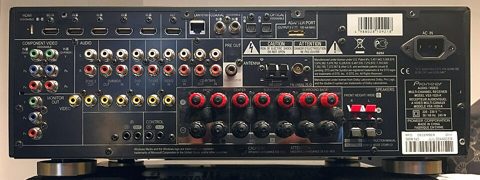

| 8 | I/O Panel 6 parts | av-receiver-io-panel | 1× | 1 | 44 | assembly |
| 8.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 8.2 | Speaker Binding Post | av-receiver-binding-post | 18× | 18 | — | part |
| 8.3 | RCA Jack | av-receiver-rca-jack | 14× | 14 | — | part |
| 8.4 | XLR Jack | av-receiver-xlr-jack | 2× | 2 | — | part |
| 8.5 | Digital Audio Jack | av-receiver-digital-jack | 3× | 3 | — | part |
| 8.6 | Connector | connector | 6× | 6 | — | part |
| 9 | Front Panel Assembly 9 parts | av-receiver-front-panel | 1× | 1 | 68 | assembly |
| 9.1 | LCD Panel | lcd-panel | 1× | 1 | — | part |
| 9.2 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 9.3 | Microcontroller | mcu | 1× | 1 | — | part |
| 9.4 | Volume Knob | av-receiver-volume-knob | 1× | 1 | — | part |
| 9.5 | Rotary Encoder | av-receiver-rotary-encoder | 1× | 1 | — | part |
| 9.6 | Button Set | av-receiver-button-set | 1× | 1 | — | part |
| 9.7 | IR Receiver | av-receiver-ir-receiver | 1× | 1 | — | part |
| 9.8 | Front Jack Set | av-receiver-front-jack-set | 1× | 1 | — | part |
| 9.9 | SMD Passive (R/C/L) | smd-passives | 60× | 60 | — | part |
| 10 | Cooling Assembly 2 parts | av-receiver-cooling | 1× | 1 | 2 | assembly |
| 10.1 | Blower Motor | blower-motor | 1× | 1 | — | part |
| 10.2 | Fan Duct | av-receiver-fan-duct | 1× | 1 | — | part |
| 11 | EMI Shield Set | av-receiver-emi-shield-set | 1× | 1 | — | part |
| 12 | Remote Control 3 parts | av-receiver-remote | 1× | 1 | 3 | assembly |
| 12.1 | Bare PCB | pcb-bare | 1× | 1 | — | part |
| 12.2 | Microcontroller | mcu | 1× | 1 | — | part |
| 12.3 | Remote Keypad & Housing | av-receiver-remote-keypad | 1× | 1 | — | part |
| 13 | Wire Bundle | wire-bundle | 4× | 4 | — | part |
