Reduced-Pressure Backflow Preventer Product

Overview

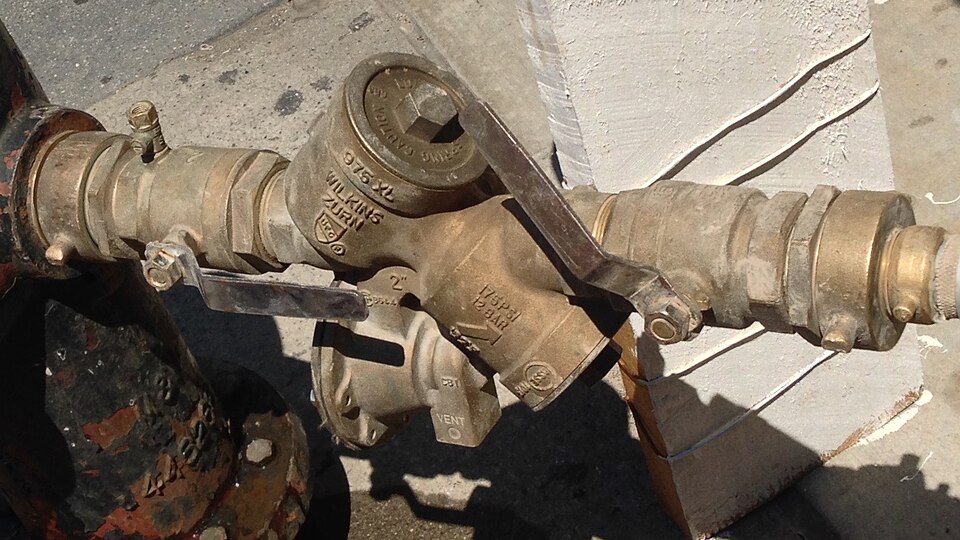

A reduced-pressure backflow preventer (RPZ, formally a reduced-pressure-zone assembly) is the highest grade of mechanical cross-connection protection used on potable water systems. It is installed where a water service feeds a high-hazard use — boiler feeds, irrigation with chemical injection, fire sprinkler systems, hospital equipment, industrial process lines — and its job is to make sure that water which has entered the building can never flow backward into the public main, even if every internal component fails at once.

Backflow happens two ways. Backpressure occurs when downstream pressure exceeds supply pressure, for example from a pump or a heated boiler. Backsiphonage occurs when the supply main goes negative, classically during a water-main break or hydrant draw. A single check valve guards against both only as long as it seals perfectly. The RPZ design assumes checks leak and adds a hydraulic watchdog: a monitored low-pressure zone between two checks, drained by a Relief Valve Assembly valve that fails open.

How it works

Water enters through the inlet Shutoff Ball Valve valve and the First Check Module, whose Coil Spring holds at least a 5 psi pressure drop. It then crosses the zone cavity inside the Body Casting and passes the lighter-sprung Second Check Module before leaving through the outlet shutoff. In normal forward flow the zone therefore sits at least 5 psi below inlet pressure — this is the "reduced pressure zone" that names the device.

The Relief Valve Assembly valve continuously compares the two pressures across its Relief Diaphragm: inlet pressure on one face, zone pressure on the other. As long as the zone stays more than 2 psi below the inlet, hydraulic force holds the Relief Valve Disc shut against its bias spring. If the first check fouls and leaks, zone pressure creeps up; the moment the margin shrinks to 2 psi the spring wins, the disc lifts off the Relief Valve Seat, and the zone dumps to atmosphere through the Air Gap Drain Fitting fitting. Contaminated water is discarded on the floor rather than pushed toward the main. If supply pressure collapses entirely, the diaphragm sees no differential at all and the relief valve opens wide, breaking any siphon path. The Air Gap Funnel is spaced at least two pipe diameters below the relief port so the discharge stream itself can never be re-aspirated — an air gap backstopping the mechanical valve.

A nuisance drip from the relief port is the assembly's built-in diagnostic: it means a check is fouled, typically by a grain of debris on a Check Disc or Seat Ring, and the assembly is telling on itself while still protecting the main.

Construction and serviceability

The Valve Body is cast in lead-free silicon bronze to meet NSF/ANSI 372 (≤0.25% weighted lead content). Both check valves are built as drop-in cartridges: a polymer Check Cartridge Frame carries the disc, spring, and seals as one unit that pulls out through the bolted Access Cover without unsweating the body from the line. The Check Disc is reversible, giving a second sealing face before replacement. Full-port Shutoff Ball Valve ball valves at each end allow isolation; their Valve Handles are lockable because an RPZ left valved-off defeats the protection it certifies.

Testing

RPZ assemblies are the only backflow devices most jurisdictions require to be field-tested annually by a certified tester. The four numbered ports of the Test Cock Set expose inlet, zone, and downstream pressures. With a calibrated differential gauge the tester verifies three numbers: the first check holds at least 5 psid, the second check holds at least 1 psid against backpressure, and the relief valve opens before the zone differential falls to 2 psid. Results are filed with the water purveyor; the serial number on the ID Nameplate ties the report to the installation. A failed test means cartridge replacement — a ten-minute job by design — followed by a retest.

Installation requirements

Codes (ASSE 1013, AWWA C511, and the USC Foundation for Cross-Connection Control's manual) constrain installation tightly. The assembly mounts horizontally with the relief port down, 300 mm to 1.5 m above grade, never in a pit — a flooded pit submerges the relief port and creates the very cross-connection the device exists to prevent. The floor drain under the Drain Tube must handle full relief discharge, which for a DN50 unit can exceed 10 L/s if the first check fails completely. Because the assembly permanently consumes about 75 kPa of head, designers size it into the hydraulic calculation rather than treating it as a fitting loss.
