Overview

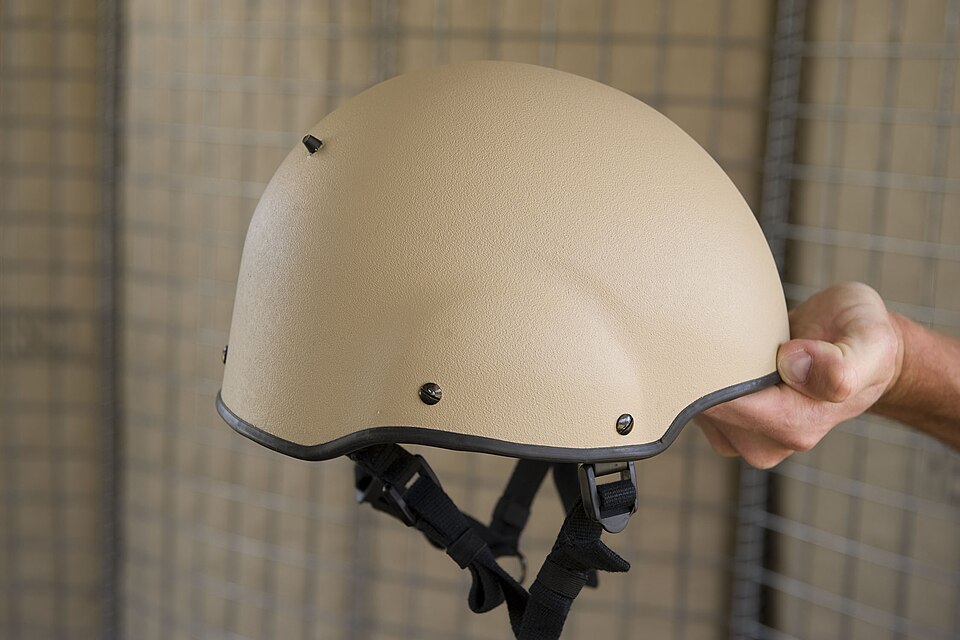

A ballistic helmet protects the head against fragmentation — historically the dominant cause of head wounds — and handgun-class bullets, while doubling as the mounting platform for night vision, lights, cameras, and hearing protection. The modern high-cut composite helmet described here (the ACH/FAST/Ops-Core class) weighs 1.0–1.4 kg, roughly the same as the steel helmets of the Second World War, while stopping threats steel never could.

A helmet is a system of six subsystems: the Shell Assembly provides ballistic protection, the Liner System manages impact energy, the Retention System keeps the helmet positioned, and the Accessory Rail System, NVG Shroud Mount, and Cover & Counterweight Kit adapt it to mission equipment.

Shell and ballistics

The Composite Shell is hot-pressed from 20–40 plies of ultra-high molecular weight polyethylene (UHMWPE, e.g. Dyneema) or aramid (Kevlar, Twaron) laminate. In a press at roughly 130 °C and high pressure, the flat ply stack is formed into a compound-curved shell 7–9 mm thick. UHMWPE has displaced aramid in premium helmets because it delivers the same protection at about 30% less weight, at the cost of lower heat tolerance and a defined service life as the polymer ages.

The shell defeats a projectile by stretching, delaminating, and spreading the load: plies near the strike face break fibers, while deeper plies pull the remaining structure into a deforming cone. The standard performance measures are the V50 — the velocity at which a 17-grain fragment-simulating projectile penetrates 50% of the time, at least 660 m/s for this class — and back-face deformation under a 9 mm round, capped at 25.4 mm so the deforming shell does not itself injure the skull. The "high-cut" geometry trims the shell above the ears, sacrificing some coverage for headset compatibility and less weight.

The laminate edge is sealed by the rubber Edge Trim against moisture ingress and delamination, and the Exterior Coating — a textured polyurea paint — provides abrasion resistance and low near-IR reflectance. Bonded Hook-and-Loop Field panels take patches and strobes. Every hole through the shell is a controlled penetration: hardware mounts with ballistic-rated shouldered bolts from the Fastener Set that seal their holes.

Impact liner and retention

Stopping the bullet is only half the job; the helmet must also manage the blunt energy of the event, plus falls, vehicle impacts, and blast. The Liner System does this with seven foam pads: a dual-density Crown Pad at the apex and six repositionable Perimeter Pads around the brow and nape. The foams crush progressively to keep peak head acceleration under 150 g in a 3 m/s impact. Each pad wears a wicking Pad Cover and attaches by Hook Disc so the wearer can tune fit, and the pad gap doubles as ventilation channels.

The Retention System is a four-point harness: Chinstrap Webbing legs run from four Retention Anchor Bolt points to a padded Chin Cup, closed by a glove-operable Quick-Release Buckle and trimmed by four Strap Adjusters. The Nape Pad cradles the occiput and pulls the shell down and back — the critical function once a night-vision device hangs off the brow, because an unbalanced helmet rotates forward and breaks the NVG's eye alignment.

Accessory interfaces

The Accessory Rail System bolts a curved Side Rail along each trimmed edge; standardized slots accept Rail Clip adapters for lights, strobes, and hearing-protection arms, and Bungee Loop cords give a mounted NVG backup retention and bounce damping. At the brow centerline, the Front Shroud provides the standard three-hole socket for NVG mounts, backed by the Shroud Backplate that spreads snag loads across the laminate, with a Lanyard Loop anchoring the device lanyard.

The Cover & Counterweight Kit finishes the system: a fitted Fabric Cover matches the camouflage pattern to theater, IR Tab markers identify the wearer under friendly night vision, the Elastic Band routes device cables, and the rear Counterweight Pouch carries 200–600 g of ballast to balance the NVG — bringing a fully rigged helmet to roughly 2 kg, which is why neck-load management drives current helmet design as much as ballistics.

Limits

A Level IIIA helmet does not stop rifle rounds; rifle-rated helmets exist but at significant weight cost. Laminate performance also degrades with age, UV, and solvent exposure, which sets the 5–10 year service life and the rule that a helmet which has taken a significant hit is withdrawn even if visibly intact.
