Bee Smoker Product

Overview

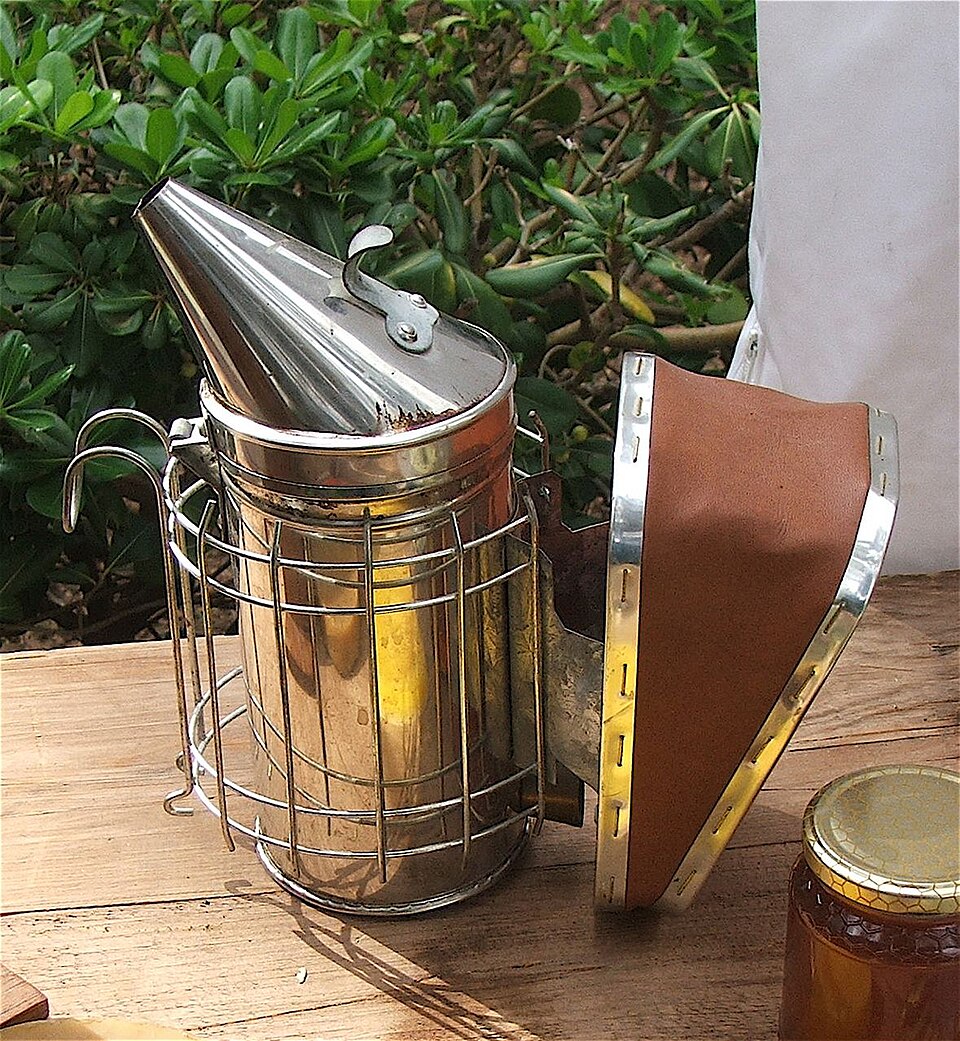

A bee smoker is a hand-operated device that produces cool smoke by burning wood, wood chips, or plant materials. The smoke is directed toward a hive entrance or into the hive itself, where it masks the alarm pheromone (isopentyl acetate) released by guard bees and foragers. Confused bees become docile, making hive inspections and manipulations safer and less aggressive for both bees and beekeepers.

The core principle is simple: smoke triggers a feeding response in bees (an evolutionary response to forest fire), and the masking of alarm signals prevents cascading aggression. Unlike chemical or electrical deterrents, smoking relies on behavioral conditioning and is harmless when used correctly.

How it works

The beekeeper fills the Fire Box through the Fuel Loading Lid with dry wood chips, pellets, or burlap. A match or lighter ignites the fuel inside the chamber. The beekeeper then operates the Bellows by squeezing and releasing the handle repetitively. The Intake Flapper Valve flapper opens on each expansion stroke to admit fresh air into the bellows pouch; the Discharge Flapper Valve opens on each compression stroke to push air into the Chamber Body.

The pressurized air is forced through the burning fuel, sustaining combustion and creating cool smoke. The Fuel Grate suspends the burning material above the Ash Pan, allowing air to flow underneath and exit as smoke through the Smoke Nozzle. The Nozzle Cap/Damper on the outlet allows the beekeeper to partially close the nozzle opening, controlling smoke velocity and volume.

The Heat Shield Cage, a cage of stainless-steel or copper mesh, surrounds the hot Chamber Body without direct contact, providing insulation to protect the beekeeper's hands and the bee suit from burns. The Main Handle and Hardware integrates the bellows lever and is angled for ergonomic operation: the entire assembly (bellows + firebox + shield) weighs 1–2 kg and can be held in one hand while the other manages the hive.

When the nozzle is directed at the hive entrance, the smoke enters the colony. Bees detect the smoke and instinctively move deeper into the hive, seeking nectar they imagine they will need to evacuate. Guard bees become less defensive, and the colony's alarm pheromone signal is drowned out by the soothing scent of smoke. Inspections can then proceed with minimal aggression.

Fuel and smoke characteristics

The ideal fuel is dry rotted wood, dry leaves, or pine needles—materials that smolder slowly and emit thick, white smoke without excessive heat. Commercial smoker pellets made from compressed wood or plant fibers burn predictably and cleanly. Poor-quality fuel (wet wood, plastic, treated materials) produces hot, acrid smoke that irritates bees and can scorch the hive.

Cool smoke (40–60 °C at the nozzle outlet) is important: hot smoke can scorch comb, crack wax cappings, and cook brood. The fire temperature inside the box may reach 200–400 °C, but continuous bellows operation cools the exiting smoke and directs the heat away from the nozzle.

Best practices

A well-maintained smoker should produce white, cool smoke for 10–30 minutes per fill with gentle, steady bellows strokes. Excessive or aggressive pumping heats the smoke and uses fuel quickly. The Ash Pan should be emptied between sessions to prevent ash compaction and to maintain good air flow on the next lighting.

Replacement Intake Flapper Valve and Discharge Flapper Valve flappers are common maintenance items and can be swapped without disassembly. The Bellows Pouch leather or canvas lasts years but may require re-coating or patching if cracks develop.
