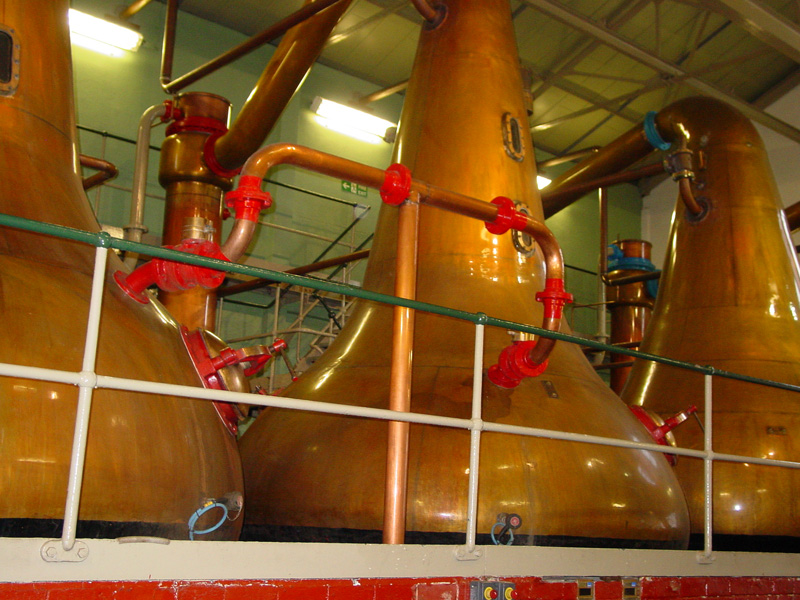

Overview

Beer still columns (also called rectification columns or stripper-rectifier towers) separate ethanol from water and congeners through fractional distillation. A 40-theoretical-plate column achieves very high separation: feed entering at 6–10% ethanol is fractionated so top product approaches 95% ethanol while bottom bottoms contain <0.1% ethanol and residual solids. The tower operates continuously: fermented broth from Industrial Ethanol Fermenter enters midway, rising vapors are condensed at the top, and liquid is recycled (reflux) to drive separation. Industrial beer stills process 100–150 L/h, yielding 10–15 L/h of high-purity ethanol.

Principle

Distillation exploits the difference in boiling points: water boils at 100 °C, ethanol at 78.4 °C at atmospheric pressure. When a mixture of ethanol and water is heated, vapor forms enriched in the more volatile component (ethanol). By cooling this vapor in stages and recycling it (reflux), a tower can progressively concentrate ethanol at the top.

The [[beer-still-column-reboiler|reboiler]] at the base provides heat, vaporizing liquid from the bottom tray. This vapor rises through the column, passing through each [[beer-still-column-trays|tray]]. On each tray, hot vapor condenses slightly (transferring heat to descending liquid) while cooler liquid evaporates (absorbing that heat). This countercurrent exchange is efficient: at each tray, the vapor becomes progressively richer in ethanol as it rises; liquid becomes richer as it descends.

The [[beer-still-column-condenser|condenser]] at the top cools exiting vapor below 78 °C, liquefying it. The [[beer-still-column-reflux-system|reflux pump]] returns most of this liquid back down the column. A portion (product) is diverted to collection. The reflux ratio (volume recycled / volume removed as product) is critical: high reflux (>5:1) gives pure product but low throughput; low reflux (2:1) is fast but impure.

Tower Staging

Theoretical plates are a measure of separation efficiency. One theoretical plate is equivalent to one complete vapor-liquid equilibration. A column with 40 actual trays typically achieves 35–38 theoretical plates (HETP = 25–28 cm, height equivalent to theoretical plate).

The feeding point is critical: it should enter at or near the middle of the column. Feed above the optimal point floods the stripping section below; feed below it underutilizes the rectifying section above. For beer distillation, plate 18–20 (slightly above middle) is typical.

Congeners & Flavor

Fermented beer/wine contains not only ethanol and water but higher alcohols (propanol, butanol at <0.5%), esters, and organic acids. These congeners have boiling points close to ethanol (60–100 °C) and do not separate well by simple distillation. A multi-stage column partially separates them:

• Heads (first ~5% of product): Contains acetaldehyde and light esters; often discarded or recycled.
• Hearts (main 90%): Clean ethanol with minimal congeners; the desired product for fuel or neutral spirits.
• Tails (last ~5%): Heavier alcohols and fatty esters; recycled back to fermentation.

For beverage-grade spirits, a second distillation (or a much taller 100+ plate tower) is required to achieve the purity and flavor profile demanded by law.

Heat Integration

The [[beer-still-column-reboiler|reboiler]] consumes steam (~100 kg/h at 3 bar = ~270 kW thermal energy), which condenses to hot condensate. In well-designed plants, this condensate heats feed, process water, or other units (waste heat recovery). The [[beer-still-column-condenser|condenser]] rejects ~150 kW to cooling water; in arid regions, cooling towers may be required.

Control & Operation

Manual operation requires:

1. Set reflux pump to desired ratio (typically 3–5:1).
2. Maintain reboiler steam at constant pressure to stabilize temperature.
3. Monitor [[beer-still-column-temperature-profile|column temperatures]]: top should be 78–80 °C, middle 85–90 °C, bottom 95–100 °C.
4. Periodically check [[beer-still-column-product-alcohol-meter|product strength]] (hydrometer or refractometer); adjust condenser or reflux if drifting.

Modern plants use automated loops: a [[beer-still-column-condenser-temp|PLC]] adjusts cooling water valve to hold top temperature at setpoint, and adjusts reflux pump speed to maintain product composition at target.

Startup

Columns require 30–45 minutes to reach steady state:

1. Feed is closed; reboiler steam is opened, gradually raising column temperature.
2. Condensate appears in the reflux boot; reflux pump starts, returning liquid to the top tray.
3. When top temperature stabilizes at 78–80 °C and product flow becomes steady, feed is slowly opened.
4. Composition stabilizes over another 10–15 minutes.

Shutdown

Reverse: close feed, run reboiler until column empties, close steam, allow cooling. Residual bottoms (high-boiling residue) are drained and discarded or recycled to fermentation.

Integration

Industrial Ethanol Fermenter → Distillation Column (Beer Still) (primary distillation, 90–95% ethanol) → Molecular Sieve Dehydrator (final dehydration to 99.5%+ for fuel or neutral spirits) → storage/blending.

For beverage production (whiskey, vodka), a second distillation column or copper pot still with plate inserts is used to further purify and develop flavor.

Troubleshooting

Flooding: If liquid is carried up past a tray without draining to the downcomer (usually indicated by visible foam or temperature inversion), reduce reboiler duty or increase reflux.

Weeping: Trays pass vapor without bubbling (too low vapor rate); increase reboiler duty.

Off-spec product: Usually caused by insufficient reflux or sloppy reboiler level control; check steam pressure stability and reflux pump operation.

Condenser capacity: If top temperature climbs above 80 °C even with cooling water wide open, fouling inside condenser tubes is likely; chemical cleaning required.
