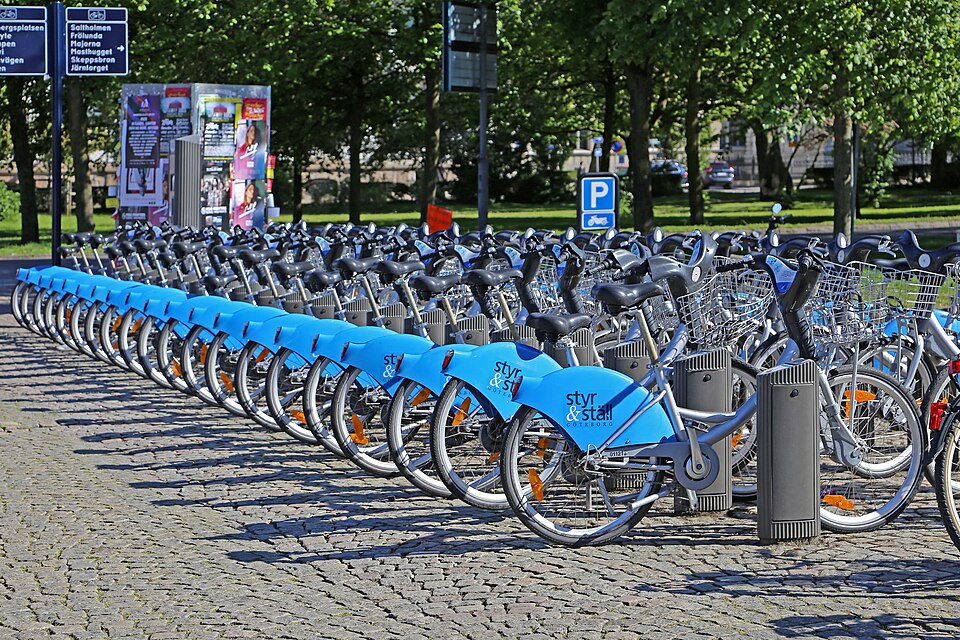

Bike Share Docking Station Product

Overview

A bike-share docking station is an automated public infrastructure appliance that stores, secures, and dispatches bicycles to users on-demand. Unlike traditional bike racks (which anyone can access), bike-share docks are tied to a membership system: users unlock bikes via a mobile app or card swipe, ride them, and return them to any dock in the network.

The [[bike-share-dock-post|central steel post]] (2.5–3 metres tall) carries 10–20 individual [[bike-share-dock-wheel-holders|docking arms]], each with a motorised [[bike-share-dock-frame-lock-arm|frame lock]]. When a user initiates a rental via the [[bike-share-dock-kiosk|kiosk touchscreen]] or mobile app, the system releases the lock on an available bike; the user pulls the bike out and cycles away. Upon return, they re-dock the bike at any station in the network, and the lock automatically engages.

The station runs on [[bike-share-dock-power-solar|solar power and battery]], making it autonomous and deployable without grid infrastructure. Real-time [[bike-share-dock-communications|cellular connectivity]] reports occupancy, lock status, and maintenance needs to a central fleet management platform.

Bike-share networks are deployed in cities worldwide (Citibike, Lime, Voi, etc.), enabling convenient single-trip mobility without car ownership.

How it works

A prospective user opens the bike-share mobile app (or approaches the kiosk at a dock) and selects "Unlock bike." The app queries the central fleet server, which checks user account status, payment method, and membership tier.

If the user is valid, the backend server sends an unlock command via [[bike-share-dock-communications|cellular modem]] to the target dock. The [[bike-share-dock-microcontroller|edge controller]] receives this command and energises the solenoid on the desired bike's [[bike-share-dock-frame-lock-arm|frame lock arm]]. The solenoid pulls the latch mechanism, retracting the frame clamp and releasing the bike. A [[bike-share-dock-speaker-buzzer|beep and LED indicator]] confirm release.

The user lifts the bike from the [[bike-share-dock-wheel-holder-cup|wheel holder cup]] and rides away. A [[bike-share-dock-position-detection|sensor]] detects that the bike is gone and notifies the backend, deactivating the ride timer and beginning the billing clock.

When the user reaches their destination, they approach any dock in the network and manually place the bike into an available [[bike-share-dock-wheel-holders|wheel holder]]. The [[bike-share-dock-position-detection|proximity sensor]] detects the bike in the correct position, and the [[bike-share-dock-frame-lock-arm|frame lock arm]] automatically swings or slides closed, clamping the frame. A [[bike-share-dock-lock-sensor|magnetic switch]] confirms the lock is engaged. The backend deactivates the ride, calculates the fare (distance, duration, user tier), and debits the user's account.

The [[bike-share-dock-power-solar|solar panel]] continuously trickle-charges the [[bike-share-dock-battery-pack|rechargeable battery pack]] during daylight; at night, the battery powers solenoids, sensors, and the controller. Modern docks are designed to function for 3–5 days without sunlight (in temperate climates), though operators typically top-up power via mobile charging units during low-battery alerts.

Lock mechanism and reliability

The motorised [[bike-share-dock-frame-lock-arm|frame lock arm]] is the critical component. Early designs used simple solenoid pins; modern systems favour swing arms or linear slides with mechanical detents. The detent is crucial: if power is lost mid-unlock, a spring-loaded [[bike-share-dock-mechanical-lock|backup latch]] holds the bike secure, preventing theft or accidental rollaway.

The lock must be fast (unlock in <1 second) and robust (withstand 500,000+ open/close cycles per year). Sealed ball bearings and hardened pivot pins are standard. Stainless steel construction resists corrosion from rain and road salt.

Lock failures (solenoid jam, latch corrosion, broken spring) are major operational hazards: users cannot unlock a bike, generating support tickets and bad reviews. Operators deploy preventive maintenance schedules (quarterly lock lubrication, annual solenoid replacement) and carry mobile repair kits to field-diagnose and swap failed units.

Docking arms and wheel holders

The [[bike-share-dock-arm-set|radial docking arms]] extend 0.6–0.9 metres from the central post, arranged in staggered rings to minimise tipping moment. A typical 15-bike dock has two concentric rings: 10 bikes on the lower ring (heights 0.6–0.8 m) and 5 on the upper ring (1.2–1.5 m). This stacking reduces ground footprint from ~50 m² (a flat rack) to ~20 m².

Each arm terminates in a [[bike-share-dock-wheel-holder-cup|V-shaped or U-shaped wheel cup]], which guides a bicycle wheel into the correct radial position. The cup is wide enough (100–150 mm) to accept typical 20–29 inch wheel widths without tilting.

A [[bike-share-dock-position-detection|proximity sensor]] (optical or inductive) mounted on the arm detects when a wheel is correctly seated. This prevents false-lock conditions (bike partially inserted, leaning out).

Kiosk and user interface

The [[bike-share-dock-kiosk|mounted kiosk]] provides three access modes:

1. Touchscreen (optional): A 7–10 inch capacitive screen displays available bikes, docking spaces, help text, and payment options. Users tap icons to rent or return.

2. Buttons: Large mechanical pushbuttons ("Rent" and "Return") for users without smartphones or those in a hurry.

3. QR Code Scanner: Reads a QR code shown in the mobile app, confirming the user and selected bike.

4. RFID/NFC Reader: Reads contactless payment cards or dedicated bike-share keyfobs (for users who prefer not to use a smartphone).

Once user identity is confirmed, the backend relays unlock/lock commands to the dock's controller. Audio feedback (beep, voice prompt) guides the user through the interaction.

Some modern systems add a small screen for displaying real-time bike availability at nearby docks, helping users decide whether to walk to this dock or try another.

Power and autonomy

The [[bike-share-dock-pv-panel|solar panel]] (100–200 W peak) and [[bike-share-dock-battery-pack|battery pack]] (100–200 Ah, ~1–2 kWh usable) provide autonomous operation. A typical dock locks/unlocks 10–20 times per day, consuming roughly 200–400 Wh. In sunny conditions, the 150 W panel generates ~600–800 Wh per day (accounting for angle, weather, season), easily covering demand.

In winter or cloudy regions, battery depletion becomes a concern. Operators deploy mobile charging vehicles (vans with large battery banks) to "top-up" docks once per week. Some operators also co-locate docks with AC grid power (near cafés, offices) for continuous trickle charging.

Battery chemistry matters: lithium LiFePO4 is preferred (longer cycle life, better low-temperature performance, 5–10 year lifespan) over lead-acid (1–3 year lifespan, heavier, susceptible to deep-discharge damage). However, lead-acid is cheaper and more field-repairable.

Network integration and fleet management

Individual docks are nodes in a city-wide network. The [[bike-share-dock-communications|cellular modem]] (4G LTE or 5G) continuously polls the backend server, reporting:

• Occupancy (bikes docked, spaces available)
• Lock status (locked, unlocked, error)
• Power level (battery %)
• Temperature
• GPS location

The backend runs fleet-balancing algorithms: if one dock is full and another is empty, the system may nudge users toward the empty dock (via the app) or dispatch a rebalancing truck to move bikes.

Real-time data also powers the public-facing map in the mobile app, showing users where bikes are available nearby. Maintenance alerts (low battery, lock failure, corrosion detected) are prioritised and dispatched to field technicians.

Failure modes and redundancy

Single points of failure are costly in a bike-share system. Common mitigations include:

• Dual SIM modems: If primary carrier fails, backup SIM takes over.
• Mechanical backup lock: If solenoid power fails, the bike remains locked until a technician arrives.
• Local caching: If the dock loses connectivity, it permits unlocks for a few hours based on cached membership data; transactions are later reconciled with the cloud.
• Redundant battery: Large docks sometimes carry a second battery pack for prolonged outages.
• Over-the-air updates: Firmware bugs are patched remotely; docks don't require physical service for software fixes.

Variants and design trade-offs

Lightweight docks (6–8 bikes, single column, 200 kg) are portable and suitable for temporary events or low-traffic locations. Heavy-duty docks (20+ bikes, reinforced foundation, 1000+ kg) serve transit hubs and downtown zones.

Some systems use proprietary multi-point locking (bike frame + wheel locked separately) for extra security. Others rely on a single frame lock, trusting theft risk is low in a well-monitored network.

Weather-sealed kiosks with sunshades or full enclosures are common in rainy climates (Seattle, Amsterdam, Copenhagen); minimal kiosks suffice in dry climates (Los Angeles, Phoenix).

Premium operators add features like helmet lockers, phone charging docks, and digital advertising screens on the post; others keep docks minimal to reduce cost and maintenance burden.
