Bobsled Product

Overview

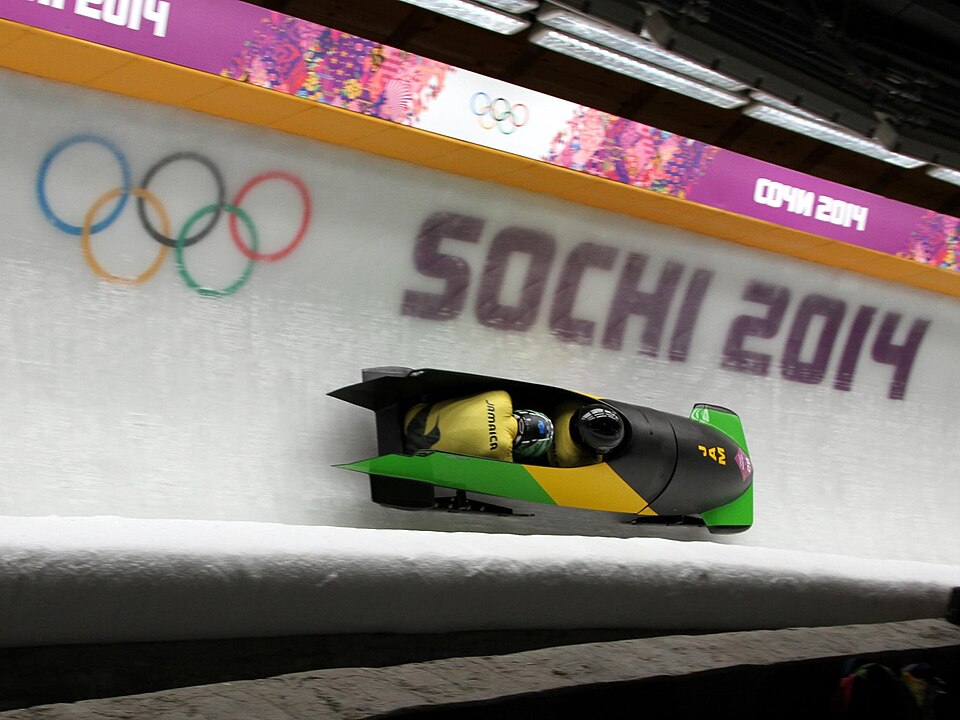

A bobsled is a gravity-powered racing sled designed for four or two athletes to descend icy race tracks (called bobsleigh tracks) at high speed, with the fastest time determining the winner. The modern bobsled combines a lightweight Fiberglass Cowling for aerodynamic efficiency with a sturdy Steel Frame structure, precision Runner Assembly blades, and a Steering System allowing the pilot to steer through the track's turns.

Bobsleigh racing emerged as a winter sport in the late 19th century, evolving from natural ice slides in Switzerland. The sport combines elite-level sprinting power (needed to launch the sled at the start), technical precision (steering and line through turns), and crew coordination. Competitive bobsled teams consist of a pilot (who steers), a brakeman (who operates the brake), and one or two pushers (who accelerate the sled at the start). The sport's Olympic history dates to 1924.

How it works

At the start of a race, the crew positions the Push Handles at a starting line. On signal, the pilot and pushers accelerate the sled forward, pushing with explosive force for approximately 50–60 meters. The brakeman jumps aboard as the sled transitions from the push zone to the track entrance. Once on the ice track, the pilot grabs the Steering System ropes and begins steering.

The Runner Assembly contacts the ice. The two runners are curved longitudinally (like skate blades) and create minimal contact with the ice, reducing friction. The pilot steers the sled through the track's curves by pulling the Steering Rope, which transmits force through pulleys to the front runners, rotating them left or right. The sled's momentum and gravity carry it downhill; the pilot's job is to find the optimal path (called "the line") through each turn, maximizing speed while maintaining control.

At the finish, the brakeman pulls the Brake Assembly, lowering a Brake Pad that digs into the ice, creating friction and slowing the sled. The crew slides across the finish line, and the elapsed time from start to finish is recorded.

Materials and aerodynamics

The Fiberglass Cowling is constructed from layers of fiberglass cloth impregnated with Cowling Resin, typically epoxy for strength and durability. The cowling is shaped to be as smooth and aerodynamic as possible; regulations specify maximum width (670 mm) and overall dimensions, but within those constraints, teams compete to optimize shape. Professional teams invest in aerodynamic testing (wind tunnels, computational fluid dynamics) to refine the cowling for minimal drag.

The Steel Frame is welded from chromoly or 4130 steel tubing, chosen for high strength-to-weight ratio. The frame is typically a rectangular or tubular structure providing attachment points for the cowling, seats, steering mechanism, and brake. Cross-bracing and gussets are strategically welded to resist torsion and bending loads.

The Runner Assembly consists of two curved steel runners, typically 1–2 mm thick and 40–60 mm wide. The runners are hardened steel, precision-ground to a sharp edge that contacts the ice. The Runner Profile is longitudinally curved (rocker) and cross-shaped, similar to luge or bobsled runners used worldwide. The runners are bolted or glued to the frame via Runner Mount, aluminum or steel brackets.

The Steering System uses a mechanical rope and pulley arrangement. The pilot pulls the Steering Rope, typically a Spectra or aramid high-strength rope, which routes through Steering Pulley pulleys and connects to a Steering Linkage. The linkage is pinned to a Steering Pivot at the front axle, allowing the front runners to rotate relative to the rear runners. Steering must be immediate and precise; elite pilots can react to ice imperfections and adjust line in real-time.

The Brake Assembly is a mechanical drag brake, not a friction brake like car brakes. A Brake Lever hand-operated by the brakeman pulls via a Brake Actuator Rod, lowering a Brake Pad onto the ice surface. The pad creates friction, slowing the sled. A Brake Spring returns the pad when the lever is released.

The Seat Cushion Set provides seating for the crew. The seats are typically fixed in position (not adjustable during a run), and cushioned for comfort during high-deceleration forces (bobsleds can experience up to 5 G during some turns). The Suspension Damper helps isolate the crew from vibration caused by track imperfections and the high-frequency oscillations of the runners.

Physics and performance

Bobsled racing is fundamentally about converting push power into speed, then maintaining that speed through turns while finding the optimal line down the track. The initial push phase determines much of the race outcome; teams that accelerate faster during the push gain a time advantage. Once on the track, the pilot's steering and the sled's design (weight, center of gravity, runner characteristics) determine how much speed is lost to friction and how efficiently the sled descends.

Friction between the runners and ice is ultra-low, similar to figure skates or curling stones. The runners cut into the ice surface, creating a thin water film that lubricates. Maintaining sharp runner edges and choosing runners optimized for the specific track conditions can provide measurable speed advantages.

Steering is not about sharp turns like a car; rather, it's about subtle line adjustments to maintain optimal path through the curves. Oversteering (angling the runners too much) increases friction and slows the sled; understeering risks hitting a wall. Expert pilots develop intuitive feel for the correct angle, honed through thousands of practice runs.

Weight is a performance factor: heavier sleds descend faster (gravity pulling harder), so teams try to approach the maximum sled weight while remaining maneuverable. However, excessive weight slows the push phase and makes steering less responsive.

Safety and construction standards

Bobsled sleds are subject to strict international regulations (Fédération Internationale de Bobsleigh et de Skeleton, FIBT). Regulations specify minimum and maximum weights, maximum width, required safety features (like roll cages in some configurations), and runner material and profile. These regulations ensure safety and maintain competitive parity.

Professional-grade bobsleds are hand-built by specialized manufacturers, with each component manufactured to tight tolerances. The Fiberglass Cowling is layered by hand (wet-laid) or via vacuum bagging to maximize fiber orientation and minimize voids. The Steel Frame is welded by skilled technicians and stress-relieved to remove residual stress. Runners are precision-ground to specifications.

Inspection and maintenance between races is rigorous. Runners must be inspected for cracks, edge damage, or dull zones; any defect is cause for runner replacement. The Steering System is checked for slack, the Brake Assembly tested for reliability, and all fasteners torqued to specification.

Cost and teams

A competitive bobsled costs $15,000–$50,000 USD or more, depending on whether it is built by a premium manufacturer or a custom builder. Professional teams often have multiple sleds available, allowing them to select the best sled for track conditions. Runners are expensive to replace and are often swapped between sleds to optimize for specific tracks.

Bobsled teams are supported by national Olympic programs or private sponsors. The sport demands elite-level sprinting power (many bobsledders are ex-track-and-field athletes), precision driving, and meticulous equipment maintenance. Success requires integration of all three factors: human performance, equipment design, and preparation.
