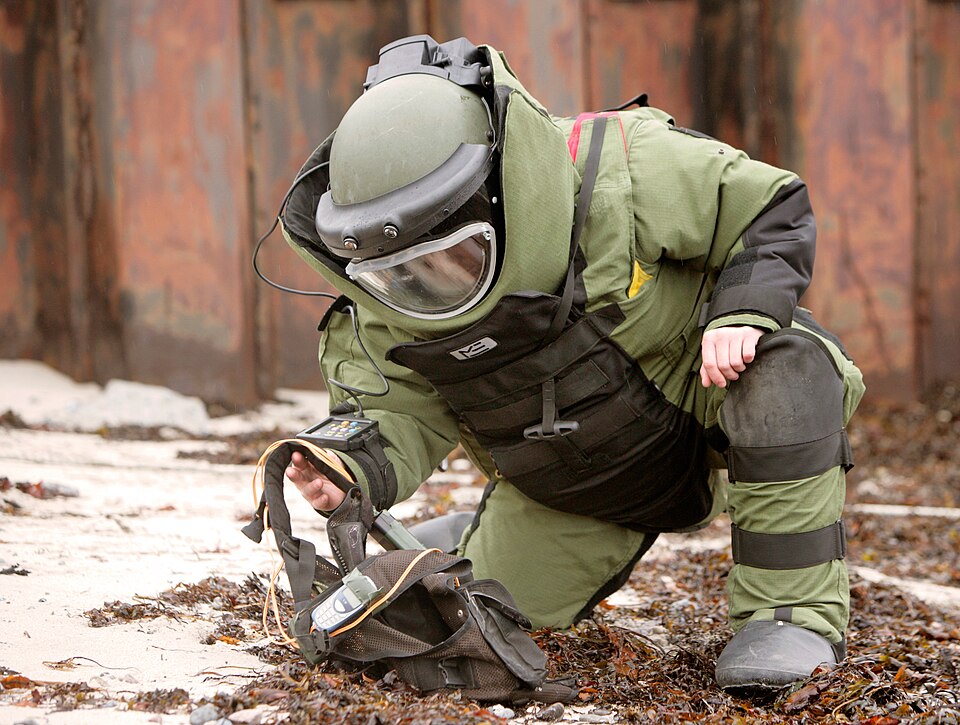

EOD Suit (Bomb Disposal Suit) Product

Overview

An explosive ordnance disposal suit, or EOD suit, is a full-body passive armor ensemble designed to protect a trained technician from blast fragmentation and pressure waves while they manually diagnose and render safe improvised explosive devices (IEDs), military ordnance, or suspicious packages in field and urban settings. Unlike traditional body armor worn by soldiers (which assumes the wearer will return fire), an EOD suit is purely defensive: the technician is stationary, hands-on, and deliberately placing themselves within the blast radius to perform precise, delicate work that no robot can yet replicate.

The suit's engineering problem is compound: it must stop high-velocity metal fragments traveling at several thousand meters per second (primary fragmentation from the explosive casing, secondary fragments from whatever the device is placed in or against), withstand the blast overpressure wave itself without the wearer becoming a casualty of blunt-force trauma, allow enough dexterity for the wearer to use hand tools and diagnostic equipment, and permit enough passive airflow to keep the wearer conscious and mobile during the 20–40 minutes a typical render-safe operation requires. The suit does not seal against chemical or biological agents, nor does it have powered life support; it is purely mechanical armor.

The core protection comes from the Aramid Fabric Layers: a multi-ply envelope of para-aramid fibers (Kevlar or Twaron) bonded to ultra-high-molecular-weight polyethylene (UHMWPE) laminate. The aramid weave catches and slows fragments; the PE layer distributes the impact energy across a wider area of the body. Hard-armor Chest Plate Assembly and Groin Plate Assembly assemblies, each featuring a ceramic strike face bonded to a resin and fiberglass backing, provide concentrated protection over vital organs (heart, lungs, major blood vessels, reproductive organs) where even a small fragment can be fatal.

How it works

The technician dons the Support Undergarment first—a moisture-wicking cooling mesh shirt and pants—then pulls on the Aramid Fabric Layers torso envelope. The Chest Plate Assembly is secured to the front via quick-release spring clips; the Groin Plate Assembly is suspended below it by adjustable straps. The Work Glove Pair and Boot Pair are donned last, along with the Helmet System.

The Helmet System is the most critical element. The Helmet Shell is an aramid or carbon-fiber composite skull cap rated to CBRN blast overpressure (typically 15–25 psi peak); the Helmet Liner is a foam-padded suspension system that cradles the head and neck, absorbing impact energy by controlled crushing. The Ballistic Visor is a multi-layer laminated polycarbonate shield that resists fragmentation penetration; unlike monolithic transparent armor (which can shatter all at once and send splinters into the eye), laminated polycarbonate flexes, absorbs energy, and keeps the wearer's face visible.

When a device detonates near the technician, the Aramid Fabric Layers act in concert. Primary fragmentation from the explosive casing hits the outer ripstop nylon, which tears on impact. The parallel-laid aramid plies underneath catch the fragment by friction and load-sharing: each fiber strains, but no single fiber fails; the fragment is slowed dramatically. The polyethylene laminate layers below the aramid then compress and absorb the remaining kinetic energy through plastic deformation. Blunt-force trauma—the shock pressure transmitted through the armor into the body—is mitigated by the distributed mass of the suit, the stiffness of the hard-armor plates (which shatter instead of denting, dissipating energy through ceramic fracture), and the air gaps and padding inside.

The Neck Collar and Sleeve Cuff Seal prevent fragments from entering at exposed joints, while the Joints & Interface Seals ensure the helmet and torso are interlocked without catching on field debris or suit components. The Ventilation & Cooling System maintains passive airflow through integrated Air Channel Ducting: air enters via the Breathing Hood Inlet at the front of the helmet and exits through Exhaust Port at the sides and rear, carrying moisture and some body heat away even in the stagnant conditions inside the suit.

The Tool Carriers & Attachments webbing and D-Ring anchors allow the technician to secure diagnostic tools, multimeters, cutting shears, and other implements to the suit exterior without removing them. Many modern EOD suits include attachment points for optional powered cooling vests or ice-pack inserts (the Cooling Vest Insert), which circulate cooling fluid or hold phase-change materials to counteract heat buildup during prolonged operations.

Limitations and reality

An EOD suit does not guarantee survival. The weight (70–85 lbs) and heat buildup—core temperature can rise 2–3 °F per minute in heavy exertion—mean a technician can only work safely for 20–40 minutes before needing to remove the suit, cool down, and recover. The suit is rated to NIJ Level IIIA/IV ballistic standards, which translates to protection against fragmentation and blast, but not against direct hits from high-velocity armor-piercing projectiles (which are not the threat in EOD work). The hard-armor ceramic plates are single-use: after a fragmentation hit, they shatter and must be replaced, because the ceramic matrix no longer possesses its original load-bearing properties.

The suit is deliberately passive—no fans, no powered cooling, no sealing. This means every movement generates noise; every breath is audible. Some older technicians preferred fully passive suits (no electronics) because electronics fail, while passive protection always works. Newer suits integrate powered cooling and optional communication headsets, but every addition increases weight and complexity.

The most dangerous moment for a technician is not the detonation itself (the suit protects against that), but the decision-making window before it: identifying what is inside the device, understanding the triggering mechanism, and deciding whether to proceed with manual render-safe or request a robot or a controlled detonation. The suit does not help with this judgment; only training, experience, and nerve do.

Standards and training

EOD suit design is governed by the National Institute of Justice (NIJ) ballistic resistance standards and ANSI/ASIS standards for explosive protective equipment. Military EOD technicians typically train for 18+ months before handling real devices. Civilian bomb disposal squads (airports, police departments, federal agencies) follow similar curricula. The suit is regularly inspected for wear, delamination of the fabric layers, cracks in ceramic plates, and loss of padding; it is certified and re-certified annually. After any detonation in the vicinity—even if no direct hit—the suit is returned to the manufacturer for nondestructive testing (often X-ray or ultrasound) to check for internal damage invisible to the naked eye.
