Overview

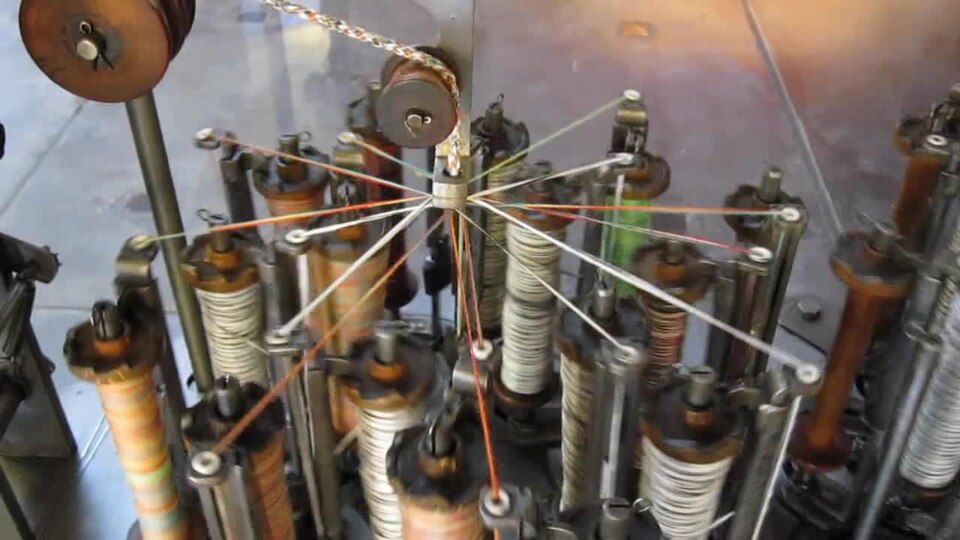

A braiding machine interweaves multiple strands of yarn in a diagonal cross-pattern to produce rope, cord, webbing straps, or reinforcing braid. The core mechanism is a circular or square track at the machine's center, driven by a motor and gearbox, along which precision carrier blocks slide in a precisely choreographed path. Each carrier holds a bobbin of yarn; as the track rotates, the carriers execute a pattern that causes their yarns to interlace over and under one another, progressively building the braided structure.

The Main Frame is a sturdy cast-iron base and head plate; the rotating Carrier Track drives 24–48 Bobbin Carrier Assembly through an interlocking path that determines the braid structure. Yarns feed from Yarn Feeder System that apply back-tension, pass through the carriers, and converge at the Former / Braiding Nozzle nozzle where they are compressed into the final cross-section. The finished braid is drawn away and wound by the Take-Up System. The Main Drive synchronizes all motion through a worm-geared power train; the Control Box allows the operator to dial in spindle speed, track speed, and take-up rate to match the yarn type and desired output density.

How it works

The key to braiding is the track-and-carrier geometry. A typical setup has 24 or 32 carriers equally spaced on a rotating track plate. The track contains a slot or rail pattern that forces carriers to follow a path: as the track rotates, the carriers move in and out radially, and also orbit around the center. The resulting relative motion between carriers is what causes their yarns to cross and interlace.

In a simple right-angle square pattern on a 24-carrier machine, the carriers divide into two groups of 12. One group passes in front of the center while the other passes behind; as the track rotates, each yarn alternately goes over and under its neighbors, building a four-ply structure. More complex patterns — eight-ply, twelve-ply, and twill variations — use different track geometries or timing, and are selected via the control system.

Each carrier is a precision block that slides smoothly in the track and holds a motorized bobbin spindle on a tensioner arm. The Track Drive Motor rotates the track at 30–120 rpm; the bobbin spindles themselves turn at a higher speed (up to 600 rpm) to unwind yarn. The dual-speed arrangement means the spindles are not directly geared; instead they are driven independently and timed by the control system so the yarn feed matches the interlace rate. If feed is too fast, the braid becomes loose and weak; if too slow, the yarn breaks under the crossing tension.

As the carriers weave, the interlacing yarns are drawn toward the center and exit through the Former / Braiding Nozzle nozzle. The nozzle is a conical or tubular steel guide that converges the yarns from the diameter of the carrier circle down to the width of the finished braid, compacting the interlace and defining the final cross-section. This is where the braid "densifies"; without the nozzle, the yarns would remain loose and separated.

The Take-Up System pulls the finished braid at constant speed. A capstan or friction roller pinches the braid against the take-up spool with just enough force to prevent slipping and regulate back-tension. If take-up is too slow, the braid backs up and distorts at the nozzle; if too fast, tension spikes and yarns break. Most modern machines have an encoder on the take-up spool that feeds length feedback to the control box, so the operator can dial in a target speed in m/min and the VFD continuously adjusts the motor to match.

Yarn dynamics and fiber types

Braiding accepts a wide range of yarn materials and weights. Polyester and nylon are most common for general rope and webbing; aramid (Kevlar) and glass fibers go into high-strength technical cords and electrical cable jacketing; stainless-steel or copper yarns produce conductive or decorative braids. The Yarn Feeder System apply tension with disc brakes, typically 2–8 oz per carrier depending on the fiber and yarn weight. Synthetic fibers are relatively stable; natural fibers like cotton and jute require care because humidity swings change their stretch and slipperiness, so tension must be watched on tropical or arid days.

Mixing different fibers in the same braid — say, nylon carriers with aramid accent stripes — requires different spindle speeds to equalize the linear feed rate. Because different fibers have different density, the same revolutions per minute unwinds different lengths. The control system can set per-carrier spindle speed, or operators can swap bobbins for lighter or heavier alternatives and adjust the single spindle speed parameter.

Maintenance and operating limits

The Main Drive and track gearbox run in recirculated oil and need regular draining and filter changes. The carrier track is subjected to radial forces from the yarn tension and the inertia of acceleration; wear in the bearings and track rails shows up as noisy motion or slight lateral wobble of the braid. At rates above 150 m/min, dynamic balancing of the track becomes critical, and typical industrial machines ship with a balanced track as standard.

Track speeds above 120 rpm become difficult to control; at 200 rpm and higher, the centrifugal force on the carriers demands stronger springs and closer tolerances. Most commercial machines max out at 120–150 rpm on the track, giving production rates of 100–200 m/min depending on carrier count and braid width. Custom high-speed braiders exist for narrow, light cords (sub-5 mm) where carrier inertia is minimal.
