Camera Jib Crane Product

Overview

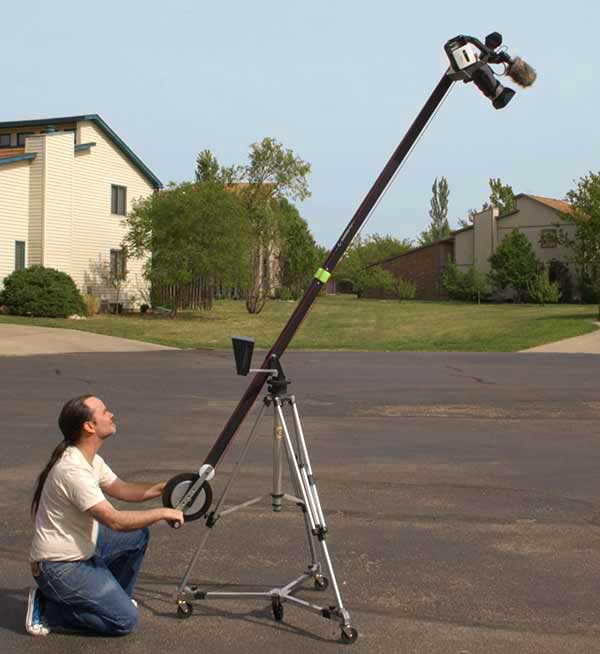

Jib cranes extend camera reach vertically and horizontally, lifting cameras above crowd level, over obstacles, or swooping down to dynamic eye-level framing. This model uses a telescoping boom arm (1.5 to 4 meters) balanced via an adjustable counterweight system and mounted on a tripod base. The articulated pan/tilt head allows independent horizontal and vertical camera pointing, while friction damping in the pan and tilt axes enables smooth operator-controlled motion without motorization.

The jib crane serves both drama (dynamic rising shots, overhead angles) and documentary (survey and reveal establishing shots). Unlike motorized sliders, the jib is purely operator-driven, making it responsive and intuitive on set. The counterbalance system is the core innovation: by sliding weights along a rear arm, the operator achieves neutral balance, reducing fatigue during long takes and enabling smooth, floating camera motion that looks like the camera is gliding.

How it works

Balance System

The boom arm is a cantilevered structure: the camera hangs from the front tip, and counterweights slide along a 2-meter arm extending backward. The pivot point is at the junction of boom and counterweight arm. Balance is achieved when the moment (torque) from the camera weight on the front equals the moment from the counterweights on the rear.

For example, a 10 kg camera mounted 3 meters from the pivot requires 30 kg·m of torque. Sliding a 10 kg weight 3 meters back cancels this moment, achieving neutral balance. In practice, the operator slides the Weight Carriage along the Counterweight Arm Rail and locks it in place with the Pinch Clamp Lever. Once balanced, raising or lowering the boom requires minimal force (typically under 5 kg push/pull).

Boom Structure

The Boom Sections telescope in three stages: a 2-inch primary section, 1.5-inch secondary, and 1-inch tertiary. Each section nests inside the next, extending the reach from 1.5 m (fully retracted) to 4 m (fully extended). Boom Lock Collar quick-action levers lock each segment in place. The boom is cantilevered off a Boom Pivot Bearing (tapered roller bearing) mounted on the tripod base, allowing the boom to be raised and lowered smoothly.

Pan and Tilt

The Pan/Tilt Head sits atop the boom tip and provides two independent rotation axes:

• Pan (horizontal): The Pan Shaft Assembly with Pan Friction Pad sintered bronze pads provides smooth 360° rotation. Friction damping is adjustable via a knob; operators set it so the camera holds position when released but moves smoothly under hand control.

• Tilt (vertical): The Tilt Shaft Assembly provides ±90° to −45° tilt (above and below horizon). Like pan, damping is adjustable.

Both axes use tapered roller bearings to support the camera weight and sintered friction pads to control rotational speed. There is no motor; the operator moves the head by hand via handles on either side of the pan ring.

Tripod Base

The Base Tripod Stand provides the foundation. Three extendable legs support the boom's cantilever load. Each leg telescopes in three stages (quick-lock collars at each junction), allowing the operator to adjust leg height from 0.9 m to 1.8 m. A Spreader Bar maintains triangular geometry, preventing legs from splaying.

The Leveling Head at the base is a hydraulic ball-pivot that allows fine leveling adjustment, critical for camera leveling in a shot. The operator uses a bubble level (mounted on the head) to verify the camera is level before rolling.

Cable Management

Video and power feeds to the camera run through the Cable Routing System system. Shielded power cables and video feeds are bundled inside spiral wrap and routed internally through the boom sections, emerging at the boom tip where they connect to the camera. At the tripod base, a Connector Panel provides XLR (power) and BNC (video) breakout connectors, allowing studio AC power and video monitoring to feed the camera via the crane cables.

Setup and Operation

Assembly takes 10–15 minutes. The operator extends and locks the tripod legs to the desired height, levels the base with the hydraulic head adjustment, and bolts the counterweight arm to the pivot. Next, the boom sections are extended to the desired reach and locked. The boom is not yet in equilibrium; it hangs downward under its own weight.

The camera is mounted to the Camera Mount Plate at the boom tip. The counterweight carriage is slid to a starting position and locked. As the operator raises the boom using the handle, weights are felt immediately if balance is off. The carriage is then slid forward or backward incrementally until the boom hangs neutral in any position.

Once balanced, the operator stands to one side, gripping the boom handle with one hand and panning the head with the other. Smooth boom raises, swings, and tilts are achievable with light pressure once balanced correctly.

Load Capacity and Reach

Maximum camera load is 15 kg at minimum boom extension (1.5 m). At full 4 m extension, capacity drops to 8 kg due to the moment arm increase. The counterweight stack provides up to 15 kg; heavier camera setups require repositioning the weights further back along the arm or using the shorter boom reach.

Limitations

The jib crane is operator-intensive: every motion requires hand control, and sustained holds (waiting for talent to hit a mark) cause operator fatigue even with perfect balance. Motorized versions exist but are more complex and expensive. The friction damping is fixed in set; smooth slow pans require operator finesse rather than mechanical consistency. Re-balancing for different cameras or lens changes is necessary and takes 2–3 minutes.

Boom reach is limited by the cantilever principle; extending further increases load and fatigue. A 4-meter boom is the practical limit for hand operation on set; longer booms typically use motorized systems or counter-rigging (cable and pulley systems for heavy cameras at great distance).

The tripod footprint at maximum leg spread is 2 meters; crowded sets may require compact leg positioning, reducing base stability. Sandbags on the tripod feet provide additional ballast in tight spaces.
