Camping Hammock System Product

Overview

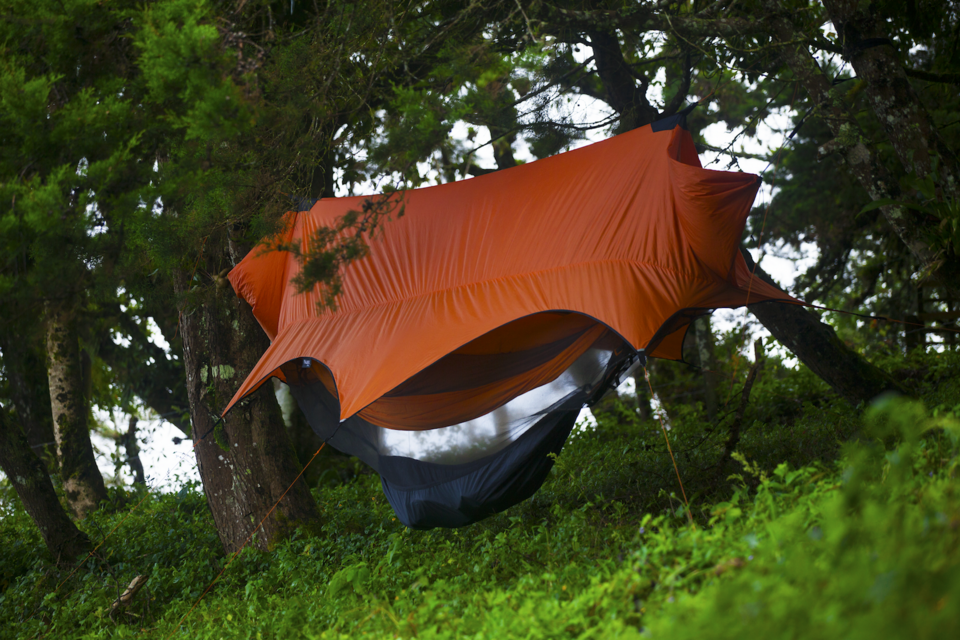

A camping hammock system replaces the tent with a fabric bed hung between two trees, a bug net around it, and a tarp above it. The whole kit weighs under 1.5 kg, pitches on slopes, rocks, and roots that would rule out any tent, and leaves no compressed footprint behind. Its constraint is equally simple: it needs two anchors 3–5 m apart, which makes it a forest shelter and a poor choice above the treeline.

Geometry: the 30° hang

Almost everything about hammock comfort follows from two numbers. The first is the strap angle: hung at about 30° from horizontal, the tension in each Tree Strap roughly equals the occupant's weight. Pull the hammock "nice and tight" toward horizontal and the same occupant generates several times that — at 10° the straps, the Continuous Loops, and the tree bark all see triple loads, and the bed becomes a tippy V that folds around the shoulders.

The second number is the lie angle. A gathered-end hammock is not slept in line with its axis; the occupant lies 25–30° across the diagonal of the Fabric Panel, which flattens the body posture to nearly horizontal. The Structural Ridgeline is what makes both numbers repeatable: a fixed Dyneema cord at ~83% of body length, it locks the sag to the same shape no matter how far apart tonight's trees are or how the straps are angled. It also serves as the interior gear loft via the Gear Loops.

Body and suspension

The bed is a single 40-denier ripstop panel rated to 180 kg, gathered at each end through a triple-stitched End Channel — the gather spreads load across the full fabric width, so there are no high-stress corners. A continuous loop of 7/64 in Amsteel cinches each gather and clips via a wiregate Suspension Carabiner into any pocket of the daisy-chain strap, giving length adjustment in 15 cm steps in seconds.

The straps are polyester rather than nylon for one reason: nylon webbing stretches several percent under sustained load, and a nylon-hung hammock that started at a comfortable height settles toward the ground by morning. The wide Tree Protector section keeps bark pressure below damage thresholds, a requirement written into many park hammock policies.

Bug net and rainfly

The Net Canopy uses no-see-um mesh at roughly 500 holes per square inch — standard mosquito netting stops mosquitoes but not biting midges, and a hammock camper's face sits centimetres from the mesh all night. The net runs along the ridgeline in its Ridgeline Sleeve so it stands clear of skin (a midge bites happily through mesh touching a cheek), zips around the perimeter with a double-slider Net Zipper, and seals at the gathers with Net Shock Cord.

The Fly Canopy pitches on its own Fly Ridgeline strung tree-to-tree above everything, independent of the hammock — it can go up first in rain and come down last. The hex cut covers body and suspension ends while the catenary edges let 20-denier silnylon pitch drum-tight; silnylon relaxes when wet, so each Guyline runs through a Line Tensioner for one-handed re-tensioning at midnight. Corners stake out with Tent Stakes, and Drip Lines on the straps break the water film that would otherwise wick down the suspension and pool in the bed — the classic beginner soaking, since the fabric itself is waterproof enough that the puddle stays.

The cold-butt problem

A hammock's signature failure is thermal, not structural. Compressed sleeping bag insulation under the body does nothing, and moving air strips heat from the underside far faster than ground does, so hammock campers feel cold at temperatures where ground sleepers are comfortable. Below about 15 °C the system needs either a foam pad inside the hammock or, properly, an underquilt hung outside the fabric where its loft cannot be compressed. The hammock itself is honest three-season equipment only with that addition.

Packing

The Bishop Bag is sewn to the hammock mid-panel and opens at both ends: the body stuffs in from either side while still clipped to the straps, so it never touches wet ground, and the bag simply rides the ridgeline during use. The fly packs separately in the Fly Sack, keeping a soaked tarp away from the dry bed and making the rain pitch order natural. Total pack volume is about that of a 1 L bottle for the body — the entire system disappears into a daypack's side pocket.
