Carbon Wheelset Product

Overview

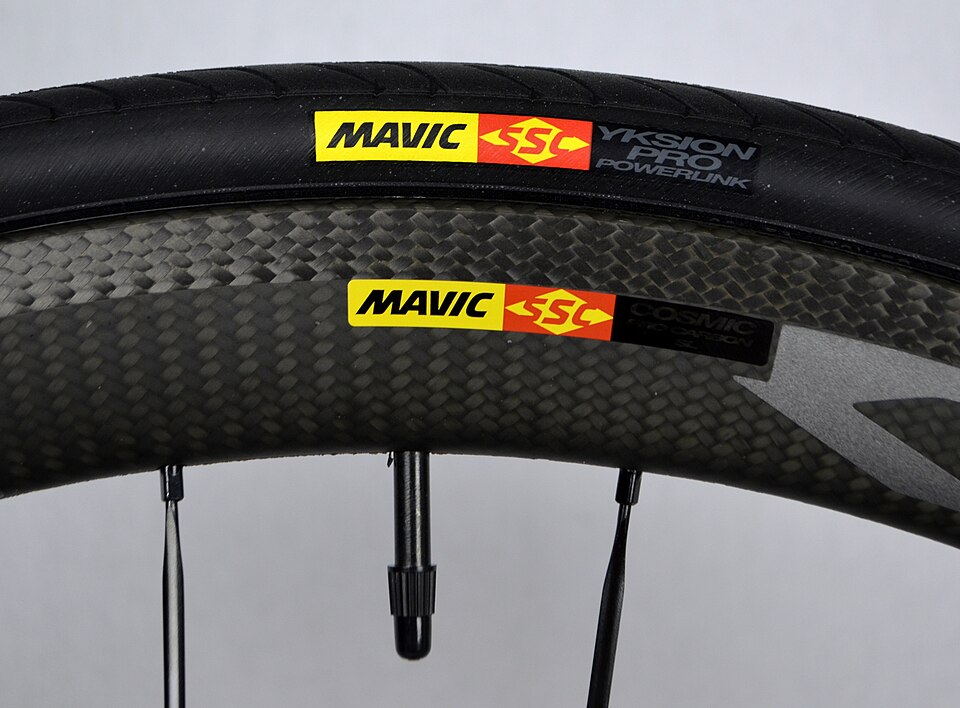

A carbon wheelset is a pair of high-performance wheels engineered for road cycling, featuring carbon-fiber rims bonded over lightweight aluminum hubs. Carbon rims deliver stiffness, light weight, and aerodynamic profiles that reduce drag in high-speed riding. Modern carbon wheels are a mainstream choice on road bikes (UCI professional peloton, sportive riders) and increasingly common on gravel bikes.

The typical carbon wheelset weighs 1200–1500 g for the pair (both wheels), roughly 20–30% lighter than aluminum wheels of equivalent stiffness. Aerodynamic rim profiles (35–50 mm depth) reduce drag by 10–20 watts at 40 km/h, providing a meaningful advantage in racing.

Construction and materials

Carbon rims are laid up with multiple layers of carbon-epoxy fabric, typically 3K (three-strand weave) or 5K (five-strand), woven in specific directions to optimize stiffness and impact resistance. A typical 50 mm depth rim uses 15–25 plies (layers), alternating between radial (vertical stiffness) and circumferential (lateral stiffness) orientations. Total rim weight is 300–350 g per wheel.

The carbon shell is bonded (with epoxy adhesive) to an aluminum insert (7075-T6, ~100 g) that provides the spoke bed and tire seat interface. This hybrid construction balances the light weight of carbon with the proven durability of aluminum where stresses concentrate (spoke holes, tire bead seat).

Rim profile ranges from shallow (35 mm) to deep (50 mm). Shallower rims (35–40 mm) offer lower weight and easier handling in crosswinds; deeper rims (45–50 mm) reduce aerodynamic drag but increase weight slightly and catch more wind in gusty conditions. Modern aerodynamic rims often use a "dropped shape" (concave trailing edge) to reduce drag while maintaining reasonable lateral stiffness.

Hubs are typically aluminum (6061-T6, weight 80–120 g each) with sealed ball bearings (6001 or 6003 size). High-end hubs use ceramic bearings (slightly lighter, lower friction) or carbon-layered shells for minimal weight. The rear hub includes a freehub body (Shimano HG or XDR standard) accepting cassette sprockets.

Spokes are stainless steel or aluminum, either round (traditional) or bladed (flattened, ~2× the thickness to reduce drag). Butted spokes (thicker at ends, thinner in the middle) balance weight savings with durability. A typical wheelset uses 32 spokes (24 or 36 possible), providing adequate strength while minimizing weight.

Nipples (spoke fasteners) are alloy (2618-T61) or titanium, weighing 1–2 grams each. Titanium nipples are lighter but more expensive and more prone to seizing if not greased.

Tubeless system: Modern carbon wheels are tubeless-ready, featuring a tubeless tape (polyimide or rubber) sealing the spoke holes and a grommet sealing the valve hole. The rim interior is taped and sealed; sealant (liquid latex) is inserted via the valve core, forming a liquid gasket that seals punctures.

Aerodynamic performance

Aerodynamic drag is a critical performance metric in road racing. At 40 km/h (11 m/s), wheel drag accounts for ~10% of total bike drag; at 50 km/h, it becomes ~15%.

A 35 mm rim profile produces ~3–5 watts of drag; a 50 mm rim produces ~8–12 watts. The difference (7 watts) equals ~0.5 km/h in a flat time trial—significant at elite level. However, wind conditions matter: a 50 mm rim catches side wind more aggressively, creating instability in gusty conditions.

Rim shape optimizes the aerodynamic boundary layer. Dropped (concave trailing edge) profiles reduce drag compared to traditional rounded shapes. Some manufactures use asymmetrical designs (non-round when viewed from behind) to balance drag and stiffness.

Spoke drag is minimized by using bladed (flattened) spokes aligned tangent to the wheel rotation. Bladed spokes reduce drag by ~10–15% per wheel compared to round spokes, but increase weight and cost.

Total drag reduction from a full carbon wheelset (vs. aluminum) is typically 20–40 watts across a full range of wind angles and speeds, worth roughly 1–2 km/h in a flat time trial.

Stiffness and ride quality

Carbon rims are stiffer than aluminum rims of equivalent weight, resisting lateral flex during hard cornering and sprinting. Stiffness is measured as deflection per unit force; a carbon rim deflects ~5–10 μm under 1000 N lateral load, compared to ~15–20 μm for aluminum.

Increased stiffness translates to faster, more responsive handling and slightly improved power transfer (less energy lost to rim flex). However, the gain is subtle and varies by rider input and road surface.

Ride comfort is often perceived as slightly harsher on carbon wheels, because the stiffer rim transmits more road buzz to the frame. Modern tire technology (wider, lower pressure, compliant casings) largely offsets this. Using a 28 mm tubeless tire at 80 psi on a carbon rim feels nearly identical to aluminum.

Durability and impact resistance

Carbon rims are susceptible to impact damage (pothole strikes, rail impacts) that can crack the rim and cause instant tubeless seal loss. A crashed aluminum rim can be straightened; a damaged carbon rim is typically unrepairable (no heat-treat process to restore integrity) and must be replaced.

However, carbon rims tolerate vibration fatigue well and have long fatigue life curves (>1 million cycles at 100 MPa stress). Aluminum rims can fatigue-crack after 5–10 years of heavy use; carbon rims rarely do.

Moisture ingress is a failure mode in deep-section rims. Water can seep into the carbon-aluminum interface, causing delamination (separation of layers) over 3–5 years. High-quality rims use conformal coating (hydrophobic resin) or sealed edges to prevent this.

Thermal cycling (freeze-thaw, temperature swings) can stress the carbon-aluminum bond. Rims stored in unheated garages may experience slower degradation. Most manufacturers rate carbon wheels for −10 °C to +50 °C storage and use epoxy formulations that tolerate this range.

Maintenance and repair

Spoke tension must be maintained. Spokes naturally relax (tension drops ~5–10% per year), causing wheel runout (wobble). Periodic truing (re-tensioning spokes) every 1–2 years keeps wheels straight. Spoke tension measurement can be done with a tension meter.

Bearing maintenance requires periodic cleaning and re-lubrication. Sealed bearings are sealed but not waterproof; water can enter from repeated hub immersion. Annual re-greasing extends bearing life from 3–5 years to 5–7 years.

Tubeless sealant must be refreshed every 3–6 months, as latex degrades and thickens over time. Fresh sealant ensures puncture sealing and maintains tubeless pressure retention.

Rim cracks are the catastrophic failure mode. A visible crack propagating from a spoke hole toward the rim edge signals imminent rupture. No repair is possible—rim replacement is required (cost $300–$600 per rim).

Standards and compatibility

Axle standards: Modern carbon wheels use thru-axles (12×100 mm front, 12×142 mm rear) with tapered bore interfaces. Older quick-release (9 mm) wheels are becoming rare.

Brake mounts: Road bikes use disc brakes (IS 2000 or post-mount standard). Carbon rims must be compatible with the hub's brake rotor interface.

Cassette body: Rear wheels use Shimano HG (11-speed and older) or XDR (12-speed, pressfit) freehub bodies. Installing a cassette on the wrong body type is impossible (physical mismatch).

Tire width: Modern road wheels accommodate 25–35 mm tire widths. Rim internal width (typically 18–25 mm) determines tire width range; narrow rims (18 mm) suit 25–28 mm tires; wider rims (21–25 mm) suit 28–35 mm tires.

Market and adoption

High-end carbon wheelsets (from brands like Enve, DT Swiss, Campagnolo, Specialized, Trek) cost $2500–$4500 per pair and are standard equipment on professional road bikes and high-end sportive bikes.

Mid-range carbon wheels ($1500–$2500) are now common on amateur race and sportive bikes, offering good value relative to cost per performance gain.

Entry-level carbon wheels ($800–$1500) target casual road riders; these often use shallower rims (35–40 mm) and slightly heavier layups, but still offer weight savings and durability.

Aluminum wheels remain the default for casual road riding, training bikes, and budget models due to lower cost ($400–$1000), lower impact damage risk, and simpler repair.

Gravel cycling is increasingly adopting carbon wheels, using wider rims (21–25 mm internal width) and shallower profiles (35–45 mm) to accommodate bigger, lower-pressure tires while maintaining light weight.

Latest trends include disc-braked carbon road wheels (now universal), tubeless-ready construction (standard on new wheels), and use of lighter carbon lay-ups with advanced materials (carbon nanotubes, aramid fibers) to push the weight envelope even lower (sub-1000 g for some ultra-premium wheels).
