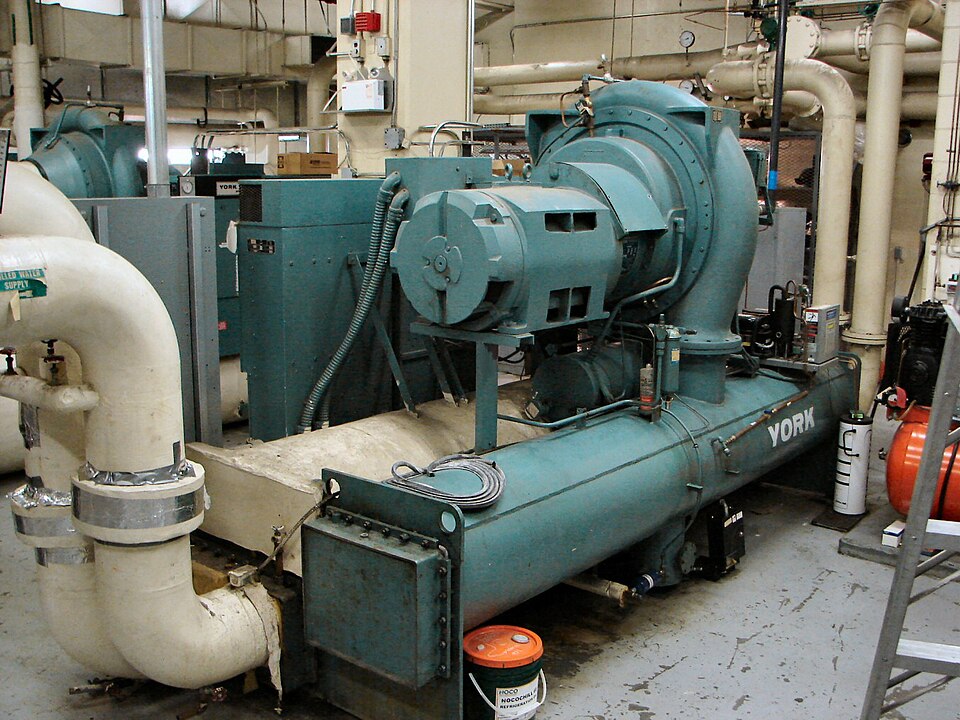

Centrifugal Chiller Product

Overview

Centrifugal chillers are large industrial refrigeration machines designed for central cooling plants in commercial and institutional buildings. Using a centrifugal compressor spinning at 8,000–15,000 RPM to compress low-temperature refrigerant vapor, these units produce chilled water (typically 44–50 °F) that circulates through building air handling units, coils, and terminal units to absorb space cooling loads. Capacities range from 100 to over 1,000 tons of refrigeration, making them suitable for office towers, hotels, hospitals, data centers, and manufacturing facilities. The chiller's shell-and-tube evaporator absorbs heat from the building return chilled water, while the equally large condenser rejects that heat plus compressor work into cooling tower water or once-through condenser water from a utility source.

Modern centrifugal chillers employ magnetic bearings (active or passive) that eliminate the need for oil-lubricated sleeve bearings, reducing mechanical complexity, improving efficiency, and lowering operating costs. Electronic controls with variable frequency drives (VFDs) allow the compressor to modulate from 10–100% capacity, matching actual cooling load without on-off cycling and dramatically reducing off-design energy consumption.

How it works

Evaporator operation: Warm return chilled water from building coils enters the evaporator shell side and flows across aluminum-enhanced copper tubes. The refrigerant liquid flowing inside the tubes absorbs sensible heat, evaporating into a superheated vapor. This low-pressure, low-temperature vapor rises into the compressor inlet. The chilled water exiting the evaporator is now 6–8 °F cooler and returns to the building distribution.

Centrifugal compression: The compressor impeller is a precision-cast aluminum or steel wheel with airfoil-shaped blades. Driven by a three-phase synchronous or induction motor at constant or variable speed, the impeller rotates at extreme velocity, imparting kinetic energy to the low-pressure refrigerant vapor and raising its pressure and temperature. The high-speed vapor is then decelerated in a diffuser, converting kinetic energy to static pressure. Magnetic bearings (versus oil-lubricated sleeves) allow higher impeller speeds, reducing compressor size and weight while improving efficiency.

Condenser heat rejection: The hot high-pressure discharge refrigerant flows into the condenser shell. Cooling water (from a cooling tower or utility supply) circulates through the internal tubes. Heat and pressure caused the refrigerant to condense into liquid at the bottom of the condenser. Liquid is then subcooled and stored in an economizer (subcooler) circuit before flowing to the expansion valve.

Expansion and modulation: An electronic expansion valve meters refrigerant back to the evaporator, maintaining a constant superheat in the compressor inlet vapor. Inlet guide vanes (variable geometry diffuser) modulate the compressor displacement without requiring unload cycles, allowing the machine to turn down to 10–20% capacity and still operate efficiently.

Oil and safety systems: A small charge of synthetic refrigerant oil circulates with the refrigerant, lubricating the motor bearings (in oil-flooded designs) or the magnetic bearing actuators. Pressure relief cartridges protect the high and low-pressure sides against overpressurization. Float switches on the evaporator shell detect low refrigerant charge and trigger an alarm or shutdown.

Subsystems and efficiency

Centrifugal Compressor is the most complex component; magnetic bearings eliminate mechanical losses of conventional journal bearings. Evaporator Shell-and-Tube and Condenser Shell-and-Tube are both large shell-and-tube units, often with enhanced or finned tubes to maximize surface area. Compressor Motor is typically rated 100–500 kW; VFD modulation of motor speed proportionally reduces compressor capacity and energy draw, achieving part-load efficiency superior to reciprocating or screw compressor systems.

Common failures

Bearing wear in oil-flooded units appears as increasing vibration and noise; magnetic bearing models are more robust but require precision alignment. Tube fouling (algae, sediment, corrosion product deposits) reduces heat transfer and is removed via chemical or mechanical cleaning. Refrigerant leaks at solder joints or shaft seals require evacuation, pressure testing, and repair before the chiller can restart. Non-condensable gases (air or nitrogen) in the refrigerant circuit increase discharge pressure and reduce capacity; the system must be evacuated and purged.

Installation and commissioning

Large centrifugal chillers arrive factory-charged and tested, requiring field connection of chilled water supply and return, condenser water inlet and outlet, electrical power (often dedicated transformer and soft-starter or VFD), and control signal wiring to the building automation system. The chiller is mounted on elastomer isolation feet to prevent vibration transmission. Commissioning includes a system charge verification via sight glass, refrigerant pressure testing, water flow rate measurement, and capacity confirmation under partial and full load.

Seasonal operation and integration

In northern climates, the centrifugal chiller operates spring through fall, shutting down during winter when outdoor temperatures allow waterside economizing. The chiller integrates into a central plant alongside cooling towers, pumps, expansion tanks, and strainers. Load profile monitoring through chilled water supply temperature feedback enables the plant optimizer to stage multiple chillers on and off, balancing efficiency with redundancy.
