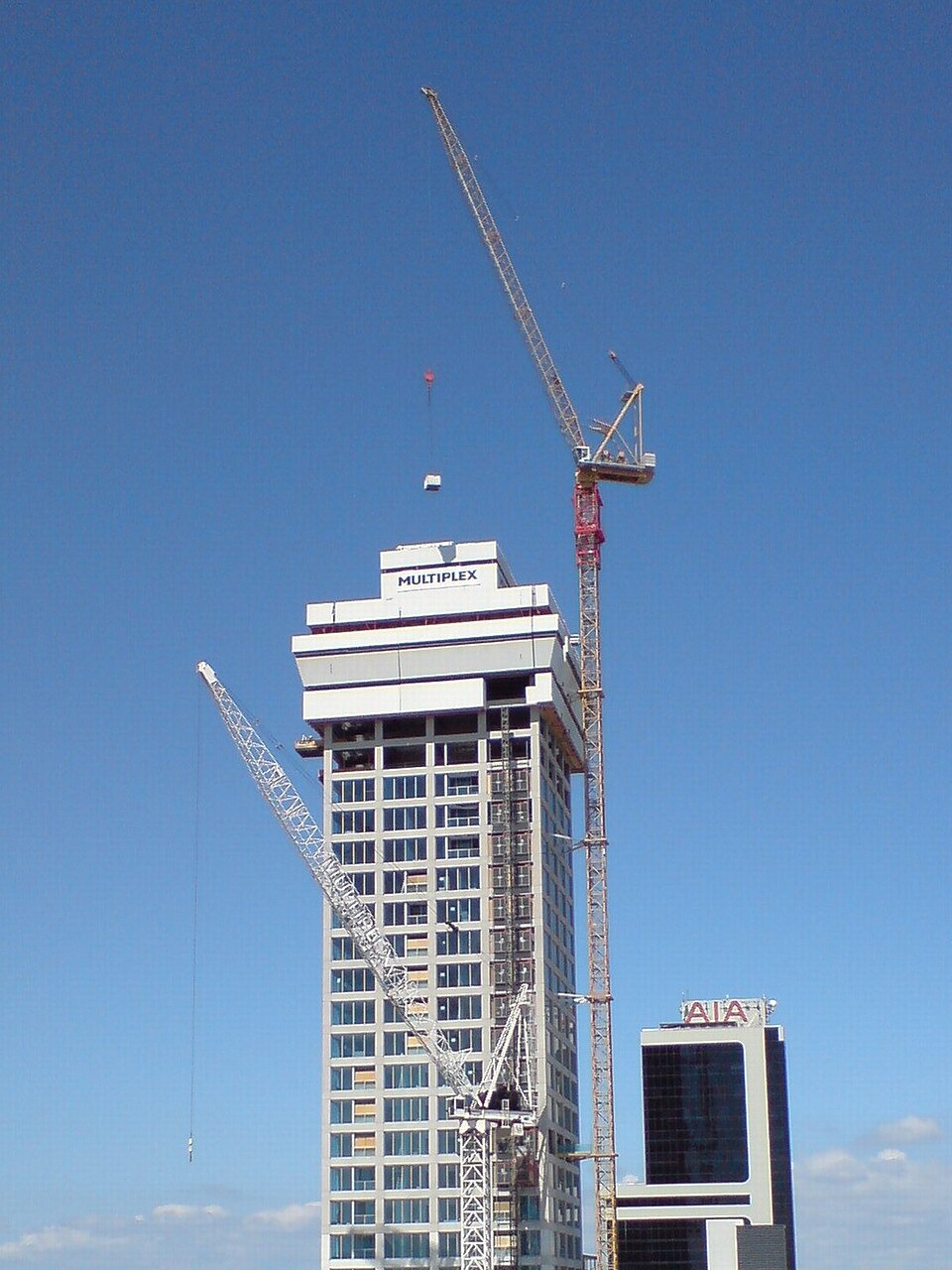

Climbing formwork is a self-advancing facade formwork system designed for repetitive concrete casting in high-rise buildings, particularly for core walls, curtain walls, and full-facade construction. Unlike traditional hanging or cantilevered formwork, climbing systems anchor directly to the structural concrete already cast, and hydraulically jack themselves upward after each pour, repeating the cycle over many floors. This method is economically dominant in tall-building construction worldwide because it minimizes crane usage, reduces labor, and achieves extremely high concrete finishing quality through standardized panel geometry and proper release agents.

The system comprises four interlocking components: a main structural frame carrying formwork panels and work platforms, hydraulic jacks that lift the frame, climbing shoes that anchor to embedded lifting points in the concrete, and vertical guide rails that maintain plumb alignment during ascent. A single climbing formwork set typically handles 300–500 m² of facade per building (reused over 15–25 floor climbs), generating significant cost savings compared to re-erecting temporary shoring at each level.

Frame Design & Structural Logic

The Main Frame Assembly is the load-carrying backbone, typically a welded steel box or lattice structure 3–5 m tall and 2–4 m wide. It must be stiff in all directions because it holds fresh concrete (live load 15–25 kPa), resists wind (1.2–1.6 kPa), and supports worker activity. To achieve high torsional rigidity without excessive weight, the frame is designed as a torsion-box—essentially a hollow box beam with internal cross-bracing—rather than simple portal frames.

The Vertical Frame Posts form the outer edge of this box, typically 300–400 mm box sections or channels. The Horizontal Cross-Members cross-brace the verticals at 0.75–1.0 m spacing, and the Torsion Box Structure completes the box with internal diaphragms or plating. This geometry is critical: without torsional stiffness, uneven concrete placement or wind gust causes the frame to twist, leading to plumb loss and panel misalignment.

Dead load of a typical 3 m × 3 m frame is 15–25 tonnes; live load (concrete, workers, tools) adds another 20–30 tonnes. Total load on anchor points is typically 25–50 kN distributed across 6–12 anchor shoes, or 4–8 kN per shoe—well within the capacity of cast-in lifting lugs (typically M16 eyes rated for 15–20 kN each).

Climbing Shoe Assembly & Anchor Strategy

The Climbing Shoes & Attachment are the mechanism by which the formwork transfers load to the concrete structure. Each shoe is a bolted bracket (not welded, to avoid on-site heating) that engages an embedded anchor casting. These anchor castings—precision-drilled ductile-iron or steel blocks—are cast into the concrete at regular 1.2–1.5 m vertical intervals during the formwork pour. They have two or four standardized holes or lugs.

When the concrete is 18–24 hours old (and strong enough, typically 5–7 MPa), workers manually bolt the climbing shoes to the embedded anchors using high-strength M12 or M16 bolts. The shoe brackets Shoe Bracket Pairs have two or three lugs that straddle the embedded anchor block, and bolts are torqued to 150–200 Nm to lock the formwork rigidly to that floor level.

The Anchor Point Interface is a precision casting or forging with multiple indexing surfaces, ensuring repeatable bolt-hole alignment across all anchor points in the building. This standardization allows the same climbing shoe kit to be used on every floor without adjustment or redrilling.

Hydraulic Lifting System

Once the formwork is bolted to the current floor, workers position the Hydraulic Lifting System system to raise the form to the next climb height (typically 3–5 m). The system consists of:

1. Hydraulic Pump & Motor: A motorized hydraulic pump (10–20 kW) mounted directly on the climbing frame, powered by electric or diesel engine. It delivers 20–30 L/min at 200–250 bar, sufficient to lift the full frame load (40–50 tonnes) in 10–20 minutes.

2. Lift Jacks: Two or four double-acting cylinders (one per side), each 100–150 mm bore and 0.5–1.0 m stroke. They are mounted on the frame and extend downward to contact a specially designed lifting frame (separate from the climbing shoes). As the jacks extend, they lift the main frame off the anchor shoes.

3. Hydraulic Manifold & Hoses: A multiport valve body distributing hydraulic flow to the jacks, with integral pressure relief (set at 220 bar), pilot-operated directional valves for lift and lower, and a manual or solenoid valve for emergency descent.

4. Pressure Gauge & Load Cell: A pressure transducer feeding back to the operator, allowing detection of imbalance (if one side is heavier, pressure will spike higher). The operator can modulate flow to the lower-pressure jack to re-balance and ensure level ascent.

The hydraulic circuit is designed with redundancy: if one jack fails, the form is safely supported by the other(s) and can be manually lowered to the ground or re-engaged to the current floor. All hydraulic components are rated for 1.5× the calculated peak load.

Concrete-Contact Surfaces & Panel System

The Formwork Panels & Liners are the business end of the system—the surfaces in contact with concrete. They consist of:

1. Plywood Facing: Typically 18–25 mm okoume or birch plywood, glued to the steel frame and secured with countersunk bolts. Okoume plywood is chosen for its hardness (resists nail puncture and concrete abrasion) and its superior release characteristics (concrete peels away cleanly without breakage or surface damage).

2. Form Tie Holes & Inserts: Pre-drilled holes at 0.5–1.0 m spacing in a grid pattern, fitted with nylon tubes or steel sleeves. These holes accept form ties—rods extending through the formwork to opposite-side formwork, tying the concrete and preventing bulging. Typical form ties are Ø8–12 mm rods at 2.5–5.0 kN capacity, spaced to handle 15–25 kPa lateral pressure.

3. Release Agent Application: A thin coat of release agent (mineral oil or chemical emulsion) is applied to the plywood facing after erection and before the first pour. This prevents concrete adhesion and is the single largest driver of demolding speed and surface quality. Re-application every 3–5 climbs is typical.

Work Platform & Access

The Working & Access Platforms mounted to the frame provide safe working areas for concrete placement, form tie installation, and formwork preparation. They typically comprise:

• Work Platform Decking: A steel or aluminum grating platform 1.0–1.5 m deep and sized to match the facade width, typically 8–20 m². It is rated for 2–5 workers plus material staging (concrete buckets, tool bags, etc.).

• Platform Clamp System: Quick-acting lever or pin-type clamps bolt the platform to the main frame, allowing removal without tools. This is critical because once the concrete is 24 hours old, the platform may need to be repositioned or removed to access stripping operations.

• Access Ramp & Stairs: A welded steel ramp at 30° angle, or integrated stairs, allowing workers and material handling to reach the work platform. For facades over 1.5 m wide, a central ramp is typical; for narrower work, a side ramp with handrails is used.

Vertical Guide Rail System

To maintain plumb accuracy (typically ±10 mm over a 20-story climb), the Vertical Guide Rails & Alignment are essential. They comprise:

1. Guide Mast or Rails: Vertical 200×200 mm box sections or double-channel masts, 3–4 m long, anchored to the building structure (typically to internal concrete columns or slab edges) at regular 1.0–1.5 m vertical intervals.

2. Guide Bracket Assemblies: The climbing frame carries small adjustable rollers or sliding brackets that engage the guide rails during ascent, preventing lateral drift and ensuring vertical travel. The brackets are typically U-shaped or fork-shaped, with nylon wheels or PTFE sliders.

As the jacks extend and raise the frame, the guide brackets slide upward on the masts, automatically maintaining alignment. This is passive—no active steering—and extremely reliable.

Safety Features & Fall Protection

Climbing formwork operations involve significant fall hazard because workers must access the work platform and stripping areas at heights of 5–50+ meters. The Safety & Fall Protection subsystem mandates:

1. Guardrails: 1000–1200 mm high, rated for 1.1 kN horizontal push, protecting all exposed edges of the work platform.

2. Toe Board: 150–200 mm high barrier preventing tools from rolling off during climbing cycles.

3. Fall Arrest Anchor Points: Multiple M16 eye bolts welded to the frame, spaced at 2 m intervals, serving as anchor points for personal fall-arrest harnesses and lanyards. Each tie-point is rated for 1.5 kN minimum safe working load (MSWL), and workers are typically tethered when working above the platform edge.

Climbing cycles are performed only when the platform is empty (workers are either on the ground or sheltered on the formwork work platform behind guardrails). Descent is controlled via the manifold's pilot valve, allowing slow, operator-controlled lowering even in case of pump failure.

Typical Operating Cycle & Productivity

A climbing sequence unfolds as follows:

1. Formwork preparation (4–6 hours): Plywood is cleaned, release agent applied, form ties are installed and aligned, rebar is inspected. The work platform is furnished with tools and ready access.

2. Concrete placement (8–16 hours): Concrete is pumped and finished. Workers on the platform place and consolidate concrete, install reinforcement if needed, and finish surfaces. Formwork stays fully loaded during this phase.

3. Initial cure (18–24 hours): Concrete hardens. Typically, restripping occurs at 18–24 hours for in-situ concrete (earlier for heated or accelerated formwork). The climbing shoes remain engaged to support the fresh concrete load.

4. Climbing cycle (1–3 hours): Once concrete is strong enough (typically 5–7 MPa, measured by maturity sensors), workers unbolt the climbing shoes, engage the hydraulic jacks, and slowly raise the formwork to the next level. The jacks lift at 0.5–1.5 m/hour, controlled descent. Guide rails maintain vertical alignment. The form is raised until the next set of embedded anchors is at the correct height.

5. Re-engagement (0.5–1 hour): Workers manually bolt the climbing shoes to the upper anchor points, verify torque, and disengage the hydraulic jacks. The cycle repeats.

For a typical 25-story building with 3.5 m floor heights, climbing formwork achieves one full floor cycle (including concrete placement and stripping) every 2–3 days on a single form set, with 3–4 concrete teams working in parallel on other areas (lower floors still curing, upper floors being prepared). This rhythm is impossible with traditional formwork, which requires complete re-erection and removal at each level.

Variants & Specialized Systems

• Facade formwork: Full-facade climbing systems for curtain walls or in-situ concrete cores.
• Core wall climbing: Specialized anchoring for rectangular cores with multiple lift points.
• Slip-form formwork: Continuously moving formwork (continuous jacking, 0.1–0.3 m/hour), used for elevator shafts and symmetrical cores.
• Tunnel formwork: Closed formwork for entire floor cross-section, combining horizontal and vertical elements in a single climbing assembly.

All variants share the same underlying principle: anchor to fresh concrete, hydraulically advance, repeat. The system dominates modern tall-building construction because of its high reuse factor (20–25 climbs per form set), superior surface quality, and labor efficiency.
