Climbing Harness Product

Overview

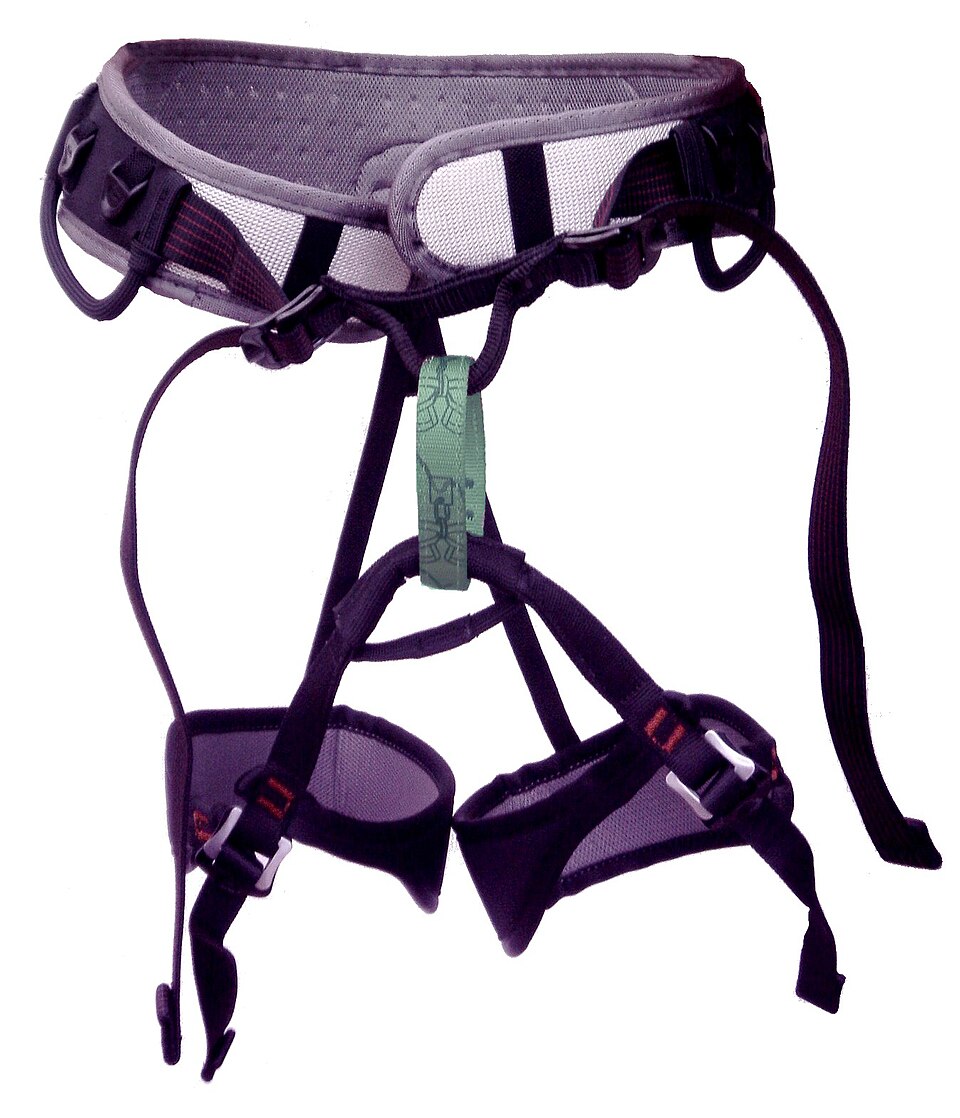

A climbing harness connects a human body to a rope so that a fall is arrested across the pelvis and thighs — the parts of the skeleton that can take the load. This is a type C sit harness under EN 12277: a structural Waist Belt and a pair of Leg Loop Pair, joined at the front by the Belay Loop and the two tie-in points. Everything else on the harness — padding, Gear Loops & Carry, elastic — is comfort and logistics, not life support.

At 380 g for a size medium, the harness is certified to CE EN 12277 and UIAA 105, which require the waist belt and belay loop to hold 15 kN. A hard sport-climbing fall generates 4–6 kN at the rope, so the certified margin is roughly threefold.

Load structure

The real harness is hidden inside the padding: a continuous run of 45 mm Waist Load Webbing inside the belt and structural Leg Loop Webbing inside each loop. The Waist Foam Pad and Leg Loop Padding spread pressure during hanging belays but carry no rated load; the Belt Outer Shell protects the webbing from rock abrasion and UV, both of which degrade nylon.

In a fall the rope pulls on both tie-in points: the Upper Tie-In Point on the belt and the Lower Tie-In Point on the leg-loop bridge. Splitting the load this way puts the climber into a sitting position rather than folding them at the waist. Each point wears a sacrificial Tie-In Wear Sheath, because rope-on-webbing friction at the tie-ins is the fastest wear mechanism on the whole product.

Belay loop

The Belay Loop Webbing ring is the strongest single component — 15 kN minimum — and the correct attachment for belay devices, rappel devices, and personal anchor systems, where its free rotation keeps a carabiner properly oriented. The rope itself, by convention, is tied through the two tie-in points instead; this is about wear distribution and keeping the knot snug, not strength.

The loop is closed by three Belay Loop Bar-Tack blocks, each of which alone exceeds the loop's rated strength. Inside the webbing runs a red Wear Indicator Thread thread: when abrasion eats through the outer layer the red core shows, and the harness is retired. A worn belay loop is not a theoretical risk — the 2006 death of Todd Skinner followed the failure of a belay loop worn visibly thin.

Buckles and adjustment

The Waist Buckle is forged 7075 aluminium in an auto-double-back design: the webbing comes permanently pre-threaded over the Buckle Slider Bar, so the doubled-back friction lock that older harnesses required the climber to thread manually — and sometimes fatally forgot — cannot be skipped. Each Leg Loop Buckle adjusts loop circumference over a 54–60 cm range to fit over anything from shorts to winter layers. The Strap Tail Keeper captures loose webbing ends, and the rear Rear Elastic Riser risers with their Riser Release Clip releases hold the leg loops up while walking and drop them for clothing changes without untying from the rope.

Carrying gear

Four moulded Gear Loop points carry quickdraws, cams, and slings — about 5 kg each, and emphatically not rated for body weight; clipping into a gear loop at an anchor is a known fatal error. The rear Haul Loop is stronger (~5 kN) and trails a second rope on multi-pitch routes. Two Ice-Clipper Slot sleeves accept ice clippers for winter ice screws.

Stitching as structure

Every load path on the harness terminates in thread. The Structural Stitching uses bonded polyester Bar-Tack Thread — polyester, because it outlasts nylon under UV — laid down in specified Bar-Tack Block blocks of roughly 42 stitches each. Joint strength scales nearly linearly with stitch count, so patterns are engineering specifications verified by pull testing, not sewing-floor judgement. The thread colour deliberately contrasts with the webbing (Contrast Stitching) so a cut or fuzzed bar-tack is visible in a pre-climb check.

Lifespan and retirement

Nylon ages even unused: manufacturers cap harness life at ten years from manufacture, less with regular use. Retirement triggers are a major fall, any visible Wear Indicator Thread, chemical contact (battery acid destroys nylon invisibly), or heavily abraded tie-in points.
