Overview

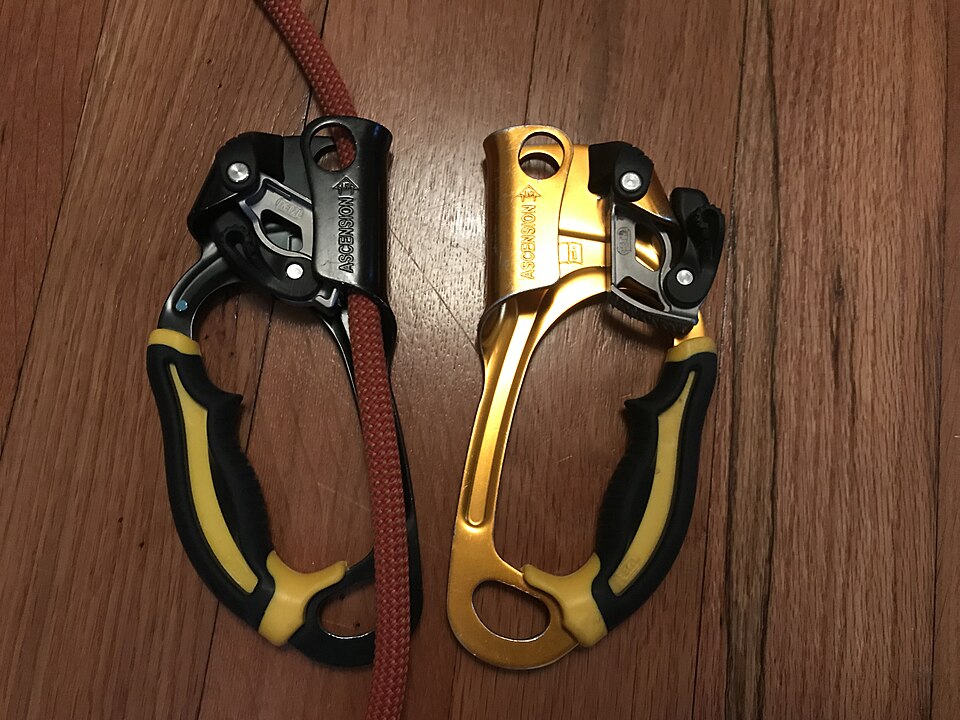

A rope ascender is a mechanical friction lock used in vertical climbing and rope rescue operations to grip a dynamic climbing rope and support the user's body weight. Unlike passive friction devices, the ascender uses a cam with toothed contact surfaces that mechanically engage the rope. When weight is applied through the harness attachment loop, the Cam Assembly presses the rope against a Backing Bar, locking the device to the rope through friction and mechanical grip. Release is achieved by pulling a hand-operated trigger mechanism that relaxes the cam pressure.

The ascender is fundamental to single-rope technique (SRT), which is the primary method for descending vertical shafts, entering confined spaces, and ascending ropes in rescue and caving operations. Modern ascenders use sealed Ball Bearing systems at pivot points to minimize friction during cam rotation and to protect internal mechanisms from moisture and dust contamination.

Design and Mechanism

Cam Assembly

The Cam Assembly is the load-bearing heart of the device. A hardened Tooth Insert with multiple serrated teeth is mounted to a rotating cam body that pivots on low-friction [[ball-bearing|ball bearings]]. Under load, the rope is wedged between the teeth and the backing bar, creating mechanical interlock independent of friction alone. This dual-mode locking—both friction and mechanical—ensures predictable holding power even on wet or muddy ropes.

The cam is designed to rotate freely under light unloaded pressure, allowing the user to slide the ascender up an unweighted rope. Once loaded, the rope forces the cam teeth to bite, preventing rotation and sliding. This self-energizing behavior means the holding power increases with applied load, within the rated capacity.

Frame and Structure

The Frame Structure consists of two parallel Side Plate elements connected by a Backing Bar and mounting bosses. Aluminum side plates provide weight savings while maintaining sufficient stiffness; some models use stainless steel backing bars for improved corrosion resistance. The geometry maintains precise rope-cam spacing (typically 1.5–2.5 mm) to ensure consistent tooth engagement across the rope diameter range.

Trigger and Release Mechanism

The Trigger Handle Assembly is a mechanical lever that, when pulled, compresses the cam against its [[climbing-rope-ascender-spring-return|spring return system]]. This reduces the clamping force enough for the rope to slip. The linkage must be ergonomic for gloved hands and require sufficient force (typically 8–12 N) to prevent accidental release during normal climbing.

Attachment and Sling System

The Sling Attachment consists of heavy-duty nylon webbing loops and a welded Attachment Ring sized for standard 12 mm carabiners. This loop must accommodate dynamic movement and rapid connection/disconnection without edge-cutting or rotation. Industrial models often feature dual attachment points for redundancy in critical rescue scenarios.

Materials and Standards

Cam bodies and tooth inserts are typically made from medium-carbon steel hardened to 58–62 HRC for wear resistance. The backing bar is often 300 M alloy steel or 4340 to withstand concentrated rope bending stress. Side plates use aluminum 6061-T6 or 7075-T73 for strength-to-weight ratio. All fasteners are stainless steel or cadmium-plated to prevent corrosion.

The device must meet EN 12841 (Rope Ascender) or UIAA standards, which define minimum breaking strength (typically 2400 kg), holding power under dynamic and static load, and temperature range operation. Sealed bearings use elastomer or PTFE seals rated for −30 to +60°C to prevent ice formation and lubricant breakdown in alpine environments.

Operating Principles

When ascending a fixed rope:

1. Load applied through the harness drives the rope between cam teeth and backing bar.
2. Rope pressure forces the cam inward; the self-energizing mechanism increases grip.
3. Manual release via the trigger allows the cam to relax and the rope to slip.
4. Repeat hand-over-hand up the rope, with the device supporting between pulls.

The ascender must be used with a backup friction device (typically a carabiner braking system or Rappel Descender) to prevent catastrophic fall in case of trigger accidental release or mechanical failure.

Applications

• SRT Descents: Primary locking device for one-person vertical descent in caves, mines, and shafts.
• Rope Rescue: Load management and victim evacuation in cliff rescue scenarios.
• Confined Space Entry: Enables controlled vertical access to tanks and cisterns.
• Training and Sport Climbing: Used in some rope-gym setups for speed and safety.

Variations

Hand ascenders (also called "Jumars" in the climbing world, generically) vary by rope-diameter tolerance, handle ergonomics, and bearing system. Foot ascenders (used in conjunction with hand ascenders) employ similar tooth mechanisms but are designed to be stepped into via a loop, freeing both hands for aid climbing.
