Coffee Vending Machine Product

Overview

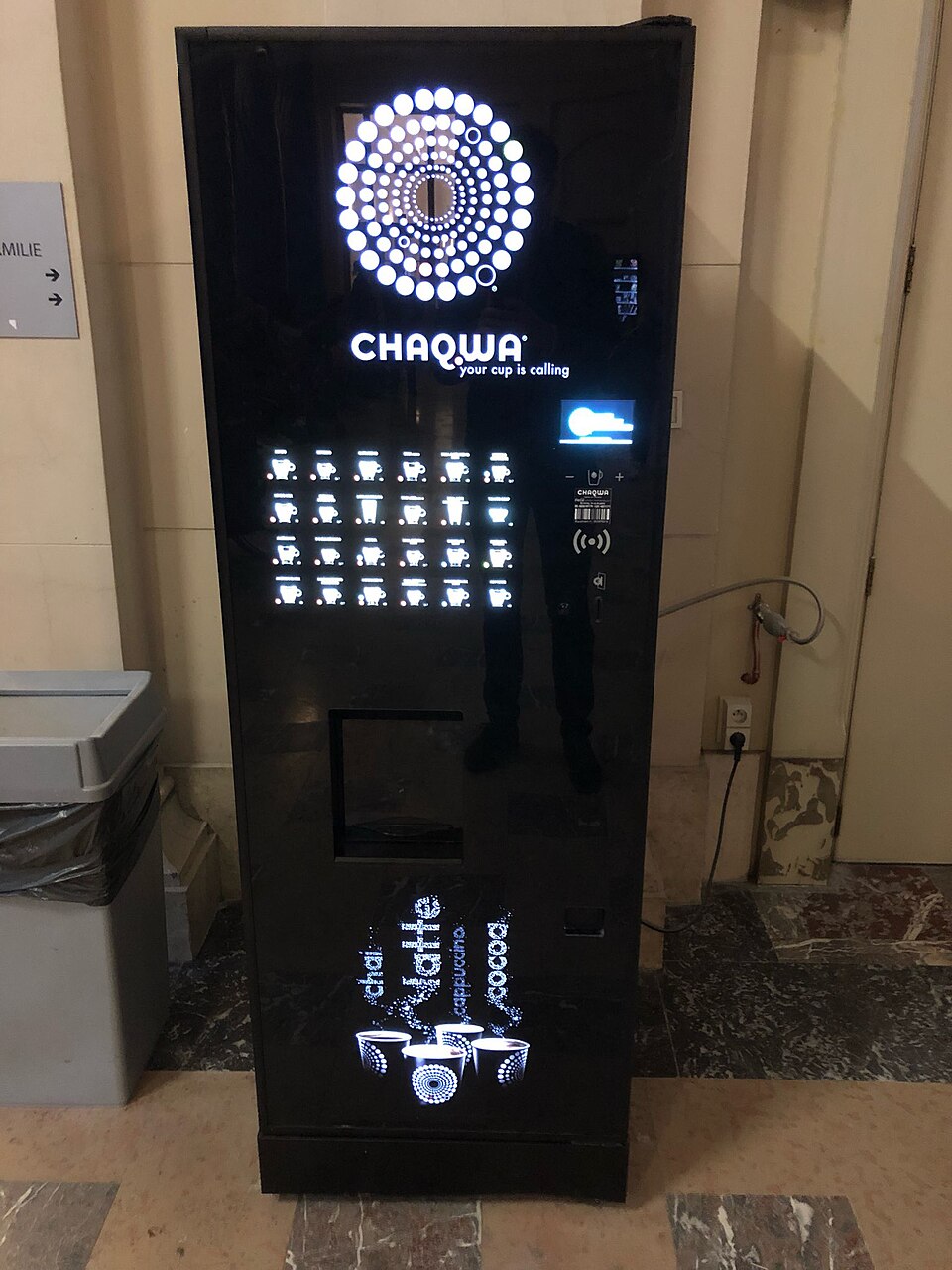

A bean-to-cup coffee vending machine is a self-contained café in a steel Cabinet: it stores whole beans, powdered ingredients, fresh milk, water, and cups, and turns a payment into a finished drink in 30 to 45 seconds. The machine described here is a typical full-size floor model, about 1.8 m tall and 165 kg, found in offices, hospitals, and stations.

Drink quality rests on three subsystems working in sequence. The Brewer Unit grinds and extracts the coffee, the Water System supplies water at the right temperature, pressure, and volume, and the Ingredient Canister Rack adds soluble ingredients. Around them sit the Cup Dispenser, the Milk Refrigeration Module for fresh-milk drinks, the Payment Module stack, and the Controller & UI that sequences everything.

How it works

A vend starts at the payment layer. The Coin Changer validates coins by inductive and optical signature and holds float in five change tubes; the Note Validator scans banknotes into a lockable stacker; the Cashless Reader runs an EMV contactless session. All three sit on the vending industry's Multi-Drop Bus, a 9-bit serial standard from the 1990s, marshalled by the MDB Interface Board. Once credit is established, the user picks a recipe on the touch menu (LCD Panel plus Touch Digitizer) and the Main Control Board executes the vend state machine.

First a cup must land. The Cup Turret indexes a loaded stack over the Cup Drop Ring, whose cammed fingers peel exactly one nested paper cup free; the Cup Presence Sensor confirms it reached the Delivery Station before any liquid flows. A failed drop aborts the vend and refunds credit.

For an espresso-based drink, the Burr Grinder runs next. Its Flat Burr Set — 64 mm hardened flat discs spun at about 1,400 rpm by the Grinder Motor — mills 7–11 g of beans from the Bean Hopper in roughly five seconds. Particle size is set mechanically by the Grind Adjustment Collar; a technician tunes it so a single shot extracts in 20–25 seconds.

The grounds fall into the Piston Brew Group, the part that distinguishes bean-to-cup machines from instant ones. A piston driven by the Brew Group Motor tamps the dose, seals the cylinder, and the Vibratory Water Pump — a vibratory solenoid pump rated to 15 bar — pushes boiler water through the puck at roughly 9 bar. Shot volume is closed-loop: the Flowmeter emits pulses per millilitre and the controller stops the pump at the recipe target. After extraction the group inverts and scrapes the spent puck into the Grounds Waste Bin, which holds 60–80 pucks before its level switch demands emptying. Two Hall Sensor units track group position so the mechanism never jams mid-cycle.

Water arrives from mains or an internal tank through the Water Filter Cartridge, which softens it and strips chlorine — scale is the leading cause of boiler failure. The 600 ml Boiler holds water at 92–96 °C with an 1,800 W Heating Element under NTC control; a Thermal Fuse and a Pressure Sensor guard against runaway. Four Solenoid Valve units route hot water to the brew group, the mixing bowls, or the rinse drain.

Cappuccino and chocolate drinks involve the soluble side. Each Powder Canister has an internal auger turned by a timed Auger Gearmotor; run time maps directly to grams dispensed. Powder and hot water meet in a Whipper Assembly, where an impeller spinning above 10,000 rpm froths them smooth in under three seconds. Machines with the fresh-milk option instead draw from the Milk Container, held at 2–5 °C by the Fridge Compressor and its condenser Radiator. The Peristaltic Milk Pump is peristaltic, so milk only ever touches disposable silicone tubing, and the Milk Frother steam-injects it into microfoam. The Fridge Thermostat logs temperature for food-safety audits.

The finished streams converge at the Dispense Head, and sugared drinks get a stick from the Stirrer Dispenser.

Hygiene and service

The machine self-rinses the brew group, whippers, and milk path after configurable idle periods, flushing to the Waste Water Tray. Fresh-milk circuits additionally require a daily manual clean — the container and tubing are removed and washed, which is why many operators prefer powdered-milk configurations. The Telemetry Modem uploads EVA-DTS audit data — vend counts per recipe, cash totals, fill levels, fault codes — so routes are serviced on demand rather than on a fixed schedule. Access is through a full-height door secured by the three-point Door Lock Assembly; everything a route operator touches (hoppers, bins, trays, cup stacks) is reachable without tools.

Variants

The same chassis supports instant-only machines (no grinder or brew group, solubles only — cheaper and faster at ≈ 15 s per vend), tabletop versions with manual cup placement, and combi machines pairing the drinks tower with a snack-spiral cabinet on the same payment stack and MDB Interface Board.
