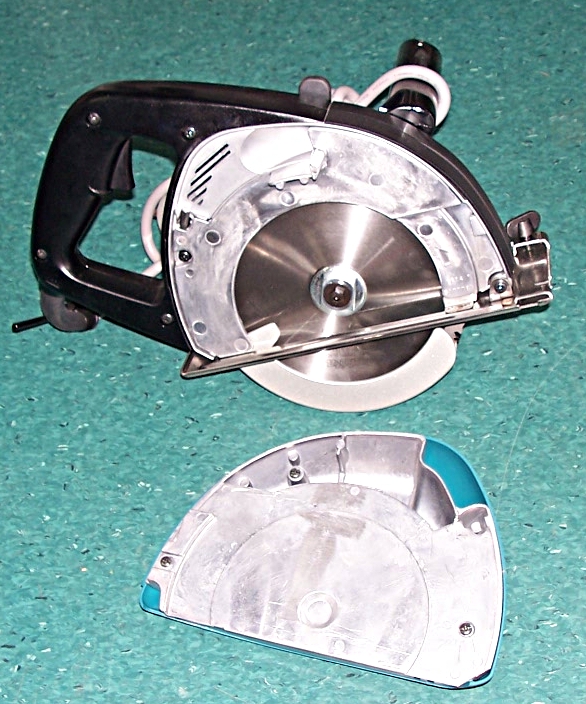

A cold saw is a circular metal-cutting saw built around one inversion of the usual saw recipe: instead of a thin blade spinning fast, it turns a massive, rigid blade slowly — 15 to 120 rpm — with high torque from a worm Worm Gearbox. At those speeds each tooth takes a real machining chip rather than rubbing, and nearly all the cutting heat leaves in the chip. The blade and the workpiece stay close to room temperature, which is what the name means and what an abrasive chop saw conspicuously is not. The result is a cut that looks milled: square, burr-minimal, with no heat-affected zone, no sparks, and tolerances of a tenth or two of a millimetre — good enough that many parts go straight to welding or machining with no secondary cleanup.

The machine is structurally simple: a Blade Drive on a Pivot Head above a Work Vise, with flood coolant from the Coolant System and a stand that swallows the chips.

How it works

The Circular Blade is the tool. A typical blade is 250–400 mm of ground high-speed steel with a 32 mm bore, driven through Drive Pins so torque never depends on flange friction. Tooth pitch is chosen so that at least two or three teeth are always in the work — coarse for solids, fine for thin-wall tube — because a tooth entering an unsupported section snags and chips. HSS blades resharpen dozens of times on dedicated grinders, so per-cut blade cost is low despite the blade's price; carbide-tipped versions run faster on stainless and larger machines.

Speed selection is the whole craft. The two-speed Drive Motor and the worm reduction put the tooth at roughly 12–60 m/min of cutting speed: low range for steels, high range for aluminium, brass, and thin sections. Flood coolant from the Flood Nozzles hits both blade faces ahead of the cut so every gullet carries emulsion into the kerf, lubricating the tooth and flushing the chip out each revolution; cutting dry is the fastest way to ruin a blade.

The operator squeezes the deadman trigger in the Feed Handle and feeds the head down through the work by feel, arcing on the Pivot Shaft until the Depth Stop ends travel just past severance. Feed pressure must keep the teeth biting — too light and the teeth rub and work-harden the cut face (fatal in stainless), too heavy and they strip. The Head Return Spring lifts the head when the trigger releases, and the Switch Unit stops the blade with it. Production versions replace the operator's arm with an air or hydraulic feed cylinder and an Air Clamp Cylinder vise, cycling automatically.

Clamping and accuracy

Cut quality lives in the clamping. The Vise Body supports the stock immediately at blade entry and exit, closed in a part-turn by the quick-action Vise Screw. The detail that separates a cold saw from a rough saw is the Anti-Burr Clamp on the off-cut side: by holding the falling piece rigid at breakthrough it prevents the deflection that creates exit burr, so both pieces of the cut come off clean. Replaceable Jaw Inserts grip rounds and box sections without crushing thin-wall tube. For angle work the graduated Miter Base swivels the whole head ±45 degrees with positive detents at 0 and 45, the everyday cuts of frame and railing fabrication.

Repeat lengths come from the Length Stop System: a flag on a graduated bar set once per batch, with the Stop Flag flipping away so cut pieces fall free instead of wedging between blade and stop — a wedged off-cut is the classic cold-saw blade breaker.

Where it fits

The cold saw owns the territory between the abrasive chop saw and the bandsaw. Against the chop saw it trades speed for a clean, cold, accurate face and no shower of sparks and grit; against a horizontal bandsaw it cuts faster per cut with better finish, but its capacity tops out near 130 mm solid round and each cut needs operator attention unless automated. Typical homes are weld shops, conveyor and railing fabricators, and machine shops cutting bar stock to billet length. Running one is mostly discipline: correct speed for the material, correct pitch for the section, coolant always on, and chips kept off the Chip Screen so the Coolant Pump keeps flooding the cut.
