Commercial Draft Beer System Product
Overview
A commercial draft beer system is a complete refrigeration and gas-control installation that serves chilled, carbonated beer from kegs through multiple taps. The system keeps beer at optimal temperature and carbonation throughout its journey from keg to glass, which is surprisingly complex because beer is a living beverage—yeast, bacteria, and CO2 all interact with temperature and time.
The heart of the system is the Glycol Power Pack, a refrigeration unit that circulates a chilled glycol-water mixture (typically 50/50 by volume) through insulated Trunk Lines to remote tap locations. Glycol is used instead of plain water because it has a lower freezing point (around -32 °F for 50/50 mix) and a higher boiling point, so it can be safely pumped through uninsulated lines exposed to ambient temperature variations without freezing in winter or boiling in summer.

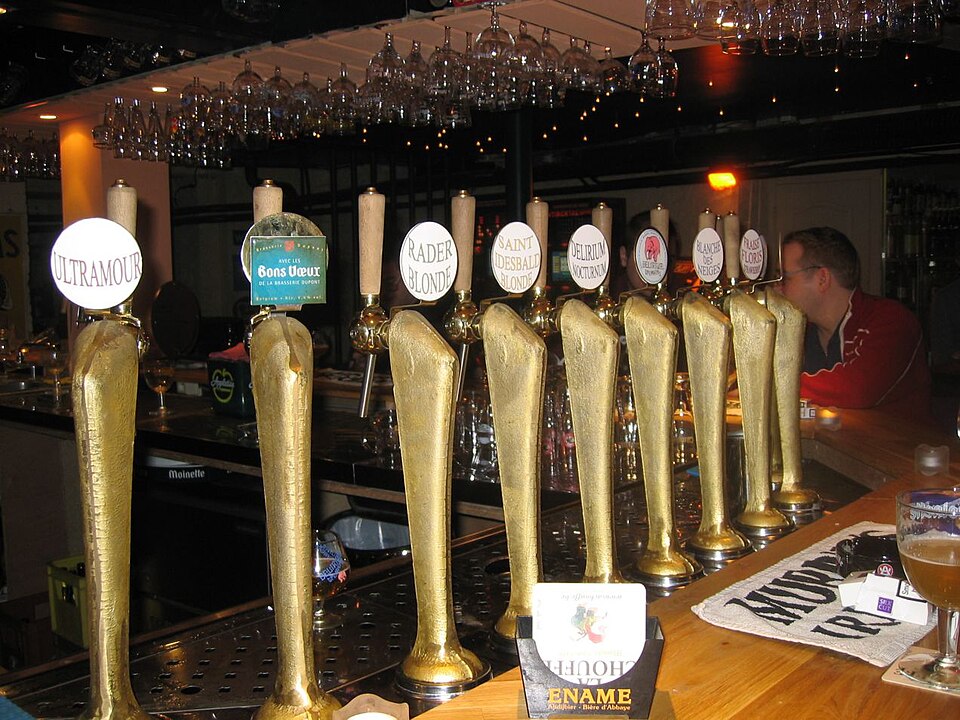

The glycol cools a Tap Towers at each tap location. The tower is a vertical column of brass or stainless steel, typically 3–6 inches in diameter and 12–24 inches tall. Inside the tower, the chilled glycol flows through a jacket around the beer lines, cooling the beer as it rises through the tower toward the Tower Faucet. This design ensures the beer is maximally chilled (down to 36–38 °F) just as it exits the faucet into a glass.
A Gas Blender regulates gas pressure. Pure CO2 can produce overcarbonation (unpleasant, overly gassy beer), so many systems blend CO2 with nitrogen at a ratio adjusted for the beer style. Nitrogen is inert and affects carbonation minimally, so higher nitrogen ratios produce a creamier mouthfeel with less bite. The Secondary Regulator sets the final serving pressure, typically 12–15 PSI for most beers.
How it works
A keg of beer arrives at the bar with natural carbonation (already pressurized at the brewery, typically 2–3 volumes of CO2 dissolved). The keg is connected to a commercial-draft-system-keg-coupler, a quick-connect fitting that pierces the keg valve and allows gas and beer to flow. The same coupler carries both gas pressure (to push beer out) and beer line (to the tower).
From the keg, beer flows through a Trunk Lines (usually 3/16 inch ID tubing for longer runs, to minimize pressure drop) toward the tap tower. The tubing is insulated (typically 1/2 to 3/4 inch foam jacket) and runs alongside the Glycol Power Pack output line, so they run in parallel and the cold glycol helps precool the incoming beer.
Inside the Tap Towers, the beer rises through a coil or passage in contact with the Glycol Power Pack circulation jacket. The cold glycol transfers heat to the beer, chilling it to 36–38 °F. The commercial-draft-system-circulation-fan inside the power pack blows air over the Condenser Coil to dump the heat absorbed by the glycol, then a Compressor pumps the now-warm glycol back through the evaporator to be re-chilled.
A Thermostat senses the glycol temperature and tells the Compressor to cycle on or off, maintaining a steady 38–40 °F.
Gas from the Primary Regulator (one for CO2 Tank and one for N2 Tank) enters the Mixing Chamber, where CO2 and nitrogen blend at the desired ratio. The blended gas then flows through the Secondary Regulator, which sets the final serving pressure to 12–15 PSI. This pressure is applied to the headspace of the keg via the gas inlet on the commercial-draft-system-keg-coupler, pushing the beer through the beer line.
The pressure differential between the keg (12–15 PSI) and the tap (atmospheric, 0 PSI) drives beer through the lines. Line resistance (friction) causes pressure to drop as beer travels from keg to tap. For a 50-foot run through standard tubing, the pressure drop is roughly 1–2 PSI, so the bartender sees only 10–14 PSI at the faucet, which is fine—beer will still pour at a good rate.
When the bartender grips the Tower Faucet handle, they depress a spring-loaded lever that opens the commercial-draft-system-dispensing-valve, allowing beer to flow upward through the chilled tower and out the spout into a glass. Release the lever and the valve closes.
The system requires maintenance:
- CO2 and N2 tanks are swapped monthly in typical bar operations.
- Glycol is topped off as needed and replaced every few years (it degrades and loses cooling efficiency).
- Beer lines are cleaned weekly or biweekly with specialized hot caustic or acid cleaners to remove yeast and bacteria buildup.
- Couplers and faucets are replaced as gaskets wear.
A well-maintained draft system produces the ideal beer experience: cold (36–38 °F), properly carbonated (by the keg's natural carbonation plus gas pressure), and served quickly, so the first sip is as fresh and flavorful as it leaves the brewery. This is why bars and restaurants invest in these systems—they improve product quality and customer satisfaction while reducing waste from spoilage.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
6 top-level lines · 32 rows shown · 38 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Glycol Power Pack 6 parts | commercial-draft-system-glycol-power-pack | 1× | 1 | 6 | assembly |
| 1.1 | Compressor | commercial-draft-system-compressor | 1× | 1 | — | part |
| 1.2 | Condenser Coil | commercial-draft-system-condenser | 1× | 1 | — | part |
| 1.3 | Evaporator Coil | commercial-draft-system-evaporator | 1× | 1 | — | part |
| 1.4 | Glycol Pump | commercial-draft-system-glycol-pump | 1× | 1 | — | part |
| 1.5 | Thermostat | commercial-draft-system-thermostat | 1× | 1 | — | part |
| 1.6 | Glycol Reservoir | commercial-draft-system-reservoir | 1× | 1 | — | part |
| 2 | Trunk Lines 3 parts | commercial-draft-system-trunk-lines | 1× | 1 | 6 | assembly |
| 2.1 | Glycol Line | commercial-draft-system-glycol-line | 1× | 1 | — | part |
| 2.2 | Gas Line | commercial-draft-system-gas-line | 1× | 1 | — | part |
| 2.3 | Line Support | commercial-draft-system-line-support | 4× | 4 | — | part |
| 3 | Keg Couplers 4 parts | commercial-draft-system-keg-couplers | 1× | 1 | 4 | assembly |
| 3.1 | Coupler Body | commercial-draft-system-coupler-body | 1× | 1 | — | part |
| 3.2 | Coupler Probe | commercial-draft-system-coupler-probe | 1× | 1 | — | part |
| 3.3 | Coupler Spring | commercial-draft-system-coupler-spring | 1× | 1 | — | part |
| 3.4 | Coupler Handle | commercial-draft-system-coupler-handle | 1× | 1 | — | part |
| 4 | Tap Towers 4 parts | commercial-draft-system-towers | 1× | 1 | 8 | assembly |
| 4.1 | Tower Shaft | commercial-draft-system-tower-shaft | 1× | 1 | — | part |
| 4.2 | Tower Faucet | commercial-draft-system-tower-faucet | 3× | 3 | — | part |
| 4.3 | Drip Tray | commercial-draft-system-drip-tray | 1× | 1 | — | part |
| 4.4 | Tower Label | commercial-draft-system-tower-label | 3× | 3 | — | part |
| 5 | Gas Blender 5 parts | commercial-draft-system-gas-blender | 1× | 1 | 6 | assembly |
| 5.1 | CO2 Tank | commercial-draft-system-co2-tank | 1× | 1 | — | part |
| 5.2 | N2 Tank | commercial-draft-system-n2-tank | 1× | 1 | — | part |
| 5.3 | Primary Regulator | commercial-draft-system-primary-regulator | 2× | 2 | — | part |
| 5.4 | Secondary Regulator | commercial-draft-system-secondary-regulator | 1× | 1 | — | part |
| 5.5 | Mixing Chamber | commercial-draft-system-mixing-chamber | 1× | 1 | — | part |
| 6 | Frame Assembly 4 parts | commercial-draft-system-frame | 1× | 1 | 8 | assembly |
| 6.1 | Wall Bracket | commercial-draft-system-wall-bracket | 2× | 2 | — | part |
| 6.2 | Floor Base | commercial-draft-system-floor-base | 1× | 1 | — | part |
| 6.3 | Tank Clamp | commercial-draft-system-tank-clamp | 4× | 4 | — | part |
| 6.4 | Cable Tray | commercial-draft-system-cable-tray | 1× | 1 | — | part |
