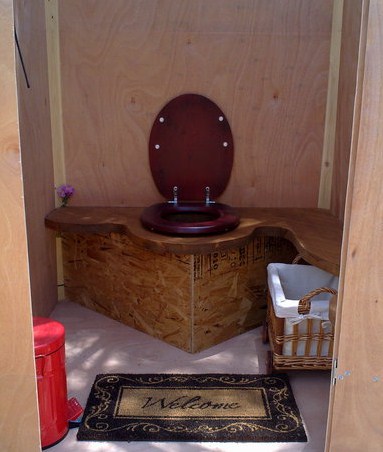

Composting Toilet Product

Overview

A composting toilet is a waterless sanitation fixture that separates human waste into two streams—solids and urine—and processes each independently. Feces are mixed with carbon material (sawdust, coconut coir) and aerated to decompose into odorless humus over 6–12 months. Urine is collected separately in a tank for either dilution and application as fertilizer or disposal. The toilet requires no municipal sewer or septic system, making it ideal for remote properties, off-grid homes, RVs, and environmentally conscious users seeking to close the nutrient loop.

The engineering principle is aerobic decomposition under controlled ventilation. Unlike anaerobic septic systems (which produce methane and H₂S), a well-managed composting toilet draws 20–50 CFM of air through the decomposing material via a small fan or passive convection, maintaining oxygen levels and suppressing odor-producing pathogens.

Waste Separation System

The Toilet Bowl and Seat is the user interface—a standard toilet seat with a critical internal component: the Separating Assembly. This divider is a funnel-shaped molded plastic device that routes urine downward and to one side (toward the urine tank) while directing feces straight down into the composting chamber.

The separator must be precisely engineered to work for both genders. Most modern designs use a funnel with a steep angle (40–50 degrees from horizontal) to guide urine away while allowing solids to pass. The Separator Gasket gasket prevents cross-contamination between the two streams, which is critical: if urine backs up into the solids chamber or vice versa, odor control is compromised.

After each use, the user adds carbon material (typically 0.5–1 liter of sawdust, coconut coir, or commercial peat mix) by sprinkling it through the bowl or via a foot-pump dispenser integrated into the cabinet. This is the key to odor control: the carbon absorbs moisture and creates air pockets that promote aerobic bacterial growth. Without carbon addition, the toilet quickly becomes anaerobic and foul.

Composting Chamber

The Composting Chamber is a sealed 5–15 gallon drum (often rotationally molded HDPE plastic) inside the base cabinet. Solids accumulate here, mixed with carbon, and are mechanically agitated using the Agitation Mechanism—a manual crank operated 3–5 times daily. The Mixing Paddle breaks up clumps, distributes carbon, and introduces oxygen into the decomposing mass.

Inside the drum are Air Baffles, vertical vanes that help distribute air drawn by the ventilation fan. The drum is typically dark (black or dark brown plastic) to prevent light penetration and algae growth. At the bottom is a Leachate Drain, a small plug valve that allows excess leachate (brown liquid) to drain into a collection tray.

Microbial decomposition in a composting toilet is primarily thermophilic (heat-loving) bacteria that thrive at 50–70°C. In cool climates or with low use, decomposition slows, and additional ventilation or longer storage times are needed. Most systems rely on maintaining steady moisture (50–60% by weight) and carbon-to-nitrogen ratio (25–30:1) through regular carbon additions.

Urine Collection and Storage

The Urine Collection Tank is a separate 5–20 gallon sealed container mounted inside the cabinet, directly below the diverter outlet. Urine is sterile when fresh; the tank captures it for later use as diluted fertilizer (typically 8–10 parts water to 1 part urine) on gardens or lawns.

A Level Indicator (usually a simple float switch) signals when the tank approaches 80% capacity. When full, the user empties it via a Drain Valve (manual ball valve) into a jerry can. The entire tank can often be unbolted and carried away, or a spigot allows in-situ drainage.

A Urine Tank Vent is a small odor-trapping filter cartridge (activated charcoal) mounted on the tank's vent line, preventing ammonia smell in the bathroom. This filter typically lasts 3–6 months before replacement.

Storage of urine is straightforward—sealed dark containers at ambient temperature for months or years. Urea hydrolyzes slowly over time, converting to ammonia, so fresh urine (< 1 week old) is preferred for fertilizer applications.

Ventilation and Odor Control

The Ventilation System system is critical to odor suppression. A small Ventilation Fan (0.1–0.3 HP, 12V or 120V DC) draws 20–50 CFM from the composting chamber through Air Baffles, extracting moisture and volatile organic compounds. The air is routed through Vent Ducting (3–4 inch flexible PVC) to a Vent Stack Terminal that exits through the roof or an exterior wall, well above the nearest window.

A Vent Damper (spring-loaded check valve) prevents outdoor air and pests from entering the toilet when the fan is off. Some designs use passive convection (no fan) if the vent stack can achieve sufficient draft through height alone, though this is unreliable in still conditions.

The fan is operated either manually (toggle switch) or automatically via:

• Timer: Runs 30–60 minutes after each use (common in occupied homes).
• Humidity sensor: Activates when chamber moisture exceeds 70%, running until conditions normalize.
• Continuous operation: Fan runs 24/7 at low speed (optimal for odor control but highest energy cost).

Energy consumption is minimal—a 20-watt fan running 4 hours per day costs ~$3/year in electricity.

Maintenance and Management

Daily: Add carbon material after each use. Mix contents 3–5 times daily with the agitator crank. Weekly: Monitor the urine tank level. Drain if approaching full. Monthly: Inspect the ventilation fan for dust accumulation; clean if needed. Quarterly: Empty and inspect the Composting Drum; if approaching capacity (typically after 6–12 months), remove the processed compost for curing.

The final compost product is a dark, crumbly, nearly-odorless humus that can be added to gardens or landscaping. Finished compost from a well-managed system poses minimal disease risk if used on non-food plants; for vegetable gardens, additional curing (6+ months) is recommended to ensure pathogen die-off.

Installation and Placement

Composting toilets require:

1. Ventilation duct pathway: A clear 3–4 inch vertical path through the roof (or exterior wall).
2. Electrical supply: A 12V or 120V outlet for the fan (optional if passive venting is used).
3. Access for emptying: Adequate space to remove the composting drum and urine tank (minimum 18–24 inches clearance on two sides).
4. Carbon material supply: A closet or storage space for sawdust or coir (typically 20–30 lbs per month for a family).

No plumbing connections are required. Installation in a bathroom costs $2,000–$6,000 for labor and materials (toilet, ducts, cabinet), plus $500–$1,000 annually for carbon material.

Regional and Climate Considerations

Composting toilets work best in temperate climates (50–85°F ambient). In cold regions (< 40°F), decomposition slows dramatically; users must rely on longer retention (12–24 months) or add heat mats to the chamber. In hot, humid tropics, ventilation must be aggressive to prevent excessive moisture and odor buildup. Dry climates favor composting toilets (minimal odor, rapid curing).

Legal restrictions vary by jurisdiction; many rural counties and off-grid properties permit composting toilets, while urban codes often require connection to public sewer. Septic systems with composting toilet upgrades exist but are complex; most off-grid installations use standalone composting units.

Water Conservation

A single composting toilet eliminates 5–6 gallons of water per person per day that would otherwise be consumed by a conventional flush toilet. For a family of four, annual water savings reach 7,000–8,000 gallons—a significant benefit in water-scarce regions or for properties with small wells.
