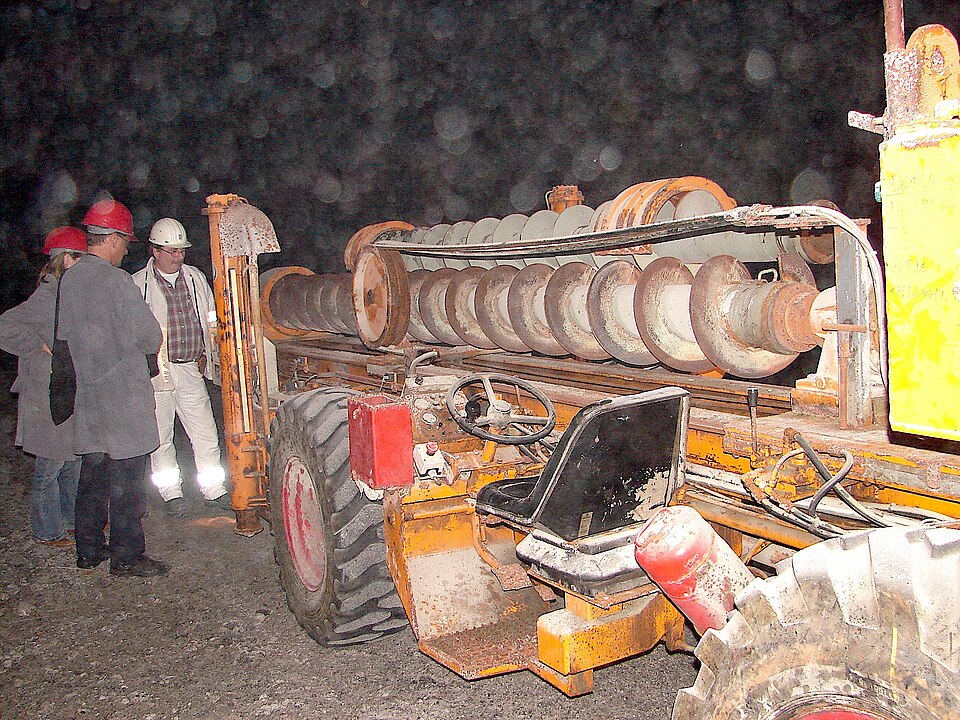

Core Drilling Rig Product

Overview

The core drill rig is specialized exploration and investigation equipment that recovers solid rock samples (core) from depths up to 1000+ meters. Unlike percussion drilling (which shatters rock and produces only cuttings) or rotary drilling (which produces small chip cuttings), core drilling produces a continuous cylinder of intact rock—a "core"—that preserves geological structure, mineral content, porosity, and other properties valuable for mining exploration, geotechnical engineering, and resource assessment.

A diamond coring bit—a steel cylinder studded with industrial diamonds—slowly abrades its way through rock, working like a tiny circular saw. The hole is continuously flushed with water or foam to clear abraded fines (rock flour) and cool the bit. Core samples are systematically recovered via wireline (cable) at regular intervals (typically every 3 m) and brought to the surface for geological logging, assaying, and storage.

Core drilling is the gold standard for subsurface investigation in mining and deep geotechnical projects. A single well-logged borehole can reveal years of geology that surface mapping cannot show.

How it works

The core drill rig is anchored to a stable site (concrete pad or heavily ballasted skid). The Mast and Derrick (15–30 m tall) supports the [[core-drill-rig-diamond-core-barrel|diamond core barrel]] and [[core-drill-rig-rotation-head|top drive]]. The core barrel is a hollow steel tube with a [[core-drill-rig-core-bit|diamond bit]] at the bottom. As it rotates and is pressed downward, the bit abrades a circular path in the rock. The inner tube (the Core Barrel Tube) remains stationary, collecting a solid core of rock as it advances.

Circulation water flows down the inside of the core barrel, exits at the bit, cools the diamonds, and returns up the annulus (the space between the barrel and borehole wall), carrying abraded rock flour to the surface. The circulation rate is controlled (100–300 GPM) to maintain cooling and cuttings lift without over-pressuring the hole.

At regular intervals (typically every 6 meters), drilling is stopped. The [[core-drill-rig-wireline-winch|wireline cable]] is deployed, lowering a core-catching overshot tool down the borehole. The overshot latches into the top of the core barrel and retracts it, bringing the 6-meter core sample to the surface. The core barrel (now loaded with rock) is unlatched and laid on the [[core-drill-rig-sample-handling|core logging table]]. A fresh core barrel is latched into place, drilling resumes.

This cycle repeats continuously: drill 6 m → recover core → log and photograph → repeat. Over days or weeks, a deep borehole is drilled and fully sampled, producing a detailed geological profile.

Key components

Diamond core barrel: The Diamond Core Barrel Assembly is the heart of the system. The [[core-drill-rig-core-bit|diamond coring bit]] is a hollow steel cylinder with industrial diamonds (typically 1–2 carat stones) set in a bronze or resin matrix. The bit rotates and is pressed against the rock face, and the diamonds abrade a circular groove. The hollow center of the bit allows the core to enter the [[core-drill-rig-core-barrel-tube|sample tube]] below.

The core tube comes in two configurations:

1. Single-tube barrel: A single hollow tube that both abrades the rock (via the bit above) and contains the core. Simple, but the rotating barrel disturbs the core slightly.
2. Double-tube barrel: An inner stationary tube (held in place by bearings, not rotating) that collects the core, and an outer rotating tube that abrades the rock. Produces undisturbed core but is mechanically complex.

Core tube diameter is specified by industry standard (NQ = 47.6 mm sample, HQ = 63.5 mm, PQ = 83.3 mm, UZ = 120 mm). Deeper boreholes use smaller core (NQ or HQ) to reduce friction and weight; exploration holes may use large core (PQ) for detailed analysis.

Top drive: The Top Drive Motor is a hydraulic motor (100–200 kW) mounted at the mast top, directly driving the core barrel. A [[core-drill-rig-rotation-bearing|large thrust bearing]] at the drive head carries the weight and rotational load of the core barrel. Variable speed (20–200 RPM) allows the operator to adjust rotation for different rock types (slow for hard granite, faster for soft sediment).

Wireline system: The Wireline Winch is the retrieval mechanism. A [[core-drill-rig-winch-drum|steel drum]] holds 500–3000 meters of specialized wireline cable (5–9 mm diameter, twisted steel strands, rated for 600–800 N minimum breaking load). An electric or hydraulic [[core-drill-rig-winch-motor|motor]] powers the winch. The operator can lower or raise the cable at 1–3 m/s. A [[core-drill-rig-depth-indicator|cable counter]] tracks how much cable is out, calculating the core barrel depth.

To retrieve core, the drill string is stopped and raised slightly to ease tension on the core barrel. The core-catching "overshot" tool is lowered on the wireline. The overshot has an internal spring-loaded dog that latches into a receptacle on the core barrel top. When the overshot is raised, it pulls the core barrel (filled with core sample) out of the hole. The barrel is brought to the surface, the core is extracted, and a fresh barrel is lowered back to the core depth.

Circulation system: The Circulation System is simple but critical. A Circulation Pump (electric or hydraulic driven, 100–300 GPM) draws water from a Fluid Tank and pumps it down the inside of the core barrel. The water exits the bit at the bottom, travels up the borehole annulus, and returns to the tank. This removes the abraded rock flour (which would otherwise cake the bit and jam the core barrel) and cools the diamonds (which overheat and lose hardness above ~200 °C).

In deep boreholes, circulation is sometimes switched to foam (water + surfactant + compressed air) to reduce hydrostatic pressure and improve core recovery. Biodegradable drilling mud is used in environmentally sensitive locations.

Power system: A [[core-drill-rig-diesel-engine|diesel engine]] (150–300 kW) runs continuously, powering a [[core-drill-rig-hydraulic-pump|hydraulic pump]] and [[core-drill-rig-electric-generator|alternator]]. The hydraulic pump supplies pressure for the top drive and any hydraulic winch systems. The alternator (200–300 kVA, three-phase) powers the electric motor on the winch, circulation pump, and site lights. The [[core-drill-rig-oil-cooler|cooler]] maintains hydraulic oil at 45–55 °C.

Sample handling: The [[core-drill-rig-sample-handling|core logging table]] is a long, well-lit bench (10–20 m) where retrieved core is laid out in [[core-drill-rig-core-trays|compartmented trays]]. A geologist or technician photographs the core, measures intervals, describes lithology (rock type), notes color, fractures, mineralization, and alteration. [[core-drill-rig-measurement-tools|Field tools]] (ruler, compass, magnifier) aid description. Every meter of core is catalogued, assigned a depth interval, and stored for later laboratory analysis (assay, thin sections, permeability testing).

Drilling mechanics

The drilling rate is determined by diamond bit wear, formation hardness, applied weight, and rotation speed. A rule of thumb for diamond drilling:

Penetration Rate (mm/min) ≈ (Applied Weight in kg) / (Bit Diameter in mm) × (Hardness Factor)

In soft sediment (sandstone, mudstone), hardness factor is high (softer = faster); in hard igneous rock (granite, basalt), it is low. A 6-inch (152 mm) bit in granite under 5 tonne weight might advance 2–3 m/hour. The same bit in sandstone, under the same weight, might advance 10–15 m/hour.

As the bit dulls (diamonds wear), penetration rate decreases. The operator monitors rate-of-penetration (ROP, displayed in real time) and, when ROP drops to <50% of initial, pulls the bit and replaces it. This prevents excessive wear and bit destruction.

Core recovery and quality

Core recovery = (length of core retrieved / drilled interval length) × 100%. Good drilling achieves 85–95% recovery. Recovery loss (gaps, core loss intervals) typically occurs in fractured rock where pieces break apart, or in very soft clay where the core collapses in the barrel.

Core quality is preserved by:

1. Using double-tube barrels in weak formations.
2. Limiting rotation speed and applied weight to reduce disturbance.
3. Stopping drilling frequently to retrieve fresh core before consolidation.
4. Using proper bit and circulation to avoid jamming.

Geotechnical and mining engineers distinguish RQD (Rock Quality Designation), a measure of core recovery and fracture spacing in hard rock. RQD is used to classify rock mass strength for foundation and slope design.

Applications

• Mining exploration: Drilling 500–2000 m boreholes to sample ore bodies, determine grade, and estimate reserves.
• Geotechnical investigation: Foundation drilling for dams, bridges, tunnels; assessing soil and rock strength at depth.
• Environmental assessment: Studying groundwater and contaminant movement in fractured rock aquifers.
• Mineral prospect evaluation: Identifying ore minerals and structure in deep targets.
• Stratigraphic drilling: Documenting rock layers and paleontology in sedimentary basins.

The core drill rig is a capital-intensive machine (cost $500,000–$2,000,000 for large diamond drilling rigs) used by major mining companies, large engineering firms, and specialized drilling contractors. Despite high cost, the value of subsurface information obtained justifies the expense—a single drill hole can save millions in failed foundation designs or confirm billions in ore reserves.
