Overview

A dental articulator is the mechanical stand-in for a patient's jaws on the laboratory bench. Plaster or printed casts of the upper and lower arches are fixed to its two frames in the bite relationship recorded in the clinic, and the instrument's artificial joints then move the casts the way the mandible moves — opening on a hinge, sliding forward in protrusion, swinging sideways in lateral excursion. A technician waxing a crown can therefore check that a cusp clears its antagonist not just in the closed bite but throughout the chewing envelope; without that check, restorations come back from the lab with high spots that must be ground in at the chair.

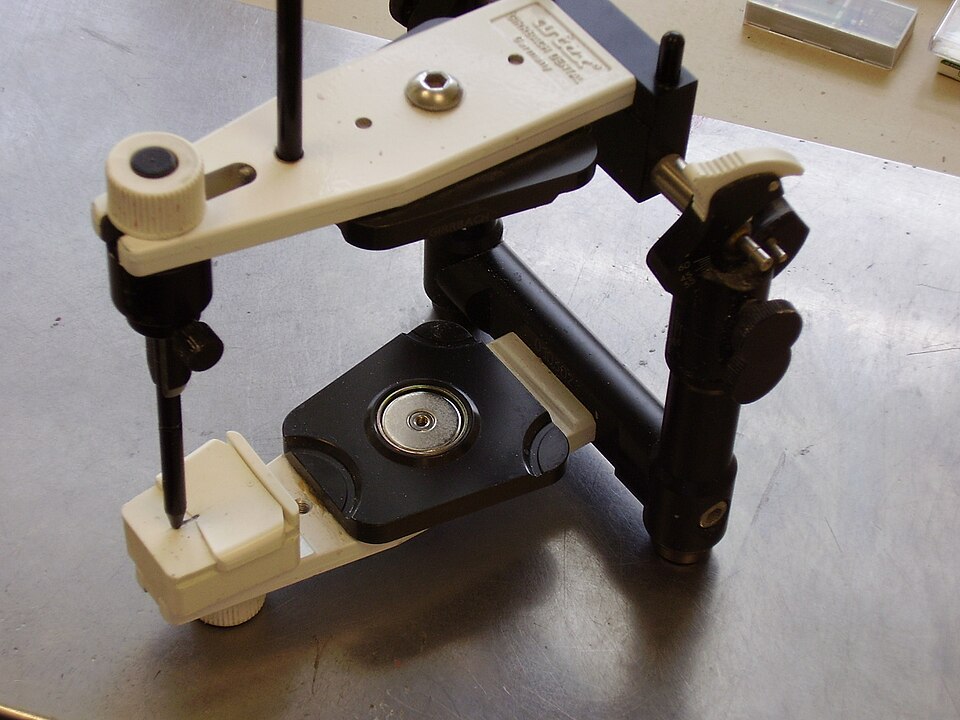

The instrument described here is the semi-adjustable arcon type, the workhorse of crown-and-bridge and denture work. "Arcon" (articulator-condyle) means the Condylar Ball balls sit on the upper-frame side and glide in fossa boxes on the lower posts, mirroring real anatomy where condyles belong to the mandible and fossae to the skull — though most manufacturers invert which frame physically carries which for handling convenience.

Frames and joints

The Upper Frame (Maxillary Member) and Lower Frame (Mandibular Member) are stress-relieved aluminum castings machined so the cast-mounting surfaces stay parallel within about 0.02 mm at the standard 110 mm separation. Rigidity is the entire value proposition: any flex between frames shows up directly as occlusal error in the finished restoration.

Each Condylar Mechanism is an adjustable artificial temporomandibular joint. The 12 mm hardened Condylar Ball rides along a replaceable Eminence Insert; rotating the Fossa Box against its engraved Condylar Inclination Scale sets the sagittal condylar inclination — the steepness of the slope the condyle descends during protrusion, typically programmed to 30–40° from a protrusive check bite. The pivoting Bennett Angle Wall sets how far the balancing-side condyle swings medially in lateral excursion (the Bennett angle, commonly estimated as L = H/8 + 12 from the protrusive record), and a calibrated Immediate Side Shift Shim adds 0–1.5 mm of immediate side shift, the bodily translation some joints exhibit before rotary movement begins. Once dialed in, the Condylar Lock Screw freezes the settings and the Centric Lock Latch can lock the whole instrument in centric relation for mounting.

Incisal pin and anterior guidance

Posterior support comes from the two joints; the third leg of the tripod is the Incisal Pin resting on the Adjustable Guide Table. Pin length fixes the vertical dimension of occlusion, and is deliberately raised or dropped in 1 mm graduations when the treatment plan opens or closes the bite. The table does more than support: tilting the Guide Table Platform up to 60° and raising the Lateral Guide Wing pair makes the pin tip climb during excursions exactly as the patient's front teeth force the jaw apart — anterior guidance. For complex reconstructions the technician instead fills a Custom Guide Table Blank with soft acrylic and runs the pin through the patient's recorded movements, carving a custom guidance surface that the new restorations must then reproduce.

Mounting and interchangeability

Casts attach through magnetic Magnetic Mounting Plate hardware: a rare-earth Retention Magnet pulls each plate against a three-point seat keyed by Index Pin Set, giving remount repeatability better than 0.02 mm. A Split-Cast Former molds a grooved verification index into the cast base, so any mounting error after transport shows as a visible gap at the split line.

Calibrated instruments take this further. Using the Calibration Master Gauge and Calibration Shim Set, every articulator in a fleet is adjusted to identical geometry, so a case mounted in the clinic transfers to any laboratory instrument without remounting — the casts ship on Disposable Mounting Tray plates and snap into the lab's frames in the same spatial relationship.

Facebow transfer

A bite record alone tells the articulator how the arches meet, not where they sit relative to the hinge axis — and an arc of closure drawn about the wrong axis changes occlusal contacts whenever the bite is opened or closed on the instrument. The facebow solves this: recorded against the patient's ear canals and infraorbital point, it captures the maxilla's position relative to the approximate hinge axis. On the bench, the Transfer Jig and Bitefork Clamp reproduce that recording, with a Cast Support Prop propping the bitefork against flexure, and the upper cast is plastered to its plate in true axis relationship before the lower cast is mounted against it through the check bite.

Use today

Semi-adjustable articulators remain standard in fixed prosthodontics, complete dentures, and occlusal splint fabrication. Digital workflows have not retired the concept so much as ported it: CAD software ships virtual articulators with the same condylar inclination, Bennett, and guidance parameters, and many scanners export mountings referenced to the physical instrument's geometry so a printed case drops straight onto the bench version for final verification.
