Directional Control Valve Product

Overview

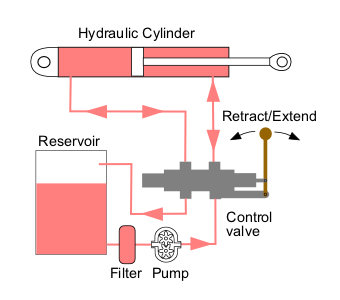

A directional control valve is the primary control element in most hydraulic circuits, switching pressurized flow between multiple work ports to reverse cylinder motion or motor rotation. The valve is a 4/3 spool design: four work ports (pump P, tank T, and two work lines A and B) and three spool positions (extend cylinder, neutral, retract). Solenoid operators energized from a control logic circuit (PLC, relay, or manual buttons) push the Spool Assembly to switch flow. A Manual Override handlever enables emergency control if electricity fails.

Spool design and porting

The Spool Assembly is a hardened steel cylinder with four lands (shoulders) that overlap port openings in the Valve Body. As the spool slides left or right, different port combinations open/close. In center position (null), flow routing depends on land overlap: open-center designs route pump flow directly to tank at minimal pressure, reducing heat and unloading the pump; closed-center designs block all flow, holding load in place without pilot pressure. Spool clearance is 10–20 µm per side; surface finish < 0.2 µm Ra is mandatory to prevent stick-slip and sluggish response.

Solenoid operators and centering

Two Solenoid Operator coils (one each direction) are mounted on the body. When the left solenoid energizes, its plunger pushes the spool left, opening port A to pump and port B to tank. Energizing the right solenoid does the reverse. When both coils are de-energized, dual Spring Centering Kit centered under compression push the spool back to neutral. Solenoid duty is typically intermittent (energized only during shift command), but can be continuous (e.g., push-button held down).

Manual override mechanism

The Manual Override is a mechanical backup allowing operators to shift spool without electricity (pump failure, emergency stop). A handlever or pushbutton is linked via a cam follower to the spool end. Pulling the lever shifts the spool against spring force. Override is slow (1–2 seconds to full stroke) compared to solenoid shift (0.1 seconds), but ensures safe controlled descent of loads in power-failure scenarios.

Port configuration and cavity mounting

The Valve Body is an aluminum A356 or ductile iron casting with a precisely honed spool bore and internal galleries. Work ports (A, B) connect to cylinders or motors; pump port (P) receives supply from the main pump; tank port (T) returns flow to reservoir. SAE CETOP-05 (NG10) or NG16 cavity patterns allow pilot-operated cartridge loads (pressure relief, check valves, proportional spools) to be mounted on a Subplate bolted beneath the main body.

Load holding and pilot operation

Simple open-center directional valves cannot hold a load suspended without continuous pump flow; any small spool leakage causes drift. Closed-center valves with pilot-operated check cartridges on the subplate enable load-holding with zero pump flow. A pilot-operated check (cartridge under the main body) uses a small pilot line from the opposite work port to crack the check and allow lowering; when the pilot pressure drops, the check springs closed, holding the load indefinitely.

Maintenance and reliability

Annual inspection includes solenoid coil resistance check (resistance should match nameplate ±10%), functional test of manual override, and measurement of spool response time via oscilloscope (compare left and right shift times). Fluid cleanlicity to ISO 18/16/13 is mandatory; particles cause spool stiction and accelerated wear. Seal replacement interval is 2000–4000 operating hours. Vent solenoid coils after extended offline storage (condensation risk); energize for 30 seconds before field deployment.
