Dobsonian Telescope

Overview

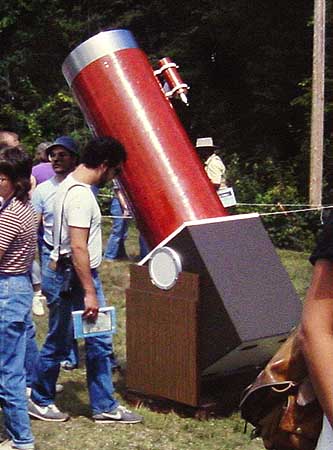

The Dobsonian telescope is the workhorse of amateur astronomy, delivering raw light-gathering power at an unbeatable cost. Named after John Dobson, who made his elegant alt-azimuth mount design publicly available, the Dobsonian pairs a Newtonian reflector, the simplest optical design, with a simple wooden rocker-box mount. The result is a large, stable, easy-to-use platform for visual observing that dominates club observing sessions and backyard surveys.

At its heart is the Primary Mirror Cell, a huge parabolic mirror that collects light and focuses it. The Secondary Mirror Assembly reflects that converging light out to the side toward the eyepiece, and the Focuser Unit moves the eyepiece to bring the image into sharp focus. The entire optical tube sits in a Rocker Box Base, a wooden box that rocks smoothly in two directions: the Altitude Bearing System tip the scope up and down, and the Azimuth Bearing System spin it left and right on its ground board.

No motors, no computers, no counterweights: just gravity, friction, and your hand on the tube. The design is so simple and effective that a competent amateur can build a Dobsonian in a garage and produce optical performance that rivals commercial instruments ten times the price.

How it works

The parabolic primary mirror is the optical engine. Starlight from a distant object arrives as plane waves, and the primary's curve bends all those parallel rays to converge at the focal point. Before they actually meet, the Secondary Mirror, a flat mirror tilted at 45 degrees, intercepts them and bounces them out to the side, where the Focuser Unit accepts an eyepiece. The eyepiece acts as a magnifying glass on the real image the primary created, giving the observer a bright, magnified view.

The primary mirror must be parabolic, not spherical, because a parabola naturally brings all rays to a single point, whereas a sphere leaves the outer rays out of focus. Achieving that curve to optical specification, often λ/8 wavefront error or better, is the heart of mirror grinding and polishing, and quality primaries take weeks to make.

Heat matters in reflectors because the tube is open at the front. Cold air at night flows down the inside, and the mirror, being exposed, cools rapidly. When the mirror is colder than the air inside the tube, convection currents distort the view. Observers often wait 20–30 minutes for the scope to reach thermal equilibrium before starting serious observing, and ventilation holes in the tube help speed that process.

The Rocker Box Base holds the optical tube and allows smooth two-axis motion with minimal friction. The Altitude Bearing System at each side of the tube sit on felt or Teflon pads in the rocker box and let you tilt the scope up and down by hand. The rocker box itself rests on a ground board, which rotates on three small Teflon pads, letting you swing the entire assembly left and right. The friction is tuned so the scope stays put once you let go, but moves easily under gentle hand pressure, no motors needed.

Collimation keeps the optical axis true. Over time, vibration and temperature shifts misalign the primary and secondary mirrors. A handful of screws on the Mirror Cell Housing adjust the primary's tilt, and screws on the Secondary Mirror Assembly adjust the secondary. Collimation is a skill that takes a night or two to learn but is essential for peak performance.

The Finder Scope helps locate targets in the sky. Because the main telescope's field of view is tiny, often just a fraction of a degree, stepping from the naked eye to the main eyepiece can be frustrating. A simple low-power finder scope or a red-dot sight mounted on the tube lets you center on a star first, then switch to the main eyepiece for magnification.
