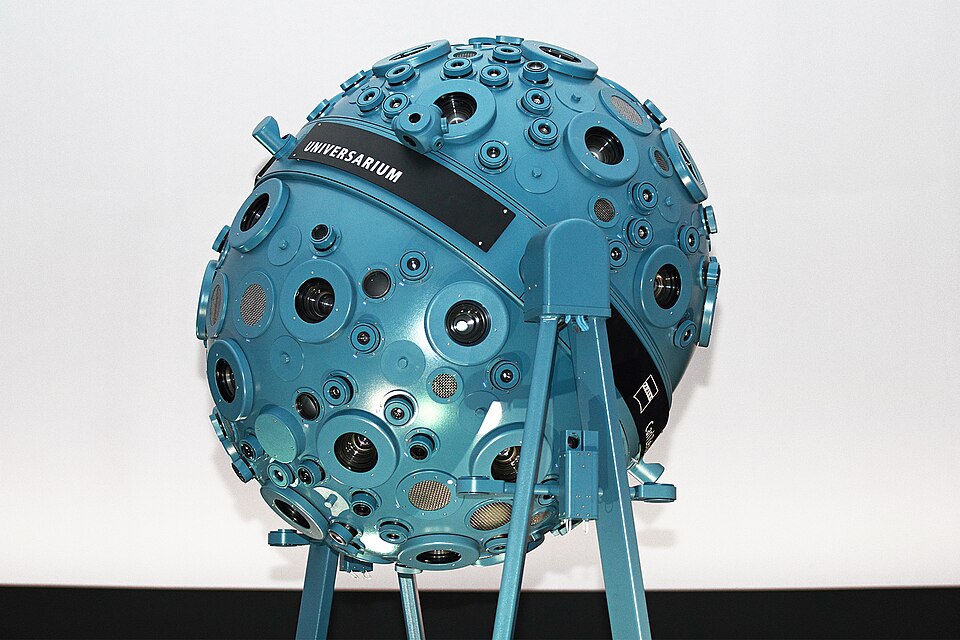

Planetarium Projector Product

Overview

A laser planetarium projector renders the night sky onto a hemispherical dome ceiling, letting an audience sit anywhere in the theater and see the whole sky at once. Unlike mechanical projectors that use thousands of individual star points punched into a metal slide, laser systems directly draw the scene in real time—every star, nebula, and galaxy rendering from a catalog. This flexibility lets an operator navigate the sky, zoom into any constellation, show star motion and precession, and overlay educational graphics, all without changing physical equipment.

The [[dome-planetarium-projector-laser-source|laser module]] produces three coherent beams—red, green, and blue—combined into a single beam path. The [[dome-planetarium-projector-optics-engine|projection optics]] include a wide-angle [[dome-planetarium-projector-fisheye-lens|fisheye lens]] that images the entire 180-degree hemispherical field onto the dome. The light from the [[dome-planetarium-projector-laser-source|lasers]] is modulated in real time by a [[dome-planetarium-projector-geometry-processor|GPU-based processor]] that corrects for the dome's spherical surface, ensuring that star positions remain accurate regardless of viewing angle.

The critical challenge is mapping a flat star database onto a sphere without distortion. The [[dome-planetarium-projector-geometry-processor|geometry processor]] solves this by computing a transformation from flat celestial coordinates to dome coordinates in real time. This transformation is calibrated once per installation using [[dome-planetarium-projector-calibration-camera|cameras]] that observe the dome surface and measure the actual light distribution, feeding that data back into the correction algorithm.

How it works

Inside the laser head, three semiconductor [[dome-planetarium-projector-red-laser|red]], [[dome-planetarium-projector-green-laser|green]], and [[dome-planetarium-projector-blue-laser|blue]] laser diodes emit coherent light at narrow linewidths (typically a few nanometers). These beams are combined using dichroic mirrors in the [[dome-planetarium-projector-laser-combiner|beam combiner]], so they travel along a single axis. The combined beam is attenuated and modulated by the [[dome-planetarium-projector-laser-driver|driver board]], which uses PWM or analog feedback to control the current into each diode and thus the intensity of each color independently. This allows real-time color control: showing a reddish nebula involves dimming green and blue while the red runs full power.

The [[dome-planetarium-projector-optics-engine|projection optics]] accept this combined beam and magnify it. A [[dome-planetarium-projector-fisheye-lens|fisheye lens group]] has a focal length much shorter than typical camera lenses, often just 10–15 mm, giving it the ability to project a 180-degree field of view. The [[dome-planetarium-projector-beam-shaping-optics|beam shaper]] ensures the laser spot size is optimized for the dome distance, preventing hotspots or dim regions.

The [[dome-planetarium-projector-geometry-processor|GPU]] is where the magic happens. It maintains the full [[dome-planetarium-projector-star-database|star catalog]]—millions of stars with position, magnitude, and spectral type—and generates rendering commands in real time. A user or educator controls the view via a [[dome-planetarium-projector-network-interface|network interface]], sending commands like "point at Orion" or "rotate to face south." The GPU transforms the requested view from flat celestial coordinates (right ascension and declination) to dome coordinates.

Because the dome is spherical and the [[dome-planetarium-projector-fisheye-lens|fisheye projection]] is from a single point, standard perspective projection applies, but the GPU must also account for the [[dome-planetarium-projector-calibration-camera|geometric calibration]] measured during installation. That calibration corrects for the projector's exact position, orientation, and any deviations in the dome shape. The result is that a star catalog position projects to the correct spot on the dome, and an observer anywhere in the theater sees it at the right place in the sky.

Color and intensity are matched to the stellar spectrum. A hot blue star is rendered with high blue, medium green, and low red; a cool red giant has the opposite balance. The [[dome-planetarium-projector-laser-driver|laser driver]] modulates power at up to 60 kHz, switching on and off so fast that the eye perceives a steady glow, averaging the duty cycle into perceived brightness.

[[dome-planetarium-projector-cooling-system|Active cooling]] is essential because lasers dissipate most of their input power as heat. The [[dome-planetarium-projector-heat-exchanger|heat exchanger]] either circulates cool water or blows ambient air over the laser heads, maintaining a safe junction temperature and preventing gradual efficiency loss and wavelength drift.

The [[dome-planetarium-projector-safety-shutter|safety shutter]] is a regulatory requirement. Laser systems, especially at the power needed for a large dome, are hazardous if directed into the eye. The shutter blocks all beam output if the projector loses power or if a safety switch is triggered. Modern installations also include interlocks on the dome doors: if someone enters during a show, the shutter automatically closes.
