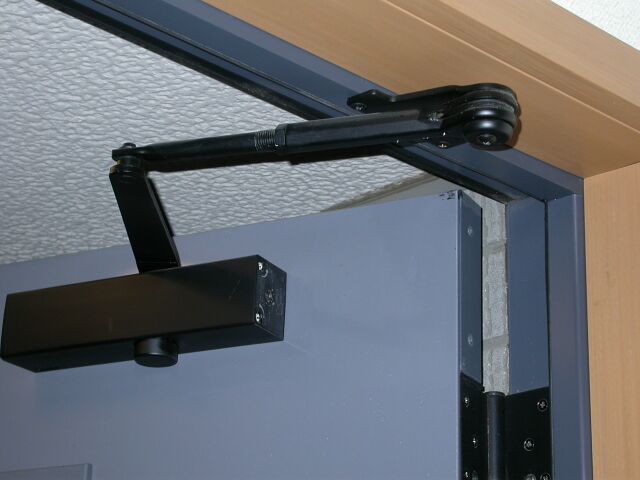

Hydraulic Door Closer Product

Overview

A hydraulic door closer is a mechanical device that automatically closes doors after they are opened and controls the closing speed to prevent slamming. The device is mounted above the door or on the door surface and uses a sealed hydraulic cylinder with a piston and controlled orifices to create damping. As the door opens, a spring stores energy; as the door closes, hydraulic resistance slows the motion in a smooth, controlled manner.

These closers are standard on commercial buildings, hospitals, offices, and public facilities where automatic closing is required for safety (fire egress, acoustic isolation) or accessibility (ADA compliance). Residential applications include heavy exterior doors, storm doors, and garage entries. The hydraulic principle ensures consistent performance regardless of ambient temperature (unlike pneumatic closers, which are temperature-sensitive) and is maintenance-free under normal conditions.

A door closer's size is rated 1–7, where Size 1 handles lightweight interior doors (20–25 kg) and Size 7 handles heavy commercial doors (40–60 kg).

Core mechanism: piston and hydraulic damping

The Piston Assembly is the heart of the closer. As the door opens, the Arm Linkage pulls the Piston Rod outward, extending the piston within the sealed Cylinder Barrel. This increases the volume of the rear chamber, creating a vacuum. Simultaneously, the front chamber is compressed, increasing pressure.

The Main Valve is an adjustable needle valve restricting how quickly hydraulic fluid can flow from the pressurized front chamber to the rear chamber. The smaller the orifice, the slower the flow, and the slower the closing. By turning the adjustment screw (typically labeled "1" through "4"), the technician controls closing speed.

When the user releases the door, the Spring Mechanism—a preloaded coil spring—forces the piston inward, pushing hydraulic fluid through the same restricted orifice, closing the door smoothly. The valve provides damping in both directions, slowing both opening and closing.

The Relief Valve is a safety pressure-limiting device; if the door is forced shut or held open against the spring force, pressure builds to approximately 50–100 bar, at which point the relief valve cracks open, preventing damage to the seals and cylinder.

Rack-pinion linkage

The Piston Rod is connected to the door motion through a clever mechanical converter: the Rack-Pinion Mechanism mechanism. The piston rod carries a linear toothed bar (rack), which meshes with a small gear (pinion) mounted on the Main Arm pivot shaft.

As the door opens, the arm rotates, driving the pinion, which in turn pulls the rack—and the piston—outward. This is a simple but elegant conversion of angular door motion to linear piston motion. The mechanical advantage of the rack-pinion geometry also allows a small hydraulic cylinder to control a wide range of door weights.

Spring force and closing mechanism

The Spring Mechanism is a preloaded coil spring enclosed within the closer body. As the door opens and the piston extends, the spring is stretched, storing mechanical energy. When the door is released or falls shut due to gravity, the spring contracts, pulling the piston back in and closing the door.

The spring preload is adjusted via the Spring Retainer—a collar with a threaded design that can be turned to compress or relax the spring. More preload increases the closing force, essential for heavy doors or doors on steep inclines. Insufficient preload on a large door results in it not closing completely.

Multi-stage closing control

Professional door closers include two adjustable valves for sophisticated closing control:

1. Main closing speed (1–4 setting): The Main Valve controls the majority of the closing stroke. Most of the door's motion is regulated here.

2. Latch speed (separate screw): The Latch Valve is a secondary valve controlling the final inch or two of closing, when the door is nearly shut. This is crucial—the latch phase determines whether the door whispers to a close (quiet) or slams (noisy, hazardous). Many doors are adjusted to close at speed "3" for the main phase but "2" or lower for the latch phase, ensuring a soft final approach.

Without a dedicated latch valve, a single main valve at speed "2" (quiet) would result in a very slow close overall, taking 20+ seconds for the full door swing. With dual valves, the main phase is quick (5–10 seconds), and only the final approach is slow.

Opening resistance and backcheck

Some door closers include a Backcheck Screw controlling resistance during opening. When adjusted, it restricts the outward flow of fluid, slowing how fast the door can swing open. This is valuable in high-traffic areas where a violently swinging door could injure someone or cause acoustic issues.

A higher backcheck setting (more resistance) is common in hospitals and educational buildings; residential applications typically leave backcheck disabled or minimal.

Arm configurations

Door closers come in several mechanical arrangements:

• Top-mounted arm: The closer body is mounted above the door, and the arm extends down to the door surface. This is the most common arrangement for new installations.
• Bottom-mounted (floor-mounted): The closer sits on the floor below the door frame, useful for double doors or recessed installations.
• Overhead concealed: The entire closer is hidden in a cavity above the door, visible only as a narrow slot. This requires custom framing.
• Multi-arm systems: Heavy or wide doors may use two closers, one on each side (pair of doors) or a specialized four-bar linkage for increased leverage.

Most arm types are compatible with Secondary Arm extensions, allowing the closer to be mounted closer to the hinge, which increases mechanical advantage.

Installation and mounting

The Mounting Bracket is bolted to the fixed frame and to the door. Proper installation requires:

1. The closer body is mounted horizontally above the door or on the frame face.
2. The arm is bolted to the door as close to the hinge as clearances allow.
3. The arm is adjusted (via pivot pin positioning) so the closer is neither in compression nor in extreme extension at any door angle.

Misaligned installation—mounting too far from the hinge or at the wrong angle—can result in binding, uneven closing speed, or mechanical failure. Professional door closer installation includes full commissioning: checking the speed with a stopwatch, adjusting valves, and verifying the door closes and latches without slamming.

Hydraulic fluid and maintenance

The Fluid Reservoir within the housing typically contains 200–500 mL of ISO VG 32–46 mineral oil or synthetic hydraulic fluid. The fluid serves three functions:

1. Energy transmission: Transmits force from the spring to the piston.
2. Damping: The fluid's viscosity and flow restriction create the closing speed control.
3. Lubrication: Lubricates the piston seals, rack-pinion mesh, and valve components.

Under normal use (1–2 million cycles), hydraulic fluid remains stable. Overheating (above 60°C) or continuous exposure to sunlight can degrade the fluid, increasing viscosity and reducing damping. Professional maintenance includes periodic fluid inspection (check for cloudiness, contamination) and replacement every 5–10 years in high-use facilities.

Modern closers are designed to be field-serviceable; the End Cap can be removed, allowing refill or fluid exchange. Most failures are seal-related (leakage) rather than fluid degradation, and many leaks can be repaired by replacing the piston seals without replacing the entire unit.

Cycle life and reliability

A quality hydraulic door closer is rated for 1,000,000+ open-close cycles at its rated door weight. This equates to approximately 10–20 years of typical office use (5–10 cycles per day in a low-traffic area). Heavy-use locations (hospitals, retail) may require replacement in 5–7 years.

Failure modes include:

• Seal leakage: Hydraulic fluid seeps past the piston seal, reducing damping. The door closes faster over time.
• Valve stiction: The main valve needle becomes sticky (from corrosion or particle contamination), causing inconsistent closing speed.
• Spring relaxation: The return spring weakens due to long-term compression cycling, reducing closing force.
• Arm cracking: Steel arms can develop cracks under severe use or impact loading.

Preventive maintenance (annual inspection, cleaning, fluid check) significantly extends life.

Standards and accessibility

Door closers are regulated by building codes and standards:

• ADA (Americans with Disabilities Act): Door closer must allow a disabled person to open the door. Maximum pull force is 22 N (5 lbf) at 30 inches from the hinge, which typically requires a Size 1 or 2 closer on most residential doors. Restaurants and public buildings often use Size 1 closers to meet ADA.
• ANSI/BHMA Standards: Define function types (closers with hold-open, delayed action, backcheck, etc.) and testing protocols.
• Fire/Life Safety Codes: Accessible hand-operated doors must be able to be opened without releasing a door closer (closers must not interfere with emergency egress). Stairwell and fire-rated doors often use self-closing closers as required by code.

Cost and market

Residential door closers cost €50–150 per unit; commercial-grade models cost €150–400. Installation labor adds €100–300. High-security or specialized closers (delayed-action, electronically controlled) cost €500+.

Replacement and maintenance are common services for locksmiths and door specialists, as closers are wear items and often fail before the building's lifespan. Annual adjustment of speed settings during facility maintenance is standard practice to compensate for seal wear and seasonal temperature changes.
