Hydraulic Door Closer Product
Overview

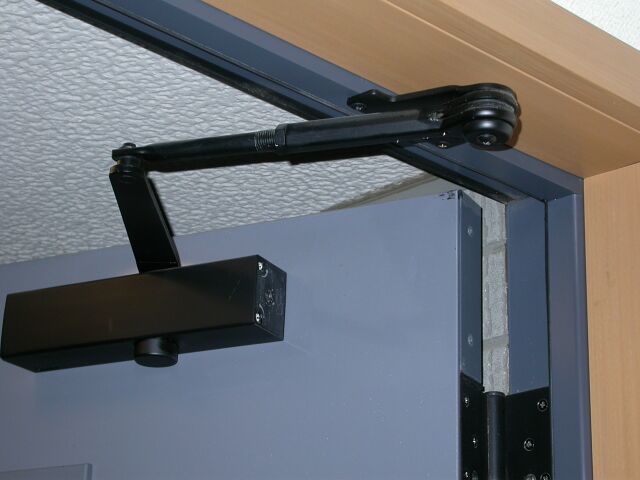

A hydraulic door closer is the boxy device mounted at the top of nearly every commercial door. Its job sounds trivial — shut the door — but it has to do so for hundreds of thousands of cycles, fast enough to latch, slowly enough not to strike the next person through, and gently enough to satisfy accessibility codes that cap opening force at around 22 N (5 lbf) on interior doors. It does this with two coupled systems inside one Closer Body: a mechanical spring that stores the closing energy, and a hydraulic circuit that decides how quickly that energy is allowed back out.
The architecture used in almost all modern surface closers is the rack-and-pinion layout. The Arm Linkage linkage turns the Pinion Shaft as the door swings; the pinion's gear segment drives the racked Hydraulic Piston along the bore, compressing the Spring Pack. Closing is the same chain in reverse, with oil flow through the Regulating Valve Set acting as the brake.
How it works
Opening the door rotates the Main Arm and pinion, pulling the piston against the Coil Spring. Oil on the spring side of the piston must move to the shaft side, and during opening it does so almost freely through the Check Ball valve in the piston face, so the user feels mostly spring force plus friction. Past roughly 75 degrees the Backcheck Valve restricts a separate oil path, building a hydraulic cushion that keeps a flung or wind-caught door from slamming into the adjacent wall — backcheck is a damper, not a stop, and a separate overhead stop is still specified where abuse is expected.
When the door is released, the spring pushes the piston back. Now the check ball seats, and the only way out for the oil is through the needle valves. The Sweep Speed Valve meters flow through the main arc of travel, typically tuned so the door takes 5–7 seconds to swing from 90 degrees to about 10 degrees. At that point a port in the bore is uncovered and control passes to the Latch Speed Valve, which lets the door accelerate slightly over the last few degrees so it has enough momentum to compress the latch bolt and seat against the weatherstrip. A fourth adjustment on some models, the Delayed-Action Valve, holds the door nearly open for up to 60 seconds before sweep begins — useful behind wheelchair users and hospital beds.
Closing force is set two ways. Coarse power — the EN 1154 "size" — comes from spring preload, adjusted by turning the Spring Adjusting Nut on the Spring Tube; a size 3 closer suits an 850 mm interior door while a size 6 handles a 1,400 mm entrance slab. Fine behavior comes entirely from the valves. Because viscosity falls as oil warms, closers are filled with high-viscosity-index fluid so a door adjusted in summer does not slam in winter.
Construction
The Body Casting is die-cast aluminum with a honed bore that serves directly as the cylinder wall; there is no separate liner. Both ends of the bore are closed by threaded End Plugs sealed with O-rings, and the pinion shaft exits through Oil Seals at top and bottom so the closer can be handed for left- or right-swing doors. Shaft side-loads are taken by needle or Ball Bearing supports, since any pinion wobble would chew the seals and weep oil — the classic failure mode of an old closer is exactly such a leak, visible as a dark streak down the door.
The Piston Seal Ring seals piston to bore so that essentially all oil transfer happens through the drilled valve galleries. The pinion gear segment and rack teeth are induction-hardened; at size 6 the tooth contact carries the full 87 N·m of closing torque every cycle.
Outside the body, the Forearm Rod is threaded for length so the installer can preload the mechanism roughly 15 degrees with the door closed, and the Elbow Pivot Pin forms the knee of the linkage. The Frame Shoe anchors the arm to the frame; on parallel-arm mounting the geometry reverses and maximum power drops about 25 %. Thin door skins get a Mounting Backplate, and narrow-stile aluminum storefront doors use a Drop Plate to clear the glazing. A snap-on Cover Shroud hides the valve screws from casual tampering.
Variants and standards
The same internals appear in concealed overhead closers, floor springs (where the body sits in a cement case under the threshold), and cam-action closers, which replace the rack with a heart-shaped cam to cut opening force for accessibility. Grade 1 closers under ANSI/BHMA A156.4 must survive 500,000 cycles with no more than 15 % loss of closing force; fire-door closers additionally carry UL 10C or EN 1634 listings, since a fire door that fails to self-latch fails its rating entirely.
Build & assembly graph
expand / collapse · shared sub-assemblies converge · links to related products · est. labourTap an assembly to expand/collapse · tap a part to open it · use “Open page” for any node · drag to pan, scroll to zoom.
Bill of materials
7 top-level lines · 34 rows shown · 31 parts total · indented to 3 levels| # | Item / sub-assembly | Part no. | Qty/assy | Ext. qty | Parts | Type |
|---|---|---|---|---|---|---|
| 1 | Closer Body 5 parts | door-closer-body | 1× | 1 | 7 | assembly |
| 1.1 | Body Casting | door-closer-casting | 1× | 1 | — | part |
| 1.2 | End Plug | door-closer-end-plug | 2× | 2 | — | part |
| 1.3 | Cover Shroud | door-closer-cover | 1× | 1 | — | part |
| 1.4 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 1.5 | Oil Seal | oil-seal | 2× | 2 | — | part |
| 2 | Spring Pack 4 parts | door-closer-spring-pack | 1× | 1 | 4 | assembly |
| 2.1 | Coil Spring | coil-spring | 1× | 1 | — | part |
| 2.2 | Spring Guide Rod | door-closer-spring-guide | 1× | 1 | — | part |
| 2.3 | Spring Tube | door-closer-spring-tube | 1× | 1 | — | part |
| 2.4 | Spring Adjusting Nut | door-closer-adjusting-nut | 1× | 1 | — | part |
| 3 | Rack-and-Pinion Drive 5 parts | door-closer-piston-drive | 1× | 1 | 6 | assembly |
| 3.1 | Hydraulic Piston | door-closer-piston | 1× | 1 | — | part |
| 3.2 | Pinion Shaft | door-closer-pinion | 1× | 1 | — | part |
| 3.3 | Ball Bearing | ball-bearing | 2× | 2 | — | part |
| 3.4 | Piston Seal Ring | door-closer-piston-ring | 1× | 1 | — | part |
| 3.5 | Check Ball | door-closer-check-ball | 1× | 1 | — | part |
| 4 | Regulating Valve Set 5 parts | door-closer-valve-set | 1× | 1 | 5 | assembly |
| 4.1 | Sweep Speed Valve | door-closer-sweep-valve | 1× | 1 | — | part |
| 4.2 | Latch Speed Valve | door-closer-latch-valve | 1× | 1 | — | part |
| 4.3 | Backcheck Valve | door-closer-backcheck-valve | 1× | 1 | — | part |
| 4.4 | Delayed-Action Valve | door-closer-delay-valve | 1× | 1 | — | part |
| 4.5 | O-Ring Set | oring-set | 1× | 1 | — | part |
| 5 | Arm Linkage 5 parts | door-closer-arm | 1× | 1 | 5 | assembly |
| 5.1 | Main Arm | door-closer-main-arm | 1× | 1 | — | part |
| 5.2 | Forearm Rod | door-closer-forearm | 1× | 1 | — | part |
| 5.3 | Elbow Pivot Pin | door-closer-elbow-pin | 1× | 1 | — | part |
| 5.4 | Frame Shoe | door-closer-shoe | 1× | 1 | — | part |
| 5.5 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 6 | Mounting Hardware 3 parts | door-closer-mounting | 1× | 1 | 3 | assembly |
| 6.1 | Mounting Backplate | door-closer-backplate | 1× | 1 | — | part |
| 6.2 | Drop Plate | door-closer-drop-plate | 1× | 1 | — | part |
| 6.3 | Fastener Set | fastener-set | 1× | 1 | — | part |
| 7 | Hydraulic Fluid Fill | door-closer-fluid | 1× | 1 | — | part |
