Overview

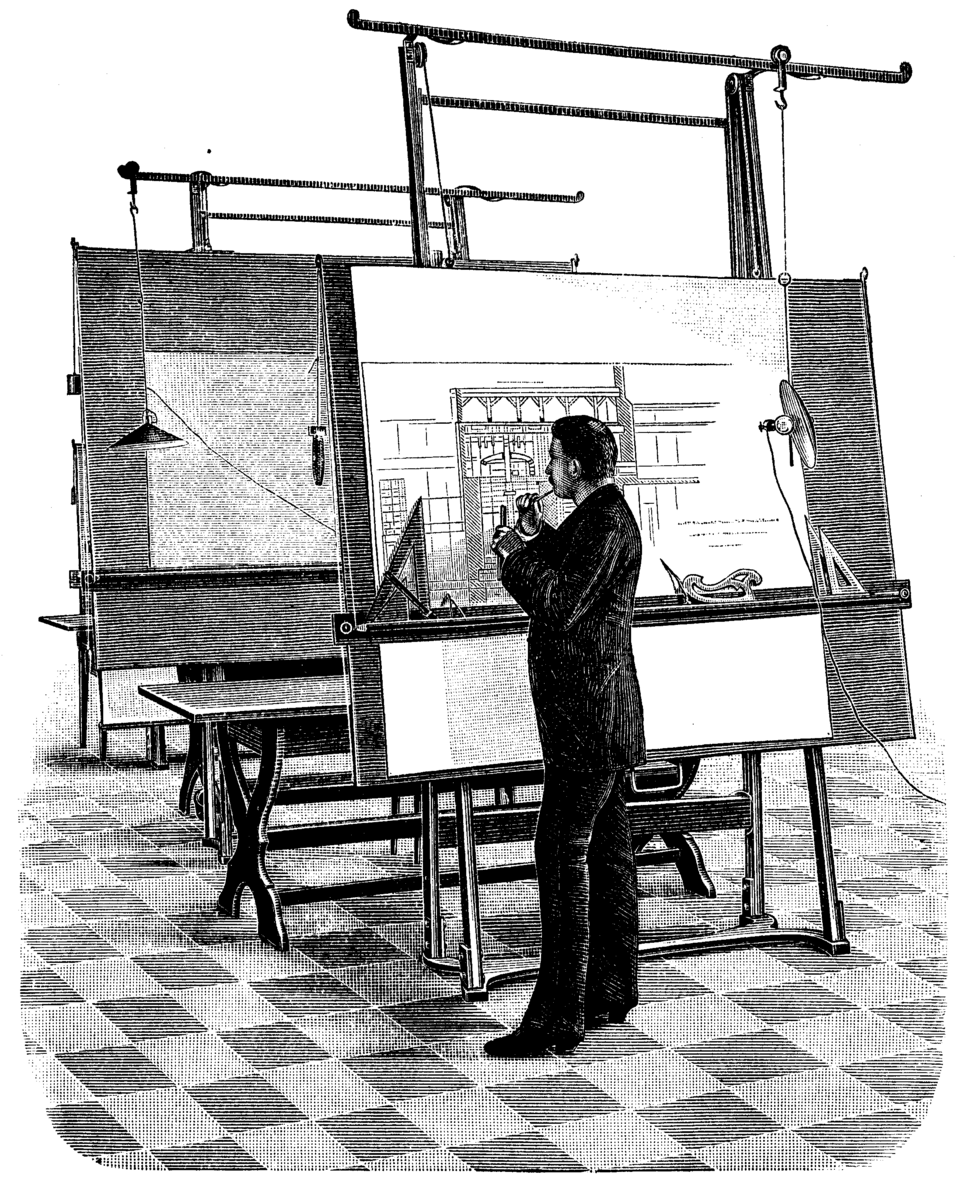

A drafting table is a work table built around one requirement: a large, perfectly flat surface that can be inclined toward the user. Technical drawing on an A0 sheet means reaching across more than a metre of paper; tilting the board 15–45 degrees brings the far edge toward the eye, keeps sight lines near perpendicular to the paper, and lets the drafter work standing or on a tall stool without stooping. The format predates CAD by centuries and survives today in architecture schools, pattern making, illustration, and any work where full-size sheets are still drawn or checked by hand.

The instrument-grade accuracy lives in two places: the Drawing Board Top must be flat and stay flat, and the Parallel Bar must translate across it without skewing. Everything else — the Base Frame, the Height Adjustment Mechanism, the Tilt Mechanism — exists to position those two elements rigidly.

The board

The Board Core is 18–25 mm MDF or stave-core lumber selected for freedom from warp. It is faced with a Melamine Skin on both sides, not for appearance but for balance: a panel laminated on one face only will cup as humidity changes, so the bottom skin mirrors the top. A steel Board Underframe under the panel resists sag, and a Edge Band protects the corners. Most working tables add a replaceable Vinyl Board Cover — a 1.5 mm self-sealing vinyl sheet that gives pencil lines uniform darkness and closes up after compass pricks, where bare melamine is too hard and glossy for good graphite response.

Tilt and height

The board pivots on two Pivot Hinges set near its balance line so the unbalanced moment stays small at any angle. Angle is held by Ratchet Quadrants: toothed steel sectors engaged by spring-loaded Locking Pawls, giving positive 5-degree steps that cannot slip under drawing pressure the way friction clamps can. A Tilt Release Handle under the front edge lifts both pawls at once, so the angle changes one-handed; releasing the handle re-engages the nearest tooth. A printed Angle Scale makes settings repeatable.

Height adjustment is telescopic. Each Inner Column slides inside a Leg Column on acetal Slide Bushings, with a Coil Spring in each leg counterbalancing part of the board weight so raising the table does not require lifting its full mass. A cam-action Clamp Lever locks the chosen height by friction, backed up by a spring-loaded Index Pin dropping into holes drilled at 25 mm increments — the pin is the safety: if the clamp loosens, the board settles onto the pin rather than collapsing. The working range, roughly 75 to 110 cm, covers seated use with a standard chair through standing work.

The parallel bar

The Parallel Bar replaced the loose T-square in professional practice because it cannot rock against the board edge. The extruded aluminium Bar Blade spans the full board width and is guided at each end by a Guide Cable — a stainless cable anchored at the board corners, turned by Cable Pulleys, and crossed through the bar ends. The crossed-cable arrangement is a mechanical constraint: any attempt to skew the bar pays out cable on one diagonal while demanding it on the other, so with slack removed by the Cable Tension Screws the bar can only translate, staying parallel to its original line to within the blade's own straightness, typically 0.1 mm per metre. Small Roller Foot wheels hold the blade a fraction of a millimetre off the paper so it never smears fresh graphite or ink, and the blade's raised acrylic edge strips prevent ink wicking under the edge when ruling with technical pens. A Bar Brake locks the bar in place when it is being used as a base for set squares.

Base and stability

A tilted board pushes the load centre forward, and a drafter leans on the top edge, so the Base Frame is designed for overturning rather than for crush load. Each leg is a steel column welded to a long Foot Channel reaching forward under the board, tied to the other leg by a Cross Brace and levelled on threaded Leveling Glides. A Footrest Bar bar between the legs supports the feet during long sessions on a drafting stool. The complete table weighs 35–55 kg, most of it deliberately low in the structure.

Accessory equipment mounts to the board rather than the frame: the Pencil Ledge keeps instruments from sliding off the inclined surface, and a clip-on Side Tray holds scales and leads. Drafting machines — articulated-arm protractor heads — bolt to the same board edge on larger studio tables, replacing the parallel bar where angled ruling dominates the work.
