A drain water heat recovery (DWHR) unit is a passive heat exchanger that captures wasted thermal energy from hot shower drain water and uses it to pre-heat incoming cold supply water. The device is a simple coaxial copper tube assembly installed vertically in the main drain stack; warm drain water flows downward through the outer tube while cold supply water flows slowly upward through an inner tube, transferring heat via conduction through the copper walls.

During a typical 10-minute hot shower, a household wastes 50–90% of the energy used to heat water—that heat exits down the drain. A DWHR unit recovers 40–60% of this waste heat, reducing hot water demand and lowering water heating energy consumption by 5–15% in homes with frequent showers. The investment typically pays for itself in 5–10 years through reduced energy bills, with minimal maintenance and no moving parts.

How it works

Cold mains water (10–15°C) enters the [[drain-heat-recovery-inlet-outlet|inlet tee]] on the [[drain-heat-recovery-core-exchanger|heat exchanger]] supply manifold. A [[drain-heat-recovery-flow-restrictor|restrictor orifice]] limits flow to ~0.5–1 GPM (slow, to maximize residence time and heat transfer). The cold water is forced into the [[drain-heat-recovery-inner-tube|inner copper tube]], where it flows upward in the opposite direction to the drain flow, achieving counter-flow arrangement (thermodynamically optimal).

Simultaneously, hot drain water (35–45°C during a shower) from the fixture enters the top of the [[drain-heat-recovery-outer-tube|outer tube]] and flows downward by gravity. The copper tube walls conduct heat from the hot drain water (outside) to the cold supply water (inside). Over the 3–5 foot length of contact, the supply water temperature rises by 5–15°C, exiting at 20–25°C (lukewarm) instead of 10°C (cold).

The pre-heated supply water exits through the [[drain-heat-recovery-outlet-port|outlet port]] and is routed to either:

1. Direct to hot water tank inlet: If the water heater is nearby, pre-heating its inlet water reduces the energy burden on the heater.
2. Direct to fixtures: If a recirculating pump is present, pre-heated supply can satisfy fixtures more quickly, reducing run-off waste.
3. Mixed with mains cold supply: A [[drain-heat-recovery-thermostatic-valve|optional mixing valve]] combines recovered heat with fresh cold water to moderate temperature before reaching fixtures.

The [[drain-heat-recovery-bypass-check-valve|outlet check valve]] prevents backflow when the shower is off; without it, thermosiphoning could allow hot water in the tank to back-feed into the supply tube, creating a parasitic heat loss path.

Components & Design

Heat Exchanger Core

The [[drain-heat-recovery-core-exchanger|core]] is a brazed copper tube assembly: a 1.5–2 inch outer tube (drain passage) with a 3/4–1 inch inner tube (supply passage) wound in a helix inside it. The space between tubes is minimized (1–2 mm clearance) to maximize conductive heat transfer. A [[drain-heat-recovery-spiral-spacer|plastic spiral insert]] maintains the inner tube position and creates turbulent flow, improving heat transfer coefficient.

Copper is chosen for its high thermal conductivity (385 W/m·K, versus aluminum 205 or steel 50), ensuring efficient heat transfer even with modest contact time. The tubes are soft-soldered or brazed together at the top and bottom; joints are filler-metal connections (typically 95/5 tin/silver brazing rod or lead-free solder) rated for potable water compatibility.

Typical dimensions: 3–5 feet of active heat exchange length per fixture. A house with one shower usually has 3–4 feet; a house with multiple showers benefits from 5–6 feet or parallel units. The longer the core, the more time the cold supply water spends in contact with the warm drain, increasing the temperature rise.

Supply Inlet & Outlet

The [[drain-heat-recovery-inlet-outlet|supply inlet tee]] is installed in the cold water main or the hot water heater inlet. A [[drain-heat-recovery-flow-restrictor|fixed restrictor orifice]] (drilled to 0.060–0.080 inch diameter) limits flow through the core to 0.5–1 GPM. This "flow strangling" is deliberate: reducing flow increases residence time (distance ÷ velocity), allowing more heat transfer. Most of the cold water bypasses the core via the [[drain-heat-recovery-outlet-port|outlet manifold tee]]; only a fraction (0.5–1 GPM) is pre-heated.

The [[drain-heat-recovery-outlet-port|outlet discharge]] is typically routed to the hot water tank inlet (pre-heating the tank source) or to the hot water distribution line just upstream of fixtures. If the tank inlet is not convenient, a direct connection to the hot water line (via a [[drain-heat-recovery-thermostatic-valve|mixing valve]]) is acceptable.

Drain Integration

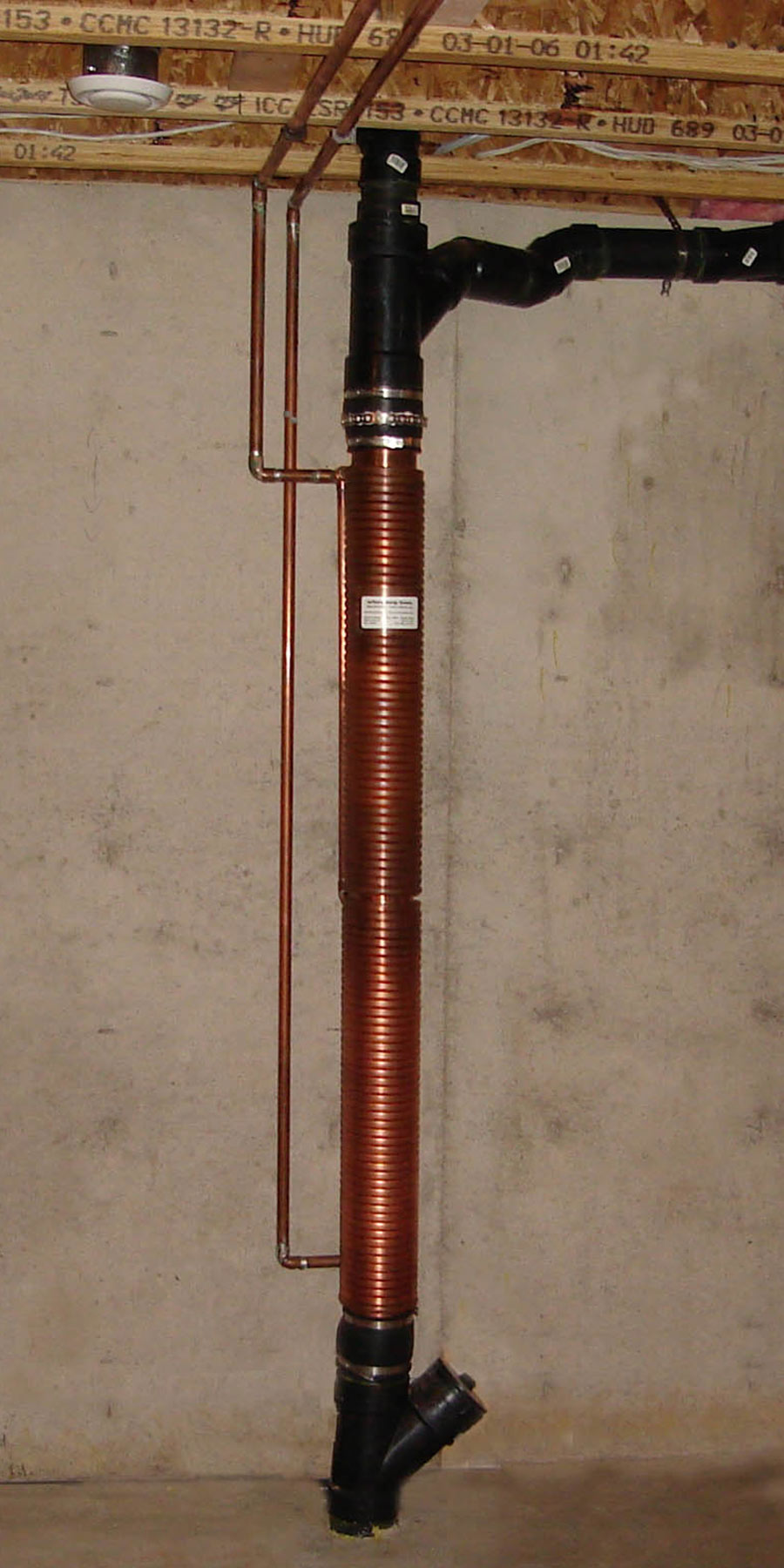

The heat exchanger is inserted into the vertical main drain stack (typically a 1.5–2 inch cast iron or PVC vent/waste line exiting the fixtures). The top and bottom of the unit are secured using [[drain-heat-recovery-drain-connections|no-hub rubber couplings]] (stainless steel bands with EPDM gaskets), which grip the outer tube and the existing drain pipes. This design allows retrofit installation without soldering or major modification to the drain system.

The [[drain-heat-recovery-mounting-brackets|L-bracket support]] (stainless, rated 50 lb) fastens the heat exchanger to nearby wall studs, supporting its weight and vibration loads. Without support, the unit can vibrate or sag under its own weight plus the dynamic load of flowing drain water.

Thermal Insulation

The entire assembly is wrapped in [[drain-heat-recovery-insulation-jacket|1–2 inch closed-cell polyethylene foam]] (R-6 to R-8 per inch rating). This reduces heat loss from the outer tube (drain) to ambient air and heat loss from the pre-heated inner supply to ambient. In an uninsulated basement, ambient temperatures can be 10–15°C; without insulation, the warm drain water loses ~15–20% of its heat to the surrounding air rather than transferring it to the cold supply. Insulation improves efficiency by 5–10 percentage points.

Anti-Siphon Check Valve

The [[drain-heat-recovery-bypass-check-valve|check valve on the outlet]] (cracking pressure 0.25–0.5 PSI) is essential. Without it, the density difference between the pre-heated water (lower density, ~998 kg/m³) and surrounding cold water (higher density, 1000 kg/m³) creates a thermosiphon effect: hot water from the tank can back-flow into the recovery tube when the shower is off, losing heat to ambient air. The check valve blocks this reverse flow, preventing the parasitic loss.

Heat Recovery Efficiency & Energy Savings

Heat recovery efficiency is the ratio of actual heat transferred to the maximum theoretical heat (if the supply water were heated to drain temperature):

Efficiency = (T_supply_out − T_supply_in) / (T_drain_in − T_supply_in)

A typical shower scenario:

• T_drain_in = 40°C (hot drain water at shower)
• T_supply_in = 10°C (cold mains water)
• T_supply_out = 25°C (pre-heated to ambient)

Efficiency = (25 − 10) / (40 − 10) = 15 / 30 = 50%

At 50% efficiency, a 10-minute shower recovering 40 liters of heat achieves ~200 MJ (0.056 kWh) of recovery. This offsets ~5–7 kWh of annual water heating energy (assuming 100 showers/year). At $0.12/kWh, this is $30–40/year savings. A system costing $800–1200 installed repays itself in 20–30 years.

However, in colder climates or homes with frequent daily showers, savings can reach $80–100/year, reducing payback to 10–15 years. Homes in mild climates (where ground temperature is already 18–20°C) see minimal benefit.

Installation Considerations

Location: The unit must be installed vertically in a drain stack that carries warm water. The main shower drain (hot water exit) is ideal. Lavatory or toilet drains (cold, low temperature) offer minimal recovery benefit.

Orientation: The unit must be vertical or near-vertical (within 30° from vertical) for counter-flow principle to function. Horizontal installation eliminates the gravity-driven down-flow and breaks the counter-flow arrangement.

Supply Outlet: Pre-heated water must reach the hot water heater inlet or be mixed into the hot water distribution. A direct connection to a cold water tap (instead of going to the heater) wastes the recovery benefit; the heater still needs to heat cold mains water for later use.

Pressure Drop: The [[drain-heat-recovery-flow-restrictor|restrictor]] introduces 5–10 PSI of pressure drop. The mains pressure must be adequate (minimum 20 PSI) to supply the fixture at rated flow despite the restriction. Most homes have 40–60 PSI mains, so this is not typically a problem.

Maintenance & Cleaning

Annual Flushing: Sediment and mineral deposits accumulate in the inner tube over time, reducing heat transfer. An annual system flush (reversing cold water supply direction to clear debris) is recommended. Some installers include a [[drain-heat-recovery-outlet-port|flushing port]] tee allowing easy drain-down and manual cleaning.

Sediment Traps: In areas with hard water, a sediment trap (removable screen or cartridge) upstream of the inlet can reduce clogging. The trap is cleaned annually.

Drain Maintenance: The outer tube (drain passage) generally self-cleans as hot water and soap from the shower dissolve and flush accumulated residue. However, extended periods of non-use can allow mineral buildup; running hot water for 30 seconds monthly prevents stagnation.

Limitations & Failsafe

Temperature Sensitivity: Recovery is maximum when the drain water is hottest (40–45°C). During a winter cold spell when mains water temperature drops to 5°C, the recovery magnitude increases (ΔT larger), but the supply water still exits at only 20°C. The system cannot raise water temperature above the drain temperature.

Flow Dependency: As shower flow increases (higher flow rate), the contact time decreases, reducing heat transfer. At very high flow (10+ GPM), efficiency drops to 20–30%. At very low flow (<2 GPM), efficiency approaches 60% but fixture performance may suffer.

No Impact on Shower Comfort: The pre-heated water exiting the recovery unit is still lukewarm (~20–25°C). It must be mixed with mains hot water (from the water heater) at the fixture to achieve a comfortable shower temperature (35–40°C). The recovery unit is a pre-heating stage, not a standalone hot water source.

Standards & Codes

Drain water heat recovery units are not independently regulated in plumbing code but must comply with NSF/ANSI 350 (Onsite Water Treatment Systems) if they treat or alter water quality. Most DWHR units have no moving parts and introduce no chemicals, so NSF certification is not required. However, proper backflow prevention (the [[drain-heat-recovery-bypass-check-valve|check valve]]) is mandated to prevent back-contamination of the mains supply.

Energy codes (IECC, Title 24 California) do not mandate DWHR installation but may offer energy credits or rebates in regions incentivizing conservation. Some utility companies offer $200–500 rebates for DWHR installation as part of water heating efficiency programs.

The measure is most cost-effective in cold-climate regions with frequent hot showers and high water heating energy costs (electric resistance heating). In regions with cheap natural gas or solar water heating, payback periods extend beyond 30 years, making the investment marginal.
