Overview

Electronic Article Surveillance (EAS) gates are perimeter security systems installed at retail store exits, detecting tagged merchandise attempting to leave the building without authorization. The RF-based gate transmits a carrier signal across the doorway, and when a security tag passes through this zone, the tag reflects the RF energy. The system detects this reflection, differentiating between active tags and the ambient RF environment, and triggers an alarm.

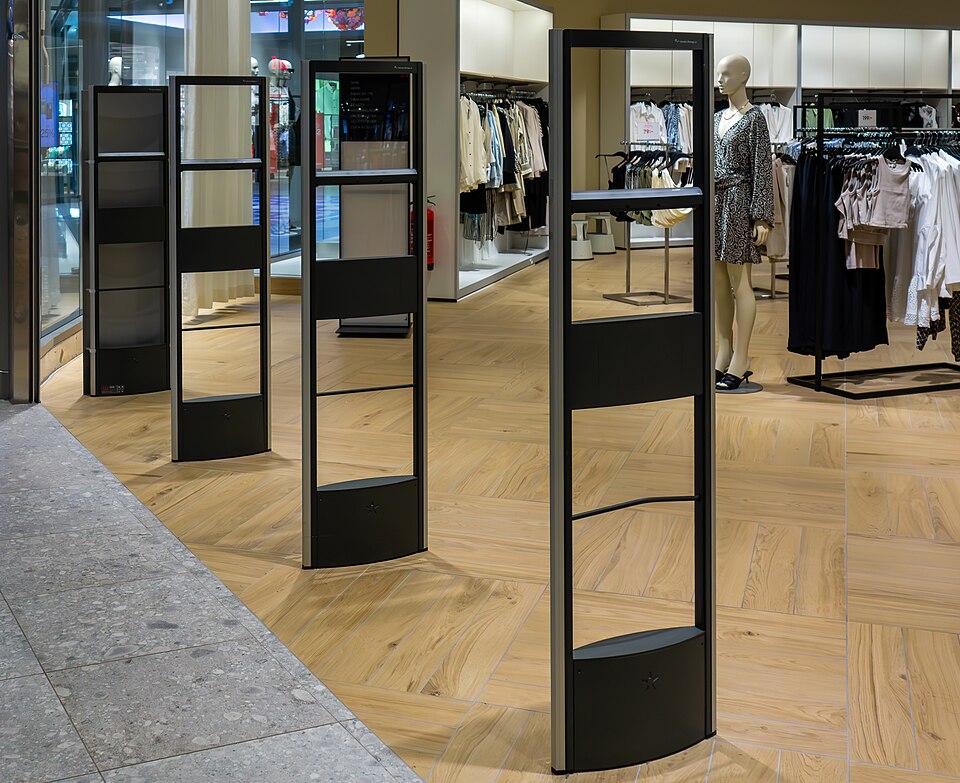

The typical installation consists of two vertical pedestals flanking the exit door: a left pedestal housing the RF transmitter, and a right pedestal with the receiver. A central electronics cabinet processes signals and controls the alarm (audio tone + strobe light). Optional people counters can track foot traffic, providing data on store conversion rates.

How it Works

A customer exits the store carrying merchandise. If any item still has an active Security Tag Detacher tag attached (indicating it was not purchased), the customer passes through the EAS Security Gate formed by the two antenna pedestals.

The Left Antenna Pedestal pedestal houses an Transmit Antenna Array (transmit coil) and a Transmitter PCB that generates an 8.2 MHz RF carrier signal. This is a standard frequency used by many EAS systems, chosen to minimize interference with communications bands. The transmitter drives 10–20W of RF power into the antenna coil, creating a standing RF field across the doorway.

A security tag contains a resonant LC circuit (inductor and capacitor) tuned to respond at 8.2 MHz. When the tag passes through the RF field, it absorbs energy from the transmit signal and re-radiates (scatters) that energy. This re-radiated signal, typically only microwatts in power, is very weak compared to the original signal.

The Right Antenna Pedestal pedestal contains an Receive Antenna Array (receive coil) and a Receiver Preamplifier (low-noise preamplifier). The receive antenna is positioned and oriented so that it receives the transmitter signal weakly (or through circulator isolation) and the re-radiated energy from tags strongly. The low-noise preamplifier (typically 4 dB noise figure) amplifies the received signal by 20–30 dB, and a Detector Circuit (envelope detector) converts the RF signal to a baseband video signal (low-frequency voltage proportional to tag presence).

This baseband signal feeds the Main Controller PCB—a microcontroller that continuously samples the detector output. The controller is tuned to recognize the signature of a tag: a sudden increase in signal level above the noise floor, lasting 50–500 milliseconds as the tag passes through the detection zone. Environmental RF noise (from power supplies, wireless networks, etc.) creates random fluctuations, which the controller filters using time-domain signal processing.

When a tag is detected, the microcontroller triggers the Alarm & Strobe Unit. A relay energizes the Speaker (85 dB siren tone) and strobes the Strobe Light Assembly (xenon flash) at 1–2 Hz. Most systems sound for 3–5 seconds unless manually reset, giving store staff time to notice the alarm and approach the customer. In many stores, the alarm serves as a deterrent; real shoplifters are rare because the gate is so visible and audible.

If the Optional People Counter is installed, dual PIR Motion Sensor elements mounted above the gate detect warm bodies crossing the threshold. By analyzing which element detects motion first, the counter distinguishes entries from exits, maintaining separate tallies. These counts are often logged to the point-of-sale system for shrinkage analysis: if entry count minus exit count is large, the store has unreported inventory loss.

Key Subsystems

The Left Antenna Pedestal and Right Antenna Pedestal are the physical and functional core. Each Pedestal Tube is a 2" × 2" aluminum extrusion, 1.2 m tall, serving both as a structural column and as a waveguide-like conduit for antenna cabling. Inside each pedestal, multi-turn coils (hand-wound or printed on PCB) are tuned to 8.2 MHz using capacitor banks. The left coil is driven by the transmitter amplifier; the right coil feeds the receiver preamplifier. Tuning is critical: if the antenna is slightly misaligned or detune, signal strength drops and detection range shrinks from 1.5 m to 0.5 m.

Each pedestal is mounted on a Pedestal Base Weight (a 600 × 400 mm weighted base) containing 40–60 lbs of lead or steel. This mass provides stability without requiring floor anchors, allowing the gate to be repositioned easily or removed during remodeling. The weight is removable for lighter installation in small shops.

The RF Transceiver & Controller (central electronics) is the decision engine. The RF Oscillator Module (typically a crystal-controlled synthesizer) generates the stable 8.2 MHz carrier. The RF Power Amplifier boosts this signal to 10–20W, which is fed to the left antenna. The Receiver Preamplifier amplifies the right antenna's received signal by 20–30 dB. The Detector Circuit envelope-detects the received RF, producing a baseband video signal.

The Main Controller PCB continuously monitors this video signal. Most systems use a "signal change detection" algorithm: they establish a baseline noise floor during quiet periods, then trigger an alarm if the signal suddenly exceeds the baseline by a threshold (e.g., 6 dB above noise floor) for a minimum duration (e.g., 50 ms). This rejects brief RF glitches while catching real tag passages.

Sensitivity is adjustable via a front-panel potentiometer or menu setting. Increasing sensitivity extends detection range but risks false alarms in RF-noisy environments. Decreasing sensitivity reduces false alarms but may miss fast-moving tags. Retail managers typically calibrate sensitivity once at installation, then avoid further adjustment.

The Alarm & Strobe Unit is simple but attention-grabbing. An 85 dB Speaker produces an unmistakable tone (often a wailing siren or pulsed beep). A Strobe Light Assembly (xenon flash lamp) fires at 1–2 Hz, visible across a large store. The combination of audio and visual stimulus ensures staff notice the alarm, even in a crowded environment. The Strobe Driver Circuit (high-voltage circuit) generates 5–8 kV pulses to trigger the xenon lamp. These high voltages are contained within the alarm enclosure.

The optional Optional People Counter uses two PIR Motion Sensor elements spaced 15–30 cm apart horizontally. A Fresnel Counter Lens Array lens array focuses infrared energy from passing warm bodies onto the sensors. The Counter Logic Board detects which sensor fires first: if the left sensor fires before the right, the person is entering; right before left indicates exiting. Separate counters maintain entry and exit tallies. The Counter Display (optional LED or LCD) shows real-time foot count, or data is logged to the POS system via RS-232 or TCP/IP.

Installation & Tuning

EAS gate installation typically takes 2–4 hours. The two pedestals are positioned 0.8–1.2 m apart (depending on door width), aligned vertically so that the antenna arrays are parallel and face each other. The inter-pedestal cable (shielded multi-conductor) is routed through overhead conduit or concealed behind trim, connecting both pedestals to the central electronics cabinet. The power cord is plugged into a nearby 120VAC outlet.

Initial tuning involves adjusting antenna capacitor banks (via variable capacitors inside each pedestal) to resonate at 8.2 MHz. A technician uses an RF signal analyzer to measure antenna impedance and ensure both antennas are matched. Mismatched antennas result in poor transmit efficiency and weak receive sensitivity. Once tuned, antennas are stable and rarely require re-tuning.

Sensitivity calibration is performed by carrying a test tag through the gate at various distances. The technician adjusts the sensitivity potentiometer on the main PCB until the alarm triggers reliably at 1.5 m distance but does not false-alarm when no tag is present. Environmental RF noise (from nearby wireless routers, cell sites, or industrial equipment) may necessitate sensitivity reduction; most retail locations can achieve <0.1% false alarm rate with proper tuning.

False alarms are a significant operational cost. Staff must investigate each alarm, which interrupts service. Common causes include clothing with metallic threading (rare but possible), jewelry (very rare), or reflective surfaces occasionally creating constructive interference. Modern gates include "alarm logging" that records each trigger with a timestamp, helping identify systematic issues.

Maintenance

Weekly inspection involves visually checking that the pedestals are vertical, antenna covers are secure, and the electronics cabinet has no water intrusion or loose cables. Monthly testing involves manually carrying a test tag through the gate to verify alarm triggering.

Antenna tuning drifts very slightly over years due to capacitor aging and temperature changes. Every 2–3 years, a technician re-measures antenna impedance and adjusts capacitors if needed. The xenon Strobe Light Assembly lamp has a rated life of 50,000–100,000 flashes (years depending on alarm frequency); when strobe output visibly dims, the lamp is replaced.

RF performance is monitored indirectly: if the store reports multiple false alarms or tag misses (customers exiting with active tags), the first diagnostic step is sensitivity adjustment. If problems persist, antenna tuning or transmitter output power measurement is required.

Related Products

EAS gates work in tandem with Security Tag Detacher units at checkout. Detachers remove tags from purchased items, while gates alarm on tags that should have been removed. The system relies on staff discipline: every item must be tagged during stocking, every sale must result in a detachment (verified by the point-of-sale log), and gates must be functioning and staffed.

Some stores use multi-technology gates (RF + electromagnetic) to catch both hard tags and label tags, broadening coverage. High-end systems integrate gate alarms with CCTV: when an alarm triggers, a video camera records the customer and merchandise, and footage is logged for loss prevention investigation.

Accessory tags (hard tags, label tags, ink tags) come in many forms and are supplied by third-party vendors. The gate must be calibrated to the specific tag impedance and resonance of the tags in use; mixing tag types can reduce detection reliability.
