E-Bike Charging Station Product

Overview

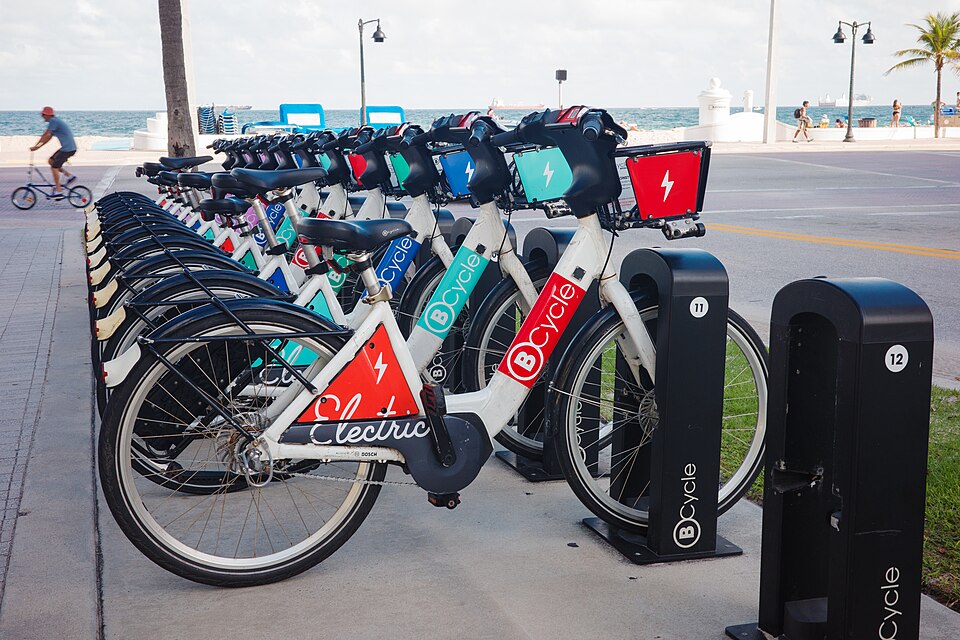

An e-bike charging station is a public or semi-public infrastructure appliance, comparable to an EV charging kiosk but sized for bicycle batteries. The [[ebike-station-enclosure|stainless steel cabinet]] houses 4–10 standardized [[ebike-station-charging-bays|docking bays]], each presenting a mechanical dock and electrical charging contact. Users roll their e-bike into a bay, pay via [[ebike-station-payment-system|NFC card, QR code, or mobile wallet]], and a [[ebike-station-power-distribution|48 V DC power supply]] charges the battery over 1–3 hours.

The [[ebike-station-cable-management|charging cables]] are retractable and multi-connector, accommodating USB-C, XT60, Anderson, and barrel-jack battery ports. The entire station is [[ebike-station-monitoring|IoT-enabled]], reporting occupancy, power usage, and faults to a cloud dashboard. An optional [[ebike-station-solar-option|solar array and battery bank]] allows off-grid or grid-independent operation in remote locations.

Stations are deployed in bike-share networks, apartment complexes, corporate campuses, transit hubs, and public parks to enable convenient long-distance e-bike commuting.

How it works

A rider with a depleted e-bike battery approaches a [[ebike-station-charging-station|charging station]] and selects an available dock bay (indicated by a green [[ebike-station-status-led|status LED]]). They roll their e-bike into the [[ebike-station-wheel-guide|wheel guides]], which position the bike's frame and battery correctly.

The user scans their payment card or phone at the [[ebike-station-card-reader|NFC card reader]] or enters a code shown on their phone's app. The [[ebike-station-software-controller|station's IoT controller]] communicates with a payment processor, verifying the transaction and deducting the charging fee (typically 0.50–2.00 USD per session, or a subscription).

Once payment is confirmed, a [[ebike-station-dock-lock|solenoid lock]] gently secures the bike frame, and the [[ebike-station-contact-pin|charging contact pin]] (or pogo probe array) mates with the bike's battery port connector. The [[ebike-station-bay-controller|bay controller]] energizes the circuit, and the [[ebike-station-inverter-charger|DC power supply]] begins delivering 20–30 A at 48 V (960–1440 W per bay).

The [[ebike-station-display-kiosk|touchscreen display]] shows the charging progress: estimated time remaining, current power draw, session cost, and safety alerts. Most modern e-bikes charge in 1–2 hours for a 50–80% top-up.

As the battery charges, the [[ebike-station-bay-controller|controller]] monitors current and voltage, adjusting the power delivery profile according to the battery's charging curve (constant current phase, constant voltage phase, and trickle charge termination). [[ebike-station-temperature-probe|Temperature sensors]] inside the cabinet trigger forced ventilation (fan) if internal conditions exceed 40°C, and [[ebike-station-circuit-breaker|RCD (residual-current device) protection]] cuts power in milliseconds if a ground fault is detected.

When the battery is fully charged (or the user unplugs), the dock lock automatically disengages, and the [[ebike-station-status-led|status LED]] changes to green (complete). The user retrieves their bike, and the dock is ready for the next user.

The [[ebike-station-monitoring|occupancy sensors]] immediately report the bay as empty to the cloud system, updating the station's availability in the bike-share app. The [[ebike-station-power-meter|power meter]] logs energy consumed (in kWh) for billing and operational analytics.

Power and electrical design

The station is fed by a single 32 A, 230/400 V three-phase grid connection (typical commercial utility service). A [[ebike-station-circuit-breaker|main breaker and RCD]] protect against overload and ground faults.

The [[ebike-station-inverter-charger|multi-output DC power supply]] is a sophisticated device: it rectifies the incoming AC to high-voltage DC, then uses switched-mode power electronics to generate isolated 48 V rails (one per bay or one per pair of bays). This isolation prevents cross-talk between bays and simplifies ground-fault detection.

Each bay can draw up to 30 A @ 48 V = 1440 W. A 6-bay station draws up to 8640 W continuously, well within a 32 A three-phase service (which supplies ~14 kW at unity power factor). The [[ebike-station-bay-controller|PLC]] enforces load balancing: if grid demand rises, it can throttle certain bays to avoid brownouts.

A [[power-supply|backup UPS (uninterruptible power supply)]] keeps the payment system, sensors, and controller alive during brief grid outages, allowing the station to function autonomously for 10–30 minutes.

Cables and connectors

Modern e-bikes use diverse battery connectors: USB-C (newer models), XT60 (sport/cargo bikes), Anderson SB50 (industrial), and proprietary barrel jacks. Rather than stocking separate stations for each connector type, a [[ebike-station-connector-adapter|multi-standard adapter]] on the station end accepts all common types. Users carry a simple barrel-jack or connector "stub" matching their battery port, plugging it into the station's cable to charge.

Alternatively, some operators deploy station variants with a single standardized connector (e.g., all bikes in a network share a USB-C port), simplifying logistics at the cost of network lock-in.

The [[ebike-station-charging-cable|charging cables]] are heavy-gauge (AWG 8–10, rated for 30+ A continuous), with UV-resistant jackets. [[ebike-station-cable-reel|Spring-loaded motorized reels]] automatically retract the cable after each session, preventing tripping hazards and keeping cables out of weather.

Occupancy and monitoring

Each [[ebike-station-dock-frame|dock bay]] is equipped with a [[ebike-station-occupancy-sensor|proximity or weight sensor]] that detects the presence of a bike. The [[ebike-station-software-controller|IoT gateway]] reports occupancy in real time to the cloud backend, which pushes updates to the operator's management portal and the user's bike-share app.

Users can check app to find nearby stations with available bays, reducing arrival-at-empty-station frustration. Operators can see utilization patterns—peak times, heavily-used locations—and provision additional stations or rebalance bikes accordingly.

The [[ebike-station-power-meter|kWh meter]] logs total energy sold and per-bay breakdowns, enabling:

• Revenue tracking and reconciliation with payment processor records
• Anomaly detection (a bay consuming far more than average may indicate a faulty charger)
• Carbon accounting (renewables vs. grid energy)

Solar and battery variants

Stationary stations in sunny climates or remote areas can be upgraded with [[ebike-station-pv-panel|1–3 kW photovoltaic arrays]] and [[ebike-station-battery-bank|5–10 kWh battery storage]]. A [[ebike-station-solar-controller|MPPT charge controller]] optimizes solar energy capture, feeding excess power into the battery bank during off-peak hours.

A 10 kWh battery bank can sustain 5–6 full charging sessions (2 kWh per session) on sunny days. On cloudy days or nights, the battery depletes, and the station falls back to grid power. On long grid outages, the station can operate autonomously for 3–5 days in sunny conditions (assuming light usage).

This variant costs 50–100% more than a grid-only station but enables deployment in locations without reliable grid infrastructure (suburban bike parks, remote campuses, island communities).

Operational considerations

Stations require regular maintenance:

• Cable inspection: UV exposure and repeated flexing degrade insulation; cables should be replaced every 2–3 years.
• Connector cleaning: Oxidation on charging pins reduces contact quality; contacts should be cleaned monthly.
• Software updates: Cloud-connected controllers receive regular security and feature updates over-the-air.
• Fan filters: Ventilation louvers accumulate dust; filters should be cleaned quarterly.

Payment processing integration is critical: stations must sync with a central backend to prevent chargebacks and fraud. Operators typically use a turnkey SaaS platform (Bluespace, Voltio, etc.) that handles payment processing, occupancy reporting, and user authentication.

Theft protection varies: some operators use [[ebike-station-dock-lock|motorized frame locks]], others rely on stationary bikes being tethered to nearby racks or U-locked to the dock rail. Vandalism (slashed cables, pried connectors) is an ongoing concern; durable materials (stainless steel, reinforced polycarbonate) and secure mounting are essential.
