Overview

Electrofishing is a scientific and commercial fish capture method using brief electrical pulses to stun fish temporarily, making them easy to net and count. A portable electrofishing system consists of a battery-powered [[electrofishing-backpack-pulse-generator|pulse generator]] worn on the back, a hand-held [[electrofishing-backpack-anode-pole|anode pole]] dunked in the water, and a [[electrofishing-backpack-cathode-tail|cathode tail]] trailing behind. The operator walks through shallow water, generating an electrical field that overwhelms fish muscles, causing tetanus (involuntary contraction) that immobilizes them. Once stunned, fish drift passively downstream and are netted for counting, measurement, and release.

Pulse Generation and Electrical Field

The [[electrofishing-backpack-pulse-generator|pulse generator]] converts 12V battery power into high-voltage, low-current pulses via a step-up transformer. The [[electrofishing-backpack-transformer|transformer]] steps the voltage up 50:1 (12V to 600V), then a [[electrofishing-backpack-igbt-stack|high-voltage switching transistor]] in the secondary circuit further boosts the voltage using energy stored in a [[electrofishing-backpack-capacitor-bank|capacitor bank]]. Peak output is 1000–2000V, adjustable via a control potentiometer.

The [[electrofishing-backpack-oscillator|pulse oscillator]] generates a square wave at 20–100 Hz, with each pulse lasting 0.5–10 milliseconds. A 50 Hz pulse at 1500V peak and 200 mA peak current delivers approximately 150 joules per second of energy into the water (assuming 50% efficiency).

The electrical circuit forms a closed loop: current exits the [[electrofishing-backpack-anode-pole|anode pole]] in the water, disperses through the water and fish body, converges on the [[electrofishing-backpack-cathode-tail|cathode tail]], and returns to the generator. The voltage gradient is highest near the anode (where the pole is), and fish swimming within a 15–25 foot radius experience increasing voltage and current as they approach the pole.

The fish body, being a conductor (muscles are 70% water), allows current to flow from anode to cathode through the fish. The current's magnitude is determined by the voltage and the fish's tissue resistance (roughly 500–2000 Ω depending on species and size). At 1500V and 1000 Ω resistance, current is 1.5 amps—far higher than the ~5 mA that causes muscle tetany, so the fish is immobilized instantly.

Fish Response and Recovery

Fish exposed to electrofishing pulses exhibit a biphasic response:

1. Galvanotaxis (0–100 ms): The fish is attracted to the anode pole, swimming toward the source of the electrical field. This is a reflex—directional sensitivity embedded in the fish's nervous system.

2. Tetanus (100–500 ms): Muscle contraction overwhelms the fish, and it becomes rigid and unable to swim. Respiration stops, and the fish loses equilibrium.

3. Recovery (0.5–10 seconds after current ceases): The fish's nervous system recovers, muscle contraction ceases, and the fish resumes normal behavior and breathing. If not netted during this window, the fish swims away, unharmed.

Species respond differently. Salmonids (trout, salmon) are highly susceptible and galvanotax strongly; cyprinids (carp, minnows) are moderately susceptible; and some armored fish (catfish) are less susceptible due to thick skin. Modern electrofishing systems employ "immobilization" settings optimized for the target species, minimizing recovery time and stress.

Safety Interlocks

Because the backpack generates lethal voltages (>5 kV with some designs), safety is paramount. The [[electrofishing-backpack-safety-switches|safety system]] includes multiple interlocks:

1. Dead-man switch: A pressure switch in the pole handle requires continuous grip. If the operator releases the pole, the circuit de-energizes within 100 ms, preventing accidental shocking.

2. Water sensor: A conductivity or proximity sensor permits shocking only when the anode pole is submerged. Shocking in air is impossible.

3. Ground-fault relay: A current-imbalance monitor detects unexpected leakage to ground, tripping within 100 ms and alerting the operator.

4. Emergency stop button: A large red button on the backpack frame allows any team member to instantly kill the circuit.

These interlocks prevent electrocution of the operator even if a live electrode is touched accidentally.

Anode Pole and Cathode Tail

The [[electrofishing-backpack-anode-pole|anode pole]] is a 8–10 foot fiberglass or carbon fiber wand with a [[electrofishing-backpack-electrode-ring|stainless steel electrode ring]] at its tip. The hollow interior contains the high-voltage conductor wiring from the generator. The [[electrofishing-backpack-pole-handle|handle]] is insulated with 1 MΩ resistance silicone or cork, protecting the operator even if the pole is held with wet hands.

The [[electrofishing-backpack-cathode-tail|cathode tail]] is a 50-foot shielded cable trailing behind the operator, ending in a [[electrofishing-backpack-tail-electrode|cathode electrode]] (rod or net) positioned 10–20 feet behind the anode. The distance matters: too close, and the field is too narrow; too far, and the potential gradient becomes uneven. A [[electrofishing-backpack-tail-float|buoyancy float]] keeps the tail cable visible at the surface, preventing accidental contact.

Control and Monitoring

The [[electrofishing-backpack-control-panel|control panel]] allows real-time adjustment:

• Frequency dial: Adjusts pulse repetition rate from 20 to 100 Hz. Lower frequencies (20–30 Hz) are gentler and cause less muscle damage; higher frequencies (80–100 Hz) immobilize faster but risk injury.

• Pulse duration knob: Adjusts each pulse from 0.5 to 10 ms. Longer pulses deliver more energy but risk electrocution of captured fish; shorter pulses are safer.

• Voltage display: Digital readout shows real-time output voltage (0–2000V), allowing the operator to dial in the minimum voltage needed for the target species.

• Battery indicator: LED array shows remaining charge from 100% (green) to critically low (<20%, red).

The operator adjusts settings based on field conditions: in high-conductivity water (saltwater, murky water), higher voltage is needed; in low-conductivity water (clear freshwater), lower voltage suffices. A skilled electrofisher adjusts voltage to just above the immobilization threshold, minimizing fish stress and injury.

Practical Field Use

A typical electrofishing survey proceeds as follows:

1. Setup: The operator dons the backpack, extending the cathode tail 20 feet downstream and positioning the cathode electrode at the water's edge.

2. Entry: The operator walks into shallow water (<3 feet deep) with the anode pole.

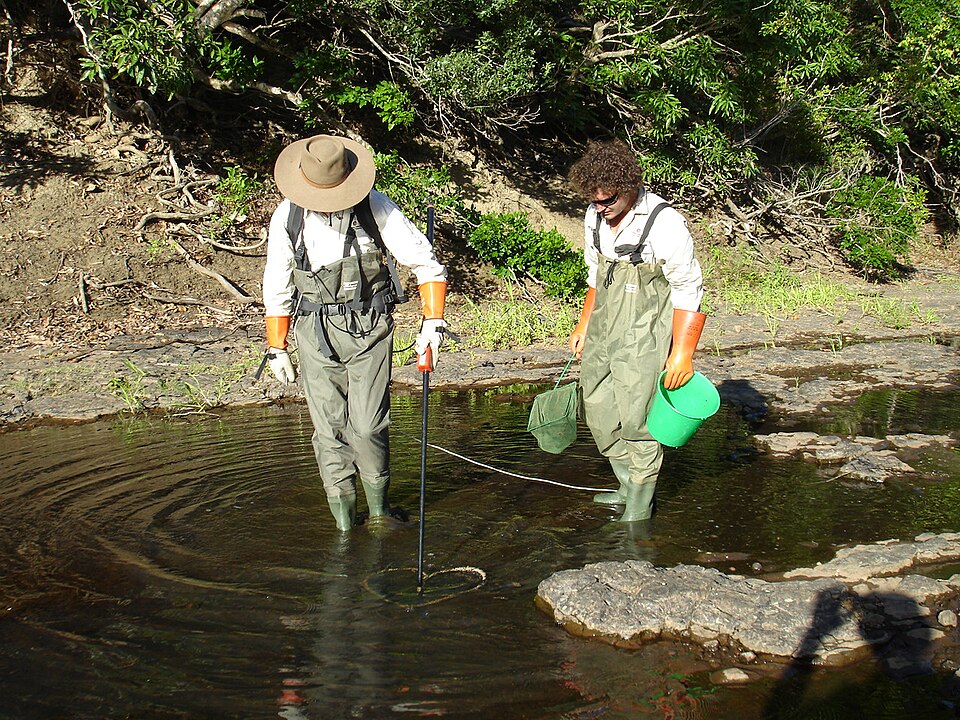

3. Shocking pass: The operator activates the dead-man switch and walks slowly upstream, sweeping the anode pole side-to-side at waist depth. Stunned fish drift downstream and are netted by a second team member.

4. Collection: Netted fish are placed in a recovery bucket with fresh water. They regain consciousness within 10–30 seconds and can be measured, identified, and released.

5. Repeat: The team makes multiple passes upstream, exhaustively sampling the reach.

A one-hour electrofishing survey of a 500-meter stream reach typically captures 50–200 fish, depending on habitat and species. The data informs conservation decisions (e.g., whether a stream can support reintroduction) and population monitoring.

Environmental Considerations

Electrofishing is extensively used in fisheries science but is controversial due to injury risk. Modern practices minimize harm:

• Use immobilization settings optimized for the target species.
• Keep pulse duration short (<5 ms) to reduce energy deposition.
• Use the minimum voltage necessary.
• Allow adequate recovery time before handling.
• Avoid electrofishing in water below 50°F, where fish recovery is slow.

When used correctly, electrofishing causes <2% injury rate and has no long-term population effects. When used carelessly, it can kill fish and degrade ecosystems.

Power and Efficiency

At 50 Hz, 1500V peak, 200 mA peak, each pulse delivers approximately 0.15 joules. Over one hour (50 pulses/second × 3600 seconds), total energy is 27 kWh. However, the battery only stores 12V × 5 Ah × 3.7 (average voltage) = 222 Wh ≈ 0.2 kWh. The discrepancy is due to efficiency: the transformer and switching circuits convert battery energy at roughly 80–90% efficiency, so the actual pulse energy is reduced. A 4–6 hour runtime at continuous shocking reflects a duty cycle of roughly 20–30% (not continuous), with intermittent shocking as fish are captured and netted.

Modern systems incorporate battery management and soft-start circuits to extend runtime and prevent thermal damage during long surveys.
