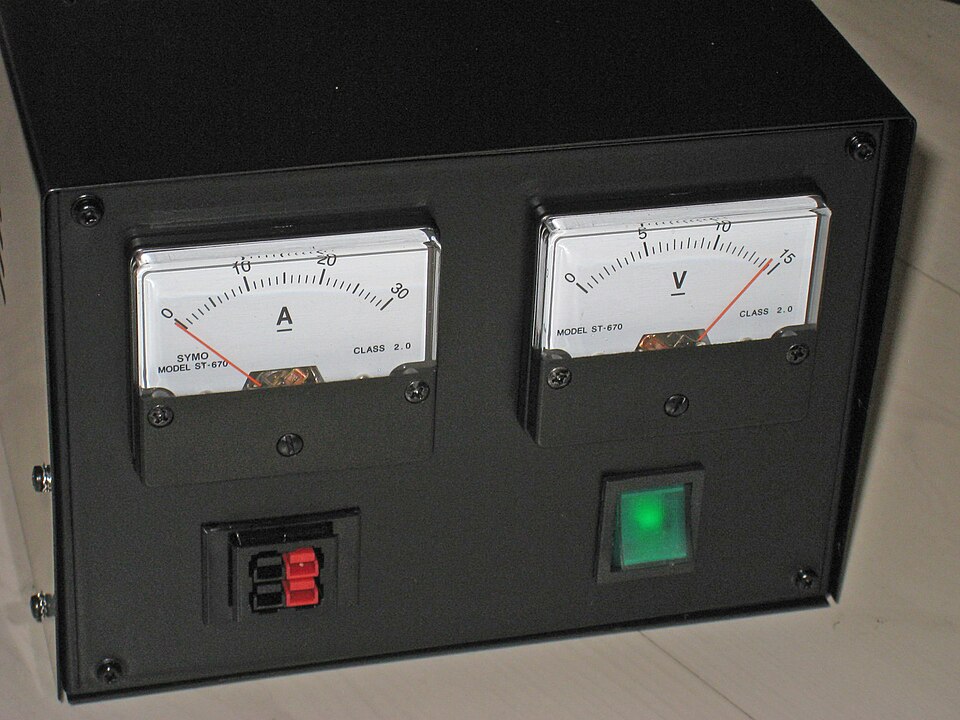

Electronic DC Load Product

Overview

An electronic load is a laboratory instrument that acts as a programmable current sink, absorbing electrical power from a device under test (DUT) much like a variable resistor, but with precise digital control and multiple operating modes. Unlike passive resistor loads that dissipate heat inefficiently and offer limited dynamic range, electronic loads use power MOSFETs controlled by a real-time microprocessor to regulate the load current (or power, or resistance) to a user-defined setpoint across a wide range of input voltages and load conditions.

Electronic loads are essential tools for power supply testing, battery characterization, solar panel evaluation, and any application requiring dynamic load simulation. A power supply engineer, for example, uses an electronic load to verify that a 48V, 10A supply can regulate output voltage within ±5% from no-load (0A) to full-load (10A) while transient-stepping the load to confirm the supply's transient response time and overshoot meet specifications.

The instrument's [[electronic-load-mosfet-bank|power stage]] dissipates up to 1.8 kW continuously and 3.6 kW in short bursts, with sophisticated [[electronic-load-thermal|thermal management]] to maintain safe junction temperatures during extended testing.

Operating Modes and Control Architecture

The electronic load supports three fundamental operating modes, selectable via the [[electronic-load-control-mode|front panel interface]]:

Constant-Current Mode (CC): The [[electronic-load-software|microprocessor]] maintains load current at a user-selected setpoint (e.g., 50A) regardless of the input voltage. This mode simulates the behavior of a linear resistor load and is used to characterize power supply output impedance and voltage regulation. As input voltage varies, the load current remains constant, and the [[electronic-load-mosfet-bank|MOSFET bank]] adjusts its on-resistance to absorb the changing power.

Constant-Power Mode (CP): The control loop multiplies the sensed voltage and current to compute instantaneous power P = V × I and adjusts the load current setpoint to maintain constant power. This mode simulates a resistive load of fixed magnitude (R = V² / P) and is commonly used for battery pack testing and photovoltaic (PV) panel characterization, where power transfer efficiency is the key metric.

Constant-Resistance Mode (CR): The microprocessor computes load resistance as R = V / I and adjusts the current demand to maintain a constant setpoint resistance. This mode is useful for testing voltage regulators under conditions where the load impedance is specified by the application (e.g., a 50 Ω RF terminator).

Feedback Control and Safety

The [[electronic-load-sense-circuit|sense circuit]] continuously monitors the load voltage (via a precision [[electronic-load-voltage-divider|voltage divider]]) and current (via a [[electronic-load-current-shunt|1 mΩ precision shunt]]) at a 10 kHz sampling rate. Both signals feed [[electronic-load-adc-current|16-bit analog-to-digital converters]] for high-resolution digitization.

The [[electronic-load-software|control microprocessor]] runs a proportional-integral (PI) feedback loop at 5 kHz, comparing the sensed current (or power, or resistance) to the user setpoint and adjusting the MOSFET [[electronic-load-gate-driver|gate drive duty cycle]] to minimize error. The PI gains are tuned to achieve <100 ms transient response (time to reach 90% of final value) when the setpoint changes suddenly—a feature called "transient step" testing, critical for validating power supply designs.

Safety interlocks prevent accidental device damage:

• Over-current protection: If current exceeds the programmed limit (e.g., 150A maximum), the microprocessor immediately reduces gate drive to limit further increase.
• Thermal shutdown: The [[electronic-load-thermal|thermistor-based temperature sensor]] monitors heatsink temperature. At 150°C, the load is automatically disabled to prevent MOSFET junction damage.
• Anti-kickback: Anti-parallel [[electronic-load-freewheeling-diode|Schottky diodes]] on each MOSFET protect against voltage spikes from inductive loads when the load is switched off.
• Input voltage limiting: The load automatically reduces current if input voltage exceeds 600V (the MOSFET breakdown rating).

Thermal Design and Power Dissipation

Continuous dissipation of 1.8 kW (equivalent to a 100W light bulb running at 18× normal brightness) requires aggressive cooling. The [[electronic-load-mosfet-bank|eight parallel MOSFETs]] are mounted directly on a [[electronic-load-heatsink|large aluminum extrusion heatsink]] with <0.25°C/W thermal resistance from junction to ambient air. This means each watt of dissipation raises the heatsink temperature by only 0.25°C above room temperature.

The [[electronic-load-thermal|dual 100 CFM brushless cooling fans]] provide forced-air cooling across the heatsink fins. A [[electronic-load-thermostat|thermostatic controller]] varies fan speed from 0–100% based on the heatsink temperature, minimizing acoustic noise during light-load operation while ensuring full cooling capacity during maximum power dissipation.

Transient operation (short pulses of high power) can briefly dissipate 3.6 kW. The thermal time constant of the heatsink (approximately 10–20 seconds) allows peak power exceeding the continuous rating for brief intervals, such as during pulse-load testing of power supplies.

Test Applications and Measurements

Power Supply Verification: Engineers use electronic loads to validate the line and load regulation of switching power supplies. A 48V/10A supply is tested by:

1. Setting the load to constant-current mode at 5A
2. Varying the input AC voltage from 85V to 260V and noting the DC output voltage variation (should be <2%)
3. Increasing load current from 0A to 10A in steps and recording voltage sag (typically 0.5–2V)
4. Performing transient step changes (5A → 10A in <1 ms) and observing overshoot and settling time

Battery Pack Characterization: A lithium-ion battery pack is discharged at constant current (e.g., 20A), constant power (e.g., 500W), or a pulsed load pattern while voltage and energy are logged. The battery's discharge curve (voltage vs. capacity) and internal resistance can be extracted from the data.

Photovoltaic Panel Testing: A solar panel's efficiency is maximum at a specific current and voltage (the "maximum power point" or MPP). An electronic load in constant-power mode automatically tracks the MPP as irradiance and temperature change, enabling real-time efficiency measurement without manual adjustments.

Limitations and Practical Considerations

Electronic loads require adequate power dissipation: a 150A load at 600V dissipates 90 kW, requiring a robust facility with high-current infrastructure (large gauge cables, busway, or liquid-cooled heat exchangers). Most laboratory electronic loads are rated for continuous dissipation of 1–3 kW, limiting practical testing to lower power levels or short pulses.

The [[electronic-load-sense-circuit|sense circuit]] has a finite bandwidth and dynamic range. Rapid current transients (dI/dt > 100 A/µs) can exceed the feedback control loop's ability to respond, resulting in transient overshoot or undershoot. Designers must anticipate this by enabling [[electronic-load-gate-driver|programmable slew-rate limiting]] in the gate drive circuit, trading response speed for stability.

For inductive loads (such as a motor or inductor being tested), the [[electronic-load-freewheeling-diode|anti-parallel Schottky diodes]] clamp voltage spikes, but very fast switching can still generate EMI. Shielded cables and ferrite clamps on leads reduce conducted and radiated noise.
