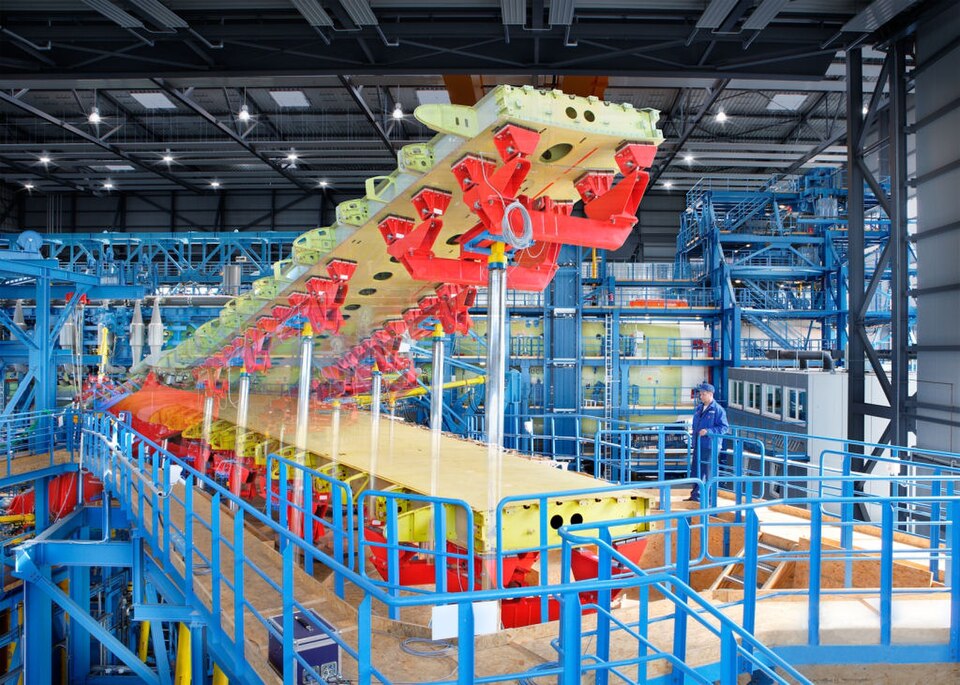

A fatigue testing machine applies controlled cyclic (sinusoidal or custom-waveform) loads to material specimens, generating stress-life (S-N) curves that predict fatigue failure under in-service loading. The machine consists of a servo-hydraulic or electromechanical actuator (double-ended hydraulic cylinder or electric ballscrew) applying ±100 kN force at 1–50 Hz, a calibrated load cell, self-aligning specimen grips, a real-time servo controller orchestrating cyclic waveforms and cycle counting, and an optional environmental chamber for elevated-temperature testing. Test data (load vs. cycle, peak/valley monitoring, failure detection) are logged continuously to quantify the S-N relationship: stress amplitude versus cycles-to-failure for a material or component.

Fatigue analysis is critical for rotating machinery, automotive suspension, aircraft structures, pressure vessels, and medical implants—any application subject to cyclic loading where crack initiation and propagation dominate over static yield failure.

How it works

The Servo-Hydraulic Actuator comprises a precision Cylinder Body (double-ended, 50–80 mm bore) with an integral Piston, both designed for cyclic duty. The piston is driven by a proportional Servo Proportional Valve (4/3 directional control valve) receiving low-level commands (±10 V) from the Servo Controller real-time processor.

The controller synthesizes a sinusoidal or programmable cyclic waveform (load setpoint profile): e.g., sinusoidal 0 to 100 MPa at 10 Hz mean stress. An LVDT Position Feedback transducer (LVDT or pressure sensor) mounted on the actuator feeds back actual load/position at 1 kHz sampling rate. The servo loop continuously adjusts proportional valve spool position to track the command waveform with <2% error.

The specimen is gripped in Specimen Grips (pneumatically or hydraulically clamped with serrated surfaces preventing slip). Specimen self-alignment is critical: any bending moment (from misalignment) superimposes a bending stress component, skewing the S-N result. Load is transmitted to the specimen from the actuator rod through a Load Cell (0.5% accuracy bonded strain-gauge type), which outputs a ±10 V signal proportional to load.

A Cycle Counter hardware module counts zero-crossings in the load signal, tallying cycles with zero error accumulation (critical for 10⁷+ cycle tests). At user-defined intervals (every 10⁴ cycles, e.g.), the controller logs peak load, minimum load, mean stress, and cycle count to an SD card for post-test analysis.

For elevated-temperature fatigue, the Environmental Chamber encloses the specimen and heated grips, maintaining 20–400°C per a Temperature Controller PID thermostat. Temperature drift during multi-day tests is <2°C, ensuring material strength variation remains negligible.

Specimen failure is detected when the load cell signal drops below a threshold (specimen broke, grip slipped) or when stiffness change is detected via waveform distortion. Modern controllers trigger a photo capture or high-speed video to document the failure mode.

S-N curve generation and material properties

A complete S-N curve requires testing specimens at multiple stress amplitudes. For example, testing steel at 5 stress levels (300, 400, 500, 600, 700 MPa) with 3 replicates per level generates 15 S-N data points. The endurance limit (stress amplitude below which fatigue failure does not occur, typically defined at 10⁷ cycles) is determined by progressively lower stress levels until specimens do not fail within a set cycle limit.

The Miner–Palmgren linear-damage hypothesis uses S-N data to predict failures under variable-amplitude loading: a load spectrum from field data or accelerated test profiles is normalized by the S-N curve, summing damage fractions (cycles at stress i ÷ cycles-to-failure at stress i). When the sum reaches 1.0, fatigue failure is predicted.

Test procedure and failure analysis

The operator prepares the specimen (polished surface, gauge-length marks, thermocouple attachment for thermal testing), mounts it in the grips, and enters the test profile (mean load, amplitude, frequency, temperature, cycle limit). The machine automatically executes the test, logging data every 10⁴ cycles.

Post-failure, the operator removes the specimen and examines the fracture surface under a scanning electron microscope (SEM) to characterize crack initiation site (notch, surface defect, inclusion), propagation striae (beach marks), and final rupture zone. Fractography correlates the failure mode to stress concentration effects and material microstructure (grain size, precipitate size, dislocation density).

Strain-life and low-cycle fatigue

At low cycle counts (<1000 cycles), strain-amplitude becomes significant relative to stress-amplitude. The Coffin–Manson strain-life relationship, Δε = C(N)^b, predicts fatigue life from plastic strain amplitude. Thermal fatigue (cyclic temperature change causing differential thermal expansion) is evaluated via strain-life testing with controlled temperature cycling and synchronous mechanical strain measurement using an extensometer.

Standards and automation

ASTM E466 (constant-amplitude fatigue testing) and E606 (strain-controlled fatigue) define specimen geometry, alignment, and calibration procedures. Most labs integrate their fatigue systems with a test-data management system (LIMS) that automatically tabulates S-N results, fits Weibull distributions to account for scatter, and generates mean-minus-2-sigma design curves (knockdown factors) for conservative fatigue life predictions.

Real-time environmental monitoring (specimen temperature, humidity, load-cell drift) ensures data traceability. High-throughput labs operate 10–20 machines in parallel, run by a single technician via centralized LIMS scheduling.
