Fence Intrusion Detection Product

Overview

Fence intrusion detection systems monitor perimeter fencing in real-time for cutting, climbing, or vibration-based attack methods. Unlike passive cameras, which require human observation, vibration-sensor systems actively detect every fence disturbance with pinpoint precision and instant alarm generation.

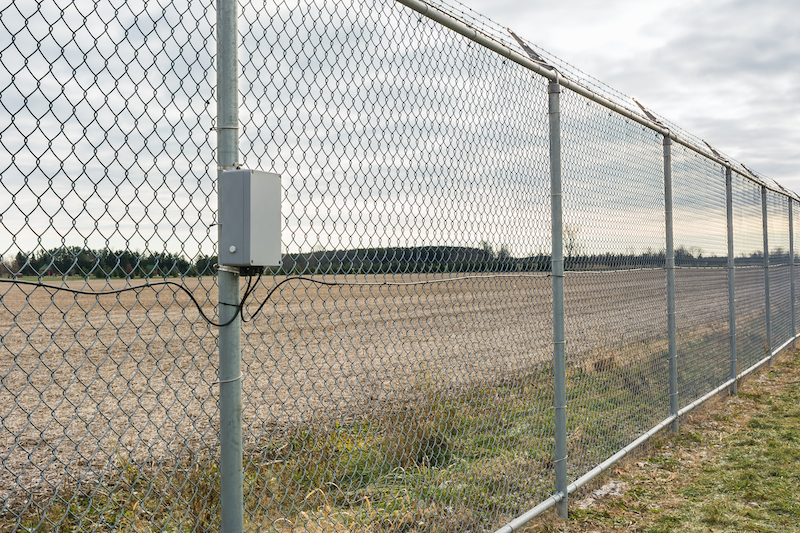

The modern distributed cable-based system embeds accelerometers throughout a continuous armored cable running the full perimeter fence. Any physical contact with the fence—cutting through chain-link, climbing the mesh, using bolt cutters on posts—induces characteristic vibrations that the sensor array detects and classifies in real-time. The system then alerts security personnel with zone-specific location data, often triggering automatic CCTV camera pan-tilt-zoom to the alarm site.

Typical deployments include:

• Military bases and perimeter fencing
• Prison compound security
• Border patrol outposts
• Critical infrastructure facilities (power plants, water treatment)
• Airports and seaport security perimeters

A system covering 2 km of fence typically costs $40,000–80,000 installed, with annual maintenance ~$5,000. Given the cost of a single successful breach (loss of classified material, escaped prisoners, or infrastructure sabotage reaching six or seven figures), the investment is economically justified.

Detection Principles

Vibration Signatures

Different intrusion methods produce distinctive vibration patterns:

1. Fence cutting (wire cutters on chain-link):

   • Frequency peak: 500–1500 Hz
   • Duration: 0.5–2 seconds per cut
   • Amplitude: 2–5 g RMS acceleration
   • Signature: Rapid damped oscillation, sharp onset, quick decay

2. Climbing (human scaling chain-link fence):

   • Frequency peak: 2–8 Hz (low-frequency body weight shifting)
   • Duration: 10–30 seconds sustained
   • Amplitude: 0.5–2 g RMS
   • Signature: Slow oscillation, multiple peaks as climber moves upward, broad frequency spectrum

3. Bolt cutting (hydraulic cutters on posts or chain):

   • Frequency peak: 100–500 Hz
   • Duration: 1–5 seconds per cut
   • Amplitude: 5–10 g RMS
   • Signature: Intense, irregular oscillation; recoil spike after cut completion

4. Sledgehammer impact (aggressive barrier breach):

   • Frequency peak: 20–50 Hz (primary), secondary peaks to 500 Hz
   • Duration: <0.5 seconds impact, long decay (2–5 seconds)
   • Amplitude: 15–30 g peak
   • Signature: Single sharp impact followed by ringing oscillation

The [[fence-intrusion-detection-zone-processor|zone processor]] runs a real-time threat classification algorithm that extracts these features from raw acceleration data. Machine learning models (trained on thousands of field recordings) distinguish intentional intrusion attempts from environmental noise (wind, vehicles passing nearby, rain on fence).

Noise Rejection

False alarms plague early-generation vibration sensor systems. Environmental disturbances that trigger false detections:

• Wind: Sustained frequencies 0.5–5 Hz, low amplitude (<0.2 g), broadband spectrum. Wind rarely exceeds 0.5 g sustained.
• Traffic (passing vehicles): Low-frequency rumble (1–20 Hz), very low amplitude (<0.1 g at fence).
• Rain/hail: Stochastic noise, white-spectrum, extremely low amplitude (<0.05 g).
• Animals (large wildlife): Similar to climbing signature but typically <0.3 g amplitude.

Modern systems filter out these benign events through:

• Bandpass filtering: Isolating 10 Hz–10 kHz range where intentional cutting/climbing occurs.
• Threshold gating: Ignoring any acceleration <0.2 g (typical wind/rain threshold).
• Temporal pattern recognition: Cutting produces a series of rapid impulses over <5 seconds; wind produces sustained slow variations.
• Amplitude thresholding: True intrusion attempts typically exceed 1 g RMS over >100 ms; false alarms remain <0.5 g.

Well-tuned systems achieve <1% false positive rate per month—acceptable for security operations where genuine alarms occur 2–4 times monthly in high-threat environments.

System Architecture

Sensor Cable Design

The [[fence-intrusion-detection-sensor-cable-assembly|sensor cable]] is the core element. Specifications:

• Armor: Steel-braided outer sheath, 1 mm thickness, protects inner core from abrasion and UV.
• Accelerometers: MEMS sensors, ±16 g range, 3-axis (X, Y, Z), embedded at regular intervals (typically every 6–7 meters).
• Shielding: Foil + braid EMI shielding, rejects 40–1000 MHz radio interference (critical in cellular-dense environments).
• Connector: Stainless steel XLR-style connectors at both perimeter ends, rated IP67 for field serviceability.

The cable is mounted to the fence using plastic clips (electrically isolated from the mesh or posts) at 1 m intervals. Isolation prevents the cable from forming a short circuit with the metal fence structure, which would couple ground currents and create noise.

Zone Processor & Detection

The [[fence-intrusion-detection-zone-processor|zone processor]] module samples all accelerometer channels at 10 kHz and performs real-time signal processing:

1. Anti-alias filtering: 5 kHz low-pass filter removes high-frequency noise.
2. Feature extraction: Compute RMS, peak, and spectral centroid over sliding 100 ms windows.
3. Threat classification: Feed features to a decision tree or neural network trained on intrusion signatures.
4. Zone assignment: Locate which section of fence triggered the alarm (triangulation using arrival-time differences between nearby sensors).
5. Alarm relay activation: Fire the appropriate zone relay output (8 relays support up to 8 zones of ~200 m each).

Latency: From initial intrusion contact to relay activation is <2 seconds, fast enough that guards can respond before a motivated intruder completes fence breaching.

Alarm Panel Integration

The [[fence-intrusion-detection-alarm-panel|central alarm panel]] displays:

• Zone LEDs: Eight red indicators, one per zone; lights when intrusion is detected.
• LCD display: Shows exact zone number and timestamp (e.g., "ZONE 3, 14:32:45").
• Audio siren: 120 dB(A) dual-tone siren, audible 500 m away, captures attention immediately.
• Remote notification: 4G modem or Ethernet connection sends SMS and email alerts to security center, enabling 24/7 monitoring even if on-site guards are absent.

Integration with CCTV and access control:

• CCTV PTZ triggering: When Zone 3 alarm fires, the RS-485 gateway sends a command to the CCTV system to pan/tilt a camera to the Zone 3 fence section and start recording.
• Access control lockdown: If intrusion occurs on a specific sector, doors or gates in that area can be automatically locked until security confirms the all-clear.

Installation & Field Setup

Cable Routing

Typical perimeter fence installation requires:

1. Survey the fence: Map all corners and obstructions; measure total perimeter length (e.g., 2 km = 4 spools of 5 km cable, with one loop return).
2. Cable positioning: Route cable along inner fence line (climbing-facing side) or outer fence line (cutting-facing side). Best practice: dual cables (one inner, one outer) for full coverage but doubles cost.
3. Clip spacing: Mount plastic clips every 1 m using stainless steel cable ties; ensure clips do not conduct electricity between cable and fence.
4. Termination: At building entry, terminate both cable ends in connector blocks with LED continuity indicators and strain relief.

Environmental Considerations

• Temperature: Cable jacket rated -30 to +70 °C ensures ductility in cold climates and UV resistance in sun exposure.
• Humidity: Sealed connectors (IP67 rating) prevent water ingress into sensor cores.
• Salt spray (coastal installations): Use stainless steel 316 hardware and anodized aluminum where applicable; avoid galvanized steel fasteners which degrade under salt spray.

Tuning & Calibration

After installation, the system must be calibrated to the specific fence and site:

1. Sensitivity adjustment: Run test cuts and climbs at representative fence sections; record acceleration profiles; adjust threshold to trigger at genuine threats but not environmental noise.
2. Environmental baseline: Record 24-hour continuous data during calm weather, windy conditions, and nearby traffic; analyze for benign vibration patterns that might trigger false alarms.
3. Zone sensitivity mapping: Some zones may have higher ambient noise (near highways); adjust per-zone detection thresholds accordingly.

Operational Workflow

Normal Operation (No Alarm)

• Processor continuously samples accelerometer array at 10 kHz.
• Real-time feature extraction and threat classification run continuously.
• Alarm panel shows "SYSTEM OK" or "NORMAL" with green LED.
• Battery charger maintains backup battery in float-charge state.

Alarm Scenario

1. Intruder contacts fence with bolt cutters (0.5 seconds into cut).
2. Accelerometers detect 5 g RMS vibration in 500–1500 Hz band.
3. Threat classification algorithm recognizes cutting signature within 1 second.
4. Zone processor activates corresponding relay (e.g., Zone 3).
5. Alarm panel lights Zone 3 LED, sounds 120 dB siren.
6. Remote notification sends SMS/email: "INTRUSION ZONE 3, 14:32:45, Location: North Fence, Sector C".
7. CCTV system receives relay signal, pans camera to Zone 3 fence location, begins recording.
8. Security personnel respond with 2–5 minute response time (typical).

False Alarm Management

If environment-induced noise triggers an alarm:

1. Guard observes alarm, checks CCTV video.
2. CCTV shows only wind-blown vegetation or passing vehicle (no human activity).
3. Guard presses "ACKNOWLEDGE" button on alarm panel; siren silences; system returns to normal monitoring.
4. Event is logged with timestamp and guard acknowledgment time; used for system tuning.

Maintenance & Testing

Weekly

• Visual inspection of accessible cable sections for physical damage, corrosion, or loose clips.
• Check LCD display for any fault indicators or system status warnings.

Monthly

• Run simulated intrusion test (authorized personnel makes controlled fence cut or climb) and verify alarm triggers within 2 seconds.
• Inspect backup battery voltage (should be 24 VDC ±0.5 V); if low, investigate charger circuit.
• Verify all zone relay outputs by manually triggering each relay and listening for solenoid click.

Quarterly

• Full system sensitivity calibration using reference accelerometers (if available) or contractor-performed validation.
• Environmental noise baseline recording (24-hour session) to detect any new noise sources (construction, new highway traffic).

Annually

• Replace backup battery (sealed lead-acid typically lasts 3–4 years; preventive replacement recommended annually).
• Full contractor service: sensitivity retesting, cable continuity verification (megohm meter), firmware update.
• Cost: ~$2,000–3,000 per site.

Performance Metrics

Metric	Performance
Time to detection	<2 seconds from intrusion initiation
Detection sensitivity	95%+ for cutting/climbing attempts
False positive rate	<1% per month (tuned system)
System availability	99.9% with redundant power
Backup runtime	8 hours minimum
Zone location precision	Within ±10 m of alarm location
Response latency	<150 ms from sensor to relay activation

Standards & Regulatory

• EN 50131: Alarm systems—Requirements for components and for the planning, installation, commissioning, and maintenance of systems.
• ISO 13849-1: Safety of machinery—Safety-related parts of control systems; typical PLd (Performance Level d) for intrusion detection.
• NFPA 72: National Fire Alarm Code (applies to some security installations in critical infrastructure).

Economics

A complete 2 km fence intrusion detection system (cable, processors, alarm panel, installation, testing) costs $40,000–80,000. Annual maintenance and monitoring runs $5,000–8,000. System lifespan is 10–15 years, yielding total cost of ownership of ~$100,000–150,000. For facilities protecting assets >$1M or critical infrastructure, the per-year cost is minimal insurance against breach risk.
