Field Kitchen Trailer Product

Overview

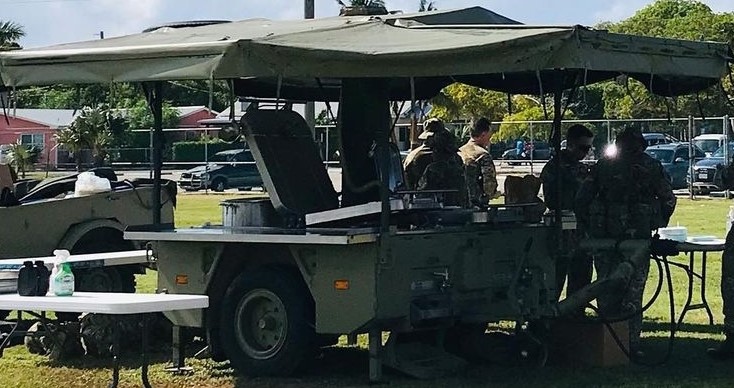

The Field Kitchen Trailer is a mobile cooking facility designed to feed military units in forward areas where permanent mess facilities are unavailable. It combines the functionality of a commercial kitchen—multiple burners, convection oven, griddle, and prep surfaces—into a towed trailer chassis that can be rapidly positioned near troop encampments. The trailer is fully self-contained: it carries its own water supply, fuel system, and electrical generation, allowing it to operate independently of base infrastructure for several days.

The core cooking unit is a four-burner cast-iron range with a convection oven and griddle mounted on a common steel deck. All three heat sources draw fuel from a centralized manifold connected to a 50-liter propane or gasoline tank, allowing the crew to select which burners to ignite based on the meal being prepared. A water system fed by a 300-liter stainless tank provides hot and cold water to three distribution taps; the water can be heated directly on the griddle or by running cooled oven exhaust through an optional heat exchanger. A collapsible aluminum frame and canvas canopy shelter the entire cooking area from weather, critical in extended field operations where rain can halt food service.

The Trailer Chassis is a standard two-axle utility trailer rated for 5 tons total load, allowing it to be towed by a 2.5-ton truck or larger. Pneumatic tires and leaf-spring suspension provide reasonable ride comfort on rough roads and forward area terrain. The hitch is a simple pintle ring fitting, compatible with standard military towing equipment. Once positioned at the site, the crew deploys stabilizing props and levels the cooking surfaces before operations begin.

How it works

Meal preparation begins with site selection: a relatively flat, well-drained area near the unit encampment that is shielded from direct enemy observation. The trailer is backed into position and the pintle hitch is released, allowing the towing vehicle to depart. The crew then deploys the four stabilizing legs (if equipped) and connects the portable 5 kW generator to the breaker panel, powering the water pump and LED work lights.

The fuel tank is checked and topped off; if propane is used, the pressure regulator is inspected for proper outlet pressure (0.3 bar at the manifold). The crew primes the water pump by manually opening the tank drain cock until water flows, then closes it and switches the pump to electric mode. Water begins circulating through the distribution taps and is ready for washing vegetables and hands.

For a typical 100-meal lunch service, the crew lights the four burners on the range, bringing large pots of water to a boil for pasta or rice. The convection oven is set to 180°C and begins preheating for baked items. The griddle is used for frying vegetables or sautéing proteins. Each heat source has its own control knob, allowing the crew to manage temperature independently. The Oven Hood vents combustion products upward and away from the prep area, maintaining air quality under the canopy.

Water is heated in the oven well or on the griddle; hot water is tapped at the distribution manifold and used to fill serving containers or wash utensils. Cold water from the same manifold is used for drinking and food prep. The crew works at the two Work Table surfaces, prepping ingredients and plating meals. Dry goods are stored in the Storage Bin units on the wall shelving, keeping food organized and rodent-proof.

At the end of service, the burners are turned off and the fuel shutoff valve at the tank is closed. The griddle is scraped and wiped down; the oven cools with the door propped open. The crew swabs the trailer floor, ensures water is drained from the distribution lines (to prevent freeze damage in cold climates), and secures the canvas canopy for transport. Once the trailer is hitched and ready, the towing vehicle returns to collect it.

Design rationale

The four-burner range was chosen as the most efficient means of scaling cook output without resorting to large central kitchens. With four independent burners and a griddle, a two-person crew can prepare a variety of dishes simultaneously: one burner boiling starch, one simmering a sauce or soup, one heating a protein, and the griddle browning or frying vegetables. The convection oven adds baking capability, essential for bread, pastries, and gratins that field units expect. The total burner power of 40 kW is typical for a small restaurant kitchen and represents the upper limit that a 50-liter fuel tank can sustain for 8–10 hours of continuous cooking.

The 300-liter water tank is sized to supply three meals (breakfast, lunch, dinner) with normal wash and drinking allowances for a company-sized unit (100–150 personnel). For extended operations, a refill truck can top the tank at the site. The stainless steel construction resists corrosion and prevents rust staining of food or utensils. The hand-pump or electric-pump option allows the trailer to operate even if the generator fails: a crew member can manually pump water, albeit more slowly.

The Pressure Regulator is critical to maintaining consistent burner performance across altitude and ambient temperature changes. Military kitchens operate from sea level to high mountain passes; a two-stage regulator ensures that burner pressure remains steady at 0.3 bar (about 3 kPa) regardless of tank pressure, preventing flame adjustment drift as fuel is consumed.

The collapsible canopy frame avoids the weight penalty of a fixed structure: aluminum posts telescope to one of three heights (1.5 m, 1.8 m, 2.2 m), and aluminum rails connect them in a simple lattice. The heavy canvas cover, treated with water-repellent wax, drapes over the frame and attaches with grommets and rope. This design packs into a compact bundle and takes 10–15 minutes for the crew to erect or strike. The canopy is essential in rain or snow operations; without it, fuel consumption increases as burners work harder to maintain oven temperature, and food service becomes slow and unreliable.

The portable 5 kW generator provides 120/240V split-phase power via four protected circuits. This is sufficient to run the water pump (0.5 kW), LED work lights (0.8 kW), and a small electric heater or microwave if auxiliary equipment is added. The generator is gasoline-fueled for simplicity; it starts easily in cold conditions and runs on standard fuel that is widely supplied in theaters. A 50-liter fuel tank on the generator lasts 8–10 hours at half load, matching the expected cooking window before refuel is needed.

Operational considerations

Field kitchens are often the first targets of enemy harassment, as disruption of food service degrades unit morale rapidly. The trailer's low profile and simple structure make it less conspicuous than permanent buildings, but it should still be positioned with overhead cover or in a settlement area if possible. Crews are trained to camouflage the canvas canopy with natural materials and avoid smoking or naked flames near the fuel tank.

Water quality is a critical concern. The tank is inspected before departure from base and flushed with treated water; in the field, crews are issued water-testing kits and instructed to boil water before use in any meal. The distribution taps are kept covered when not in use, and the manual shut-off valve at the tank is locked to prevent unauthorized draining.

Sanitation protocols require that all food-contact surfaces—prep tables, utensils, and cutting boards—are washed with hot water and soap after each meal. The crew is issued a portable field wash kit and a small amount of approved food-safe detergent. The waste drain on the water tank is screened to prevent food scraps from clogging the hose, and the sump is emptied daily into a designated waste pit away from the encampment.

Maintenance

The Four-Burner Range burners are cleared of debris and soot weekly; any clogged nozzles are cleaned with a fine wire or soaked in fuel to dissolve carbon deposits. The oven thermostat is checked monthly against a calibration standard; if drift exceeds ±10°C, the thermostat assembly is replaced. The oven pilot light is replaced every 6 months, as soot buildup eventually clogs the small orifice.

The water pump is serviced every 100 operating hours: the strainer basket is rinsed, the mechanical seal is inspected for weeping, and the pump outlet is flushed to clear any sediment. The pressure regulator is bench-tested every 6 months to ensure both stages are holding pressure; any regulator that fails to hold 0.3 bar on the outlet is replaced.

Tires and bearings are inspected before each deployment. The Frame Beam and hitch are visually checked for cracks; any cracks in welds or metal are tagged and the trailer is removed from service. Spare axles, wheel bearing kits, and hitch pins are held in the unit motor pool.
