Fletching Jig Product

Overview

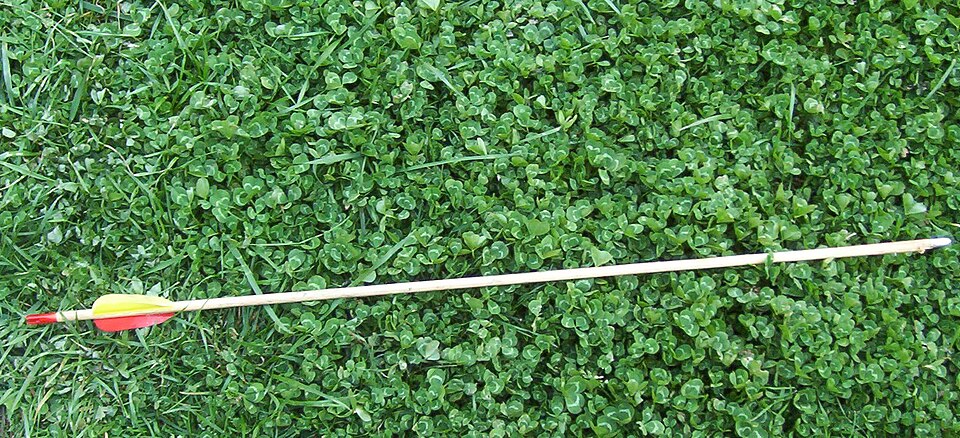

A fletching jig is a precision fixture that positions [[carbon-arrow|arrow vanes]] at exact angular intervals (120 degrees, three-fletch symmetry) and ensures each vane is parallel to the shaft axis during epoxy curing. Without a jig, hand-gluing vanes results in uneven placement, twisted orientation, and asymmetric grouping at distance. A jig-built arrow, by contrast, achieves consistent grouping and flight characteristics.

Modern archery relies on reproducible arrow assembly: batch-manufactured arrows from sporting goods factories are consistently fletched using industrial jigs. Enthusiasts and traditional archers often hand-fletch using simple home jigs, achieving professional-quality results with 1–2 hours per arrow.

Vane Geometry & Alignment

The critical parameters for fletchinging are:

Angular placement:

• Three vanes arranged 120° apart (360° / 3 = 120°) ensure balanced radial distribution and gyroscopic stability.
• If vanes are misaligned (e.g., 110°, 125°, 125°), the arrow rotates about a tilted axis, causing erratic flight.

Axial alignment (parallel to shaft):

• Each vane must be oriented parallel to the shaft's central axis.
• A vane twisted 5–10° relative to shaft introduces deflecting force at release, causing the arrow to arc unpredictably.

Height consistency:

• All three vanes should extend the same vertical distance from the shaft (±2 mm tolerance).
• If one vane is 3 mm higher than others, it generates more drag, causing asymmetric yaw.

Glue bond integrity:

• Vane and shaft must maintain full contact during cure (epoxy cures by chemical reaction, not immediate hardening).
• If the vane lifts or shifts during the 4–8 hour cure, the final bond is weak, and the vane may separate in-flight.

The Vane Clamp & Positioning Arms apply light pressure (2–4 pounds) holding the vane in place without crushing it. Too much pressure deforms plastic vanes; too little allows shifting.

Jig Mechanics

Nock Receiver System

The Nock Receiver Slot is a precision V-shaped or U-shaped slot seating the arrow nock at the rearmost position. The Nock V-Slot is machined to match standard nock dimensions (typically 0.340 inch diameter), and the Forward Stop Pin is an adjustable pin or brace limiting forward arrow movement.

Alignment goal: Arrow sits flush in the slot with its longitudinal axis perpendicular to the jig's plane. Any tilt in the nock causes the shaft to skew, making vane placement non-perpendicular.

Some precision jigs use:

• Bushing receivers: A tapered sleeve centering the shaft OD within ±0.005 inches.
• Dial indicators: Mounted to the jig, checking shaft alignment before curing.

Clamp Arm Design

Each [[fletching-jig-clamp-arms|clamp arm]] is a pivoted member held at a fixed angle relative to the jig base. Arms are positioned so they contact the vane at:

1. Vane root (trailing end, near nock): Prevents rearward slip during cure.
2. Vane mid-span: Ensures parallel orientation to shaft.
3. Vane tip (leading end): Prevents forward warp.

Clamping surfaces are covered with soft material (felt, rubber, or neoprene pads) to prevent marring plastic vanes. The Clamp Spring applies constant light pressure, and the Clamp Screw allows fine adjustment of contact pressure.

Pressure calculation:

• If a clamp arm applies 2 lbs force distributed over a 1.5 inch × 0.5 inch contact area = 2.67 psi contact stress.
• Plastic vanes (typical elastic limit ≈ 3–5 psi) tolerate this pressure without permanent deformation.
• Feathers are more delicate; some jigs reduce pressure to 1 lb for feather work.

Indexing Mechanism

The Rotational Index Wheel is the mechanism rotating the jig 120° between vane placements. Types include:

Detent wheel:

• A graduated disk marked at 0°, 120°, 240° positions.
• A spring-loaded Wheel Pawl engages notches (like a ratchet).
• Rotating the wheel by hand advances to the next position with an audible click.
• Accuracy: ±2–3 degrees typical (acceptable, as slight misalignment is forgiving).

Graduated scale:

• Some precision jigs use a full 360° dial with a reference pointer.
• Operator manually sets the angle; indexing relies on reading consistency.
• Accuracy depends on operator attention; prone to ±5–10 degree error if not carefully adjusted.

Magnetic stops:

• High-end industrial jigs use electromagnetic stops locking the jig at exact angular positions.
• Accuracy: ±0.5 degrees (overkill for archery, but used in production facilities).

After the first vane is cured, the operator:

1. Releases the first vane clamps.
2. Indexes the jig 120° (using the wheel or dial).
3. Re-orients the arrow so the next vane position aligns with the now-active clamp arm.
4. Clamps the second vane, applies glue, and waits 4–8 hours.
5. Repeats for the third vane.

Total production time per arrow: 3 × (3 minutes setup + curing time). If using a multi-jig setup (3 independent jigs, one for each vane position), all three vanes can cure in parallel, reducing total time to ~3 minutes setup + 4–8 hours cure (single throughput batch).

Support & Stability

The Arrow Shaft Support Blocks prevents the arrow shaft from rotating or sagging during cure. V-shaped support blocks at mid-span (half-length from nock) prevent gravity-induced droop. If an arrow sags even 5 mm during cure, the vane's angle relative to shaft axis shifts, degrading accuracy.

Some advanced jigs include:

• Suspended wire guides: Guiding the shaft without direct contact, eliminating pressure marks.
• Vacuum cup holders: Sucking the shaft onto a smooth surface, maintaining perfect alignment.
• Precision bushings: Nylon or ceramic rings centering the shaft OD.

Budget jigs ($30–50) rely on simple V-blocks and spring tension; precision models ($150–300) incorporate bushings and dial indicators.

Adhesive Application

The Adhesive Application Guide system manages epoxy application:

Typical procedure:

1. Glue Shield: Plastic barrier is installed under the vane to catch excess glue.
2. Two-part epoxy (5-minute or 15-minute cure) is mixed per manufacturer instructions.
3. Epoxy is applied to:
   • The vane root (trailing edge) with a small brush or applicator.
   • The vane mid-span.
   • Sometimes the shaft surface (light coating).
4. Vane is pressed into clamps; clamps are tightened to recommended pressure.
5. Excess epoxy is wiped away using a cloth holder (Cleanup Cloth Mount).
6. Arrow is left in jig for full cure time (4–8 hours, depending on epoxy formulation).

Epoxy selection:

• 5-minute epoxy: Quick-setting; allows rapid vane bonding but less worktime for alignment correction.
• 15-minute epoxy: Standard for fletching; enough time to adjust vane position if misaligned, full cure in 4 hours.
• 30-minute epoxy: Slow-setting; gives experienced fletchiers maximum flexibility but requires extended jig occupation.

Adhesive strength:

• Proper epoxy bonds create shear strength > 1,000 psi at the vane–shaft interface.
• In-flight vibration induces lateral shear stress on vanes ≈ 50–100 psi (well within epoxy strength).
• Vanes rarely fail from adhesive disbond if epoxied properly; separation is usually due to impact damage.

Vane Types & Compatibility

Different vane materials require slight adjustments:

Plastic Vanes

Material: Polyethylene or polypropylene, 0.015–0.025 inch thick. Advantages: Durable, consistent shape, low cost ($0.50–1.00 per vane). Disadvantages: Slightly stiffer, more mass than feathers. Jig settings: Standard clamp pressure (2–4 lbs), room-temperature cure fine.

Feather Vanes

Material: Natural turkey or goose feathers, splitting off a central quill. Advantages: Lower mass (faster arrows), traditional aesthetic, slightly better aerodynamics. Disadvantages: Fragile, inconsistent shape, require more careful handling, moisture-sensitive (absorb humidity, changing stiffness). Jig settings: Reduced clamp pressure (1–2 lbs), slower epoxy (15–30 minute), shield from humidity during cure.

Most modern jigs are designed for plastic vanes; feather fletchiers often use hand gluing or traditional vane holders.

Quality Control & Tuning

Once fletchings are cured, an arrow can be tuned:

Paper tuning:

• Arrow is shot through a sheet of butcher paper hung 8 feet downrange.
• The tear pattern indicates alignment:
  • Round hole: Perfect alignment.
  • Horizontal tear: Vane height inconsistency.
  • Vertical tear: Vane axial misalignment.
  • Spiraling tear: Vane twist or spine mismatch.

Grouping test:

• Arrow is shot 20 yards into a target at 10-second intervals (minimizing shooter input variation).
• Bullet-hole groups (2–3 inch spread) indicate excellent fletching.
• Groups > 6 inches suggest misalignment or other issues.

Poor jig alignment typically results in 4–8 inch scatter at 20 yards; good jig alignment yields 2–3 inch groups with average shooters.

DIY vs. Professional Fletching

Aspect	Hand Gluing	Simple Jig ($30–50)	Precision Jig ($150–300)	Commercial Factory
Angular Accuracy	±10–20°	±3–5°	±1–2°	±0.5°
Repeatability	Poor (operator-dependent)	Good	Excellent	Excellent
Throughput	3–5 arrows/day	8–12 arrows/day	15–20 arrows/day	100+ arrows/day
Cost/Arrow	$0.50 (labor only)	$0.30 (amortized jig)	$0.20 (amortized jig)	$0.05–0.10
Accuracy Impact	4–8″ scatter at 20y	2–4″ scatter	2–3″ scatter (shooter-limited)	1–2″ scatter

Hand gluing is tedious but functional for occasional one-off arrows. A $30–50 jig pays for itself after fletching 50–100 arrows. Professionals invest in $300+ jigs with dial indicators and bushing receivers for maximum consistency.

Maintenance & Care

Simple jigs require minimal maintenance:

Regular care:

• Wipe excess epoxy or glue residue after each use (dried epoxy is difficult to remove).
• Inspect clamp surfaces (soft padding wears; replace felt pads if compressed >0.5 inch).
• Check spring tension (if clamps become too loose, replace springs).
• Verify wheel detents function smoothly (clean debris, lubricate pivot if stiff).

Lifespan: Budget jigs last 5–10 years; precision jigs 15–25 years. Main wear item is the soft clamp padding, replaceable at ~$5–10 per pair.

Storage: Keep jig in a dry location (moisture can warp the base and affect alignment). Store in a box to prevent dust accumulation in moving parts.

Workflow Example

Fletching 12 arrows in one day (using a single simple jig):

• 8:00 AM: Prepare workspace, gather vanes, epoxy, jig, and 12 arrow shafts (pre-flighted with 1–2 vanes each, ready for final third vane).
• 8:30 AM – 12:00 PM: Fletch first 4 arrows (3 hours, 45 minutes setup + glue + cure, jig can be reused after 4 hours, but work on other arrows in parallel).
• 12:30 PM – 2:00 PM: Fletch arrows 5–8 (parallel, while arrows 1–4 cure in background).
• 2:30 PM – 4:00 PM: Fletch arrows 9–12, cleanup.

With three independent jigs, the entire batch cures simultaneously, reducing total time to ~6–8 hours including cleanup. Professional shops using semi-automated jigs with electric clamps and timer-controlled release can produce 100+ arrows per day.

Comparison to Alternative Fletching Methods

Method	Speed	Accuracy	Cost	Skill Required
Hand gluing (no jig)	Very slow (5+ min/vane)	Poor (±15°)	$0	High (experience critical)
Budget jig	Slow (3–5 min/vane)	Good (±5°)	$30–50	Low–moderate
Precision jig	Moderate (2–3 min/vane)	Excellent (±1–2°)	$150–300	Low
Commercial factory	Very fast (30 sec/arrow)	Perfect (±0.5°)	N/A (bulk order)	N/A

For enthusiasts, a $30–50 budget jig transforms fletching from a frustrating weekend project into a 20-minute task with professional results.
