Gaming Chair Product

Overview

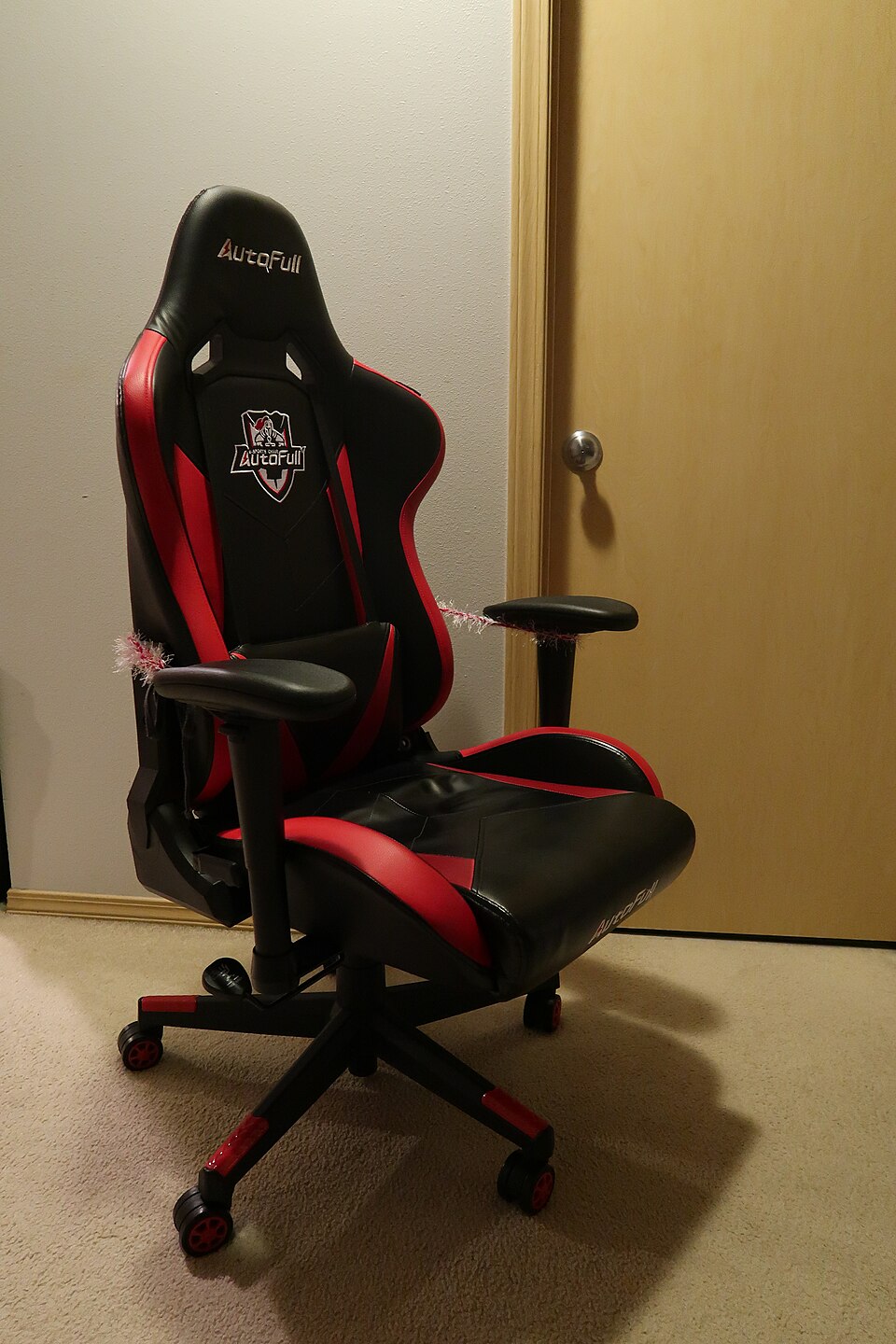

A gaming chair is an office swivel chair styled after an automotive racing seat: a tall Backrest Assembly with shoulder wings, a bolstered Seat Assembly, and harness pass-through slots that in this application hold the straps of the Cushion Set. Mechanically it is conventional task seating — a tilt mechanism on a gas column on a five-star base — wrapped in molded foam and sewn covers. The format emerged in the late 2000s when racing-seat manufacturers (DXRacer being the first mover, in 2006) adapted automotive shells to office bases.

The load path runs from the occupant through the Seat Steel Frame and Seat Base Plate, into the Tilt Mechanism, down the Gas Lift Column, and out through the Five-Star Base into five castors. Each interface uses an industry-standard fitting, which is why cylinders, bases, and castors interchange between brands.

How it works

Height adjustment is pneumatic. The Gas Cylinder Cartridge is a sealed cartridge charged with nitrogen at roughly 60–80 bar. Pulling the Height Lever presses a valve pin that opens a passage between the two gas volumes separated by the piston. Because the piston rod occupies area on only one side, gas pressure produces a net upward force of about 250–350 N; with the valve open, the seat rises if unloaded and sinks if the occupant's weight exceeds the gas force. Releasing the lever closes the valve and locks the height. An Oil Seal around the rod retains the charge, and a small oil volume damps the end of travel. "Class 4" refers to the EN 1335 / DIN 4550 wall-thickness class, the heaviest commonly fitted. The column rides in the Column Bearing Kit, whose thrust bearing lets the whole chair swivel freely under full load.

The cylinder's tapered top self-locks by friction into the Tilt Housing, a Morse-taper-style fit that needs no fastener; the matching taper at the bottom seats into the Hub Insert of the base. The Base Star spans about 700 mm so the tipping circle stays outside the seated center of gravity even at full recline; BIFMA X5.1 tests the star at 1136 kg static load. Each Castor Wheel is a twin-wheel design whose offset between stem axis and wheel axle makes it self-align with travel direction.

Tilt and recline

Gaming chairs separate two motions that ordinary task chairs often merge. The center-tilt Tilt Mechanism rocks the entire seat-and-back unit about the Tilt Pivot Shaft, resisted by the Tilt Tension Spring; the Tension Adjustment Knob preloads this spring to match occupant weight, and the Tilt Lock Lever pawls the mechanism rigid. Travel is modest, around ±12 degrees.

Independent of tilt, the Recline System sets the backrest angle. Two toothed Recliner Hinge Plate plates — the same fittings used in car seats — connect the Backrest Steel Frame to the seat frame. Squeezing the Recline Release Lever lifts the ratchet pawls (the Hinge Sync Rod forces both sides to release together) and the back can be set anywhere from 90 degrees upright to about 160 degrees, with internal Coil Springs returning it against the occupant. The near-flat range is the feature that distinguishes the category from most office chairs, whose synchro mechanisms rarely exceed 25 degrees of back movement.

Foam, frames, and upholstery

Both shells are built the same way: a welded steel skeleton (Seat Steel Frame, Backrest Steel Frame) over-molded or hand-fitted with cold-cured polyurethane foam (Molded Seat Foam, Molded Back Foam) at 50–60 kg/m³ — denser than the 25–35 kg/m³ slabstock in budget seating, which is why the bolstered shape holds its form. The sewn Seat Upholstery Cover and Backrest Cover are usually PVC or PU leatherette chosen for embroidery and easy cleaning, with fabric and mesh variants for better breathability. Plastic Recliner Side Caps hide the recliner plates.

The Armrest Pair bolts to the seat frame through steel Armrest Brackets. A "4D" arm stacks four adjustments: the ratcheting Armrest Riser gives 60–80 mm of height in 8–10 detents, and the Armrest Slider Carriage carriage under the Armrest Top Pad adds fore-aft, lateral, and pivot movement. Armrests are the most common warranty failure because the riser ratchets are plastic and see prying loads when users push up from the chair.

A typical unit ships flat-packed at 20–25 kg, assembles with eight to ten M8 bolts from the included Fastener Set, and is rated for occupants of 120–150 kg under BIFMA X5.1 cyclic testing.
